Summary of Contents for Eco-Led Solar LED Lithium Light Kit

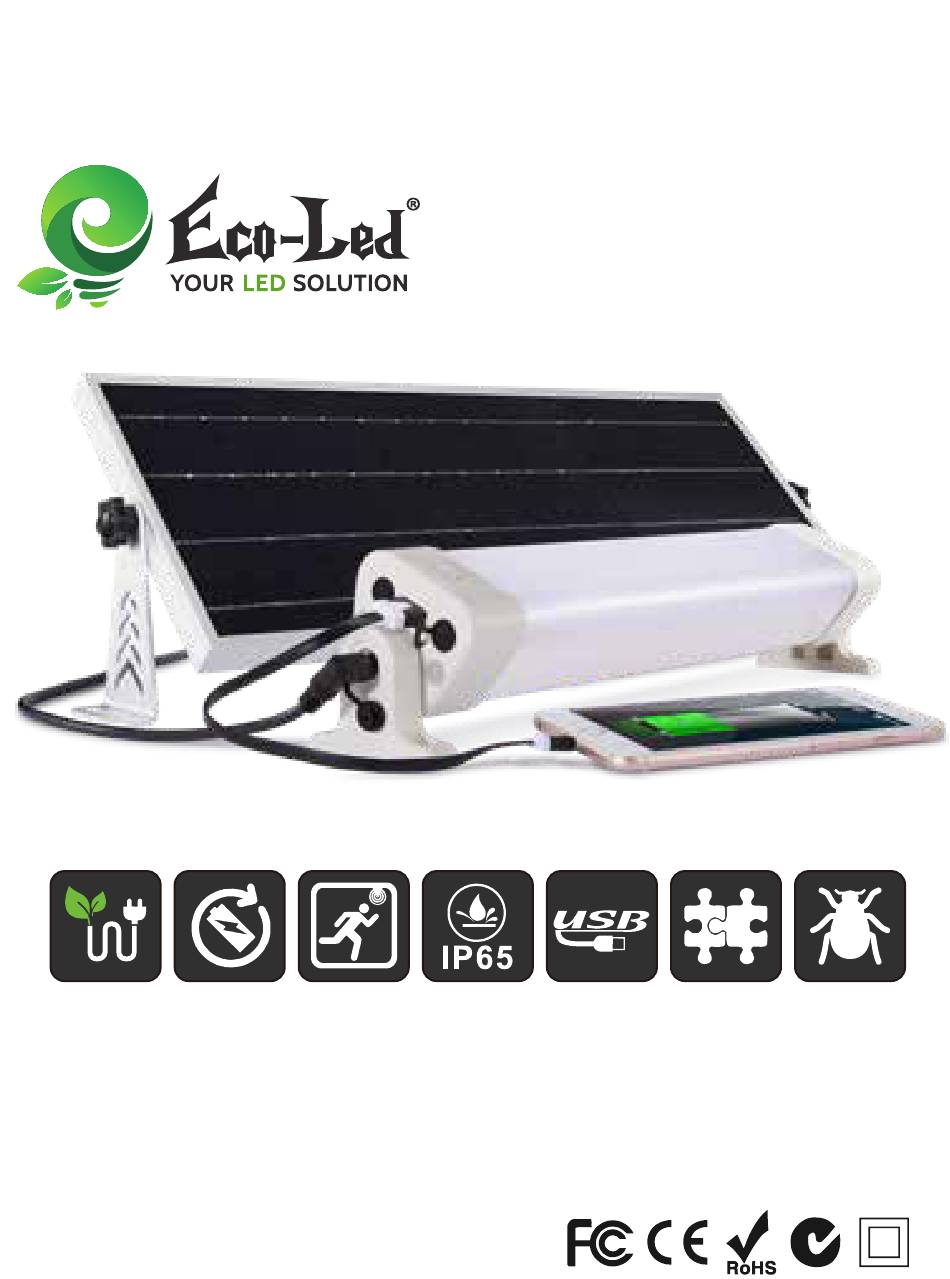

- Page 1 USER MANUAL Solar LED Lithium Light Kit Solar LED Batten Light Kits Non contractual photo 100% Green Rechargeable PIR Motion IP65 Rated 5V USB Integrated Bugs Energy Lithium Battery Sensor Waterproof Charge Design Free Version : A20181106...
- Page 2 WHAT IS IT? Solar led batten light is the pioneer model comparing with the normal solar powered tube light, widely used in many applications, such as office, home, garage, caravan, carports, bus stations, warehouses, camping tents, kinds of shelves, farm tents, sideways, emergency camps, aid tents, temporary or permanent caves, or any kinds of sheds of paths, etc. Solar led batten light is a kit that contains everything, like rechargeable lithium battery, solar controller, solar panel.
-
Page 3: Connection Diagram
ACCESSORIES Push Button ( 100% Power----> 50% Power -------> 30%+Sensor 100% -----> OFF) USB 5V 1A Output. ( To charge mobile or other device.) DC input connector to connect to plug to wall switch. DC input for charge connector for solar panel 6V input. (Warning : Do not use other device or solar panel to charge.） Motion Sensor ( Two options on remote, 0% + 100% for 24 hours, 30% +100 for 12 hours ) Wall Switch for extension control. -
Page 4: Wall Switch
WALL SWITCH Wall Switch is a very useful components in this kit, You can use this wonderful solar light fixture in the same way of using a 220V normal light. 1st push : 100% Power 2nd push : 50% Power 3nd push : 30% when nobody there and go to 100% power when sensor is triggered 4th push : Light Off. -
Page 5: Installation
Remark 1. When installation is completed, The batten light will start to work under automatic mode as default setting.. 2. There is manual mode optional which support light to work at day time. Under manual mode, light will turn off after 12 hours if not turn off by hand. 3. - Page 6 HOW TO REPLACE BATTERY 1. Remove the bracket from the 2 : Use clips or small tools to take 3 : Use 3mm Inner hexagon spanner side where there are no buttons out the two silicone plugs. to loose and remove the two screws. 4 : Seperate the end cap from tube 5 : Hold the battery cable and take it 6 : Disconnect the DC connectors...
