Filtercorp LS-1 Series User Manual

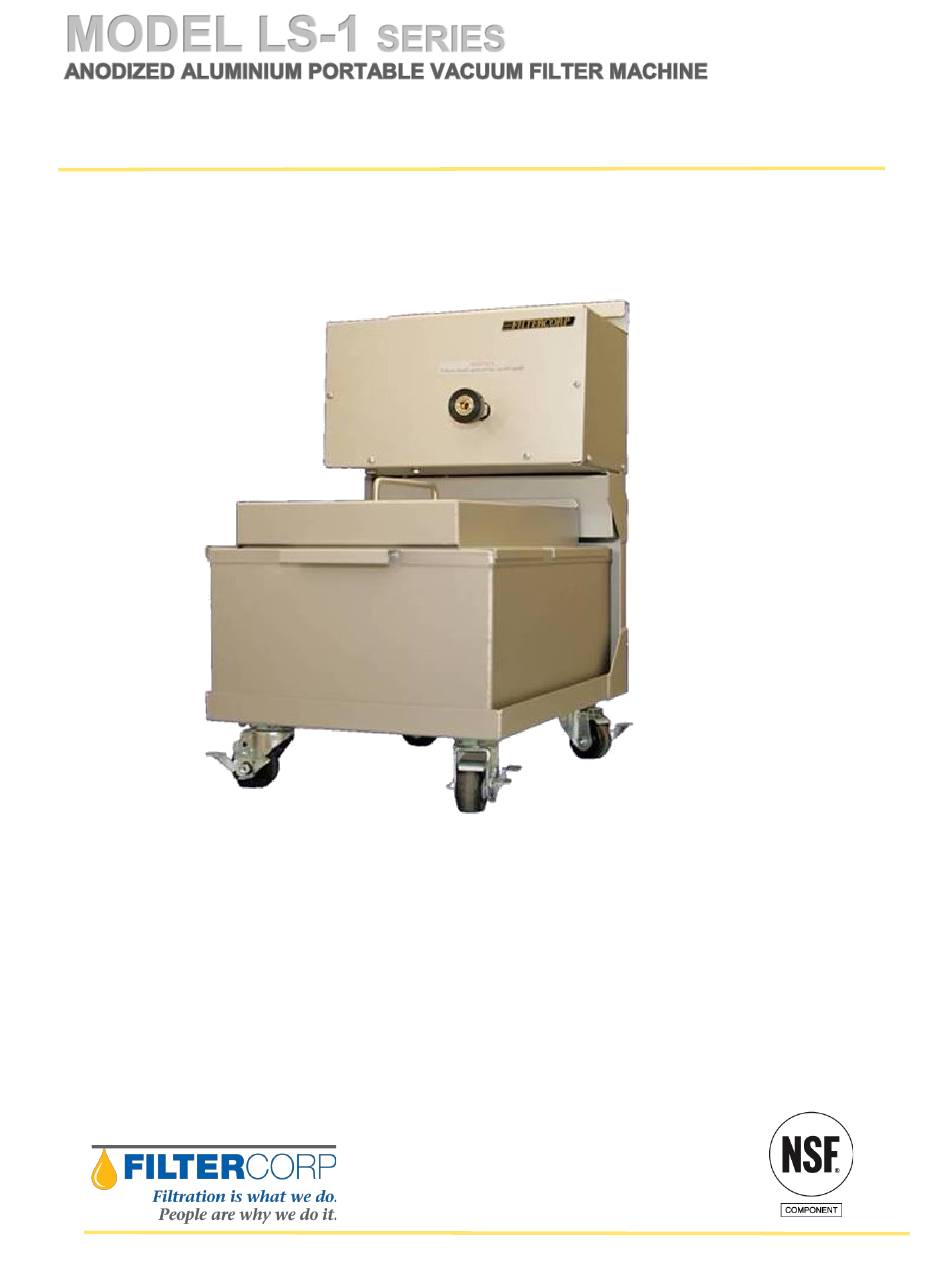

Nodized aluminium portable vacuum filter machine
Hide thumbs

Advertisement

Quick Links

Download this manual
Getting the most out of your frying program
FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM
USER MANUAL
Anodized Aluminum
MODELS:
Retain this manual for future reference.
LS-1-60
LS-1-100

Advertisement

loading
Need help?

Need help?

Do you have a question about the LS-1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Filtercorp LS-1 Series

  • Page 1 Getting the most out of your frying program USER MANUAL Anodized Aluminum MODELS: LS-1-60 LS-1-100 Retain this manual for future reference. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 2 Warranty Registration Page 15 Note to Service Technicians Page 16 Wiring Diagram Page 17 Pump Installation View Page 18 Parts Listings Page 19-22 FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 3 Our Customer Service number is (800)473-4526, and we are available 8:00 am (pst) to 4:00 pm (pst). Sincerely, Pius Eigenmann President Filtrox North America FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 4 If, during this warranty period, the customer uses this equipment for purpos- es other than to filter cooking oil, this warranty will be void. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 5 Filtercorp’s uniquely designed stainless nozzle is designed to reduce splashing while providing a spray that helps in washing the walls of the fryer during filtering. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...

  • Page 6: Product Safety

    WARNING – This ground is to protect the operator from electrical shock in the event of an equipment malfunction. DO NOT remove or tamper with the ground feature! FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 7 7. As the cooking oil is filtered through the SuperSorb CarbonPad and returned to the fryer, use the nozzle with returning oil to wash down the sides of the fryer. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 8 Clean the inside of the pan and wipe dry. CAUTION—During cleaning • DO NOT pump water with the filter pump. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 9 4. Have a manager or a trained person make the discard decision 5. If possible, have the same person make all discard decisions. FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816 WWW.FILTERCORP.COM...
  • Page 10 Dimensions for LS-1-60 Weight 64 Lbs. Overall Dimensions 16.75” wide x 23.75” deep x 27.25” high Pan Height 11.75” Total Pan Capacity 1.63 cubic feet or 12.1 gallons Oil Capacity 60 Lbs. of oil or 7.7 gallons Pump/Motor Viking Hot Oil Hub Mount Pump, Capacity: 4.6 GPM at 1725 RPM, 1/3 HP, Capacitor Start, Dual Gear, Positive Displacement Pump, 115 volt, 6.2 Amperes, 50/60-Cycle Motor, Manual Ther- mal Overload...
  • Page 11 LS-1-60 27.25” 12.5” 23.75” 16.75” FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816...
  • Page 12 LS-1-100 27.50” 12.5” 33.5” 16.75” FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816...
  • Page 13 PROBLEM POSSIBLE CAUSE SOLUTION Unit will not turn on A) Power cord is not plugged in A) Check both filter connection and power outlet B) Power Breaker is tripped B) Check to ensure the power outlet breaker in your building is on and hasn’t been tripped C) Motor is overloaded C) Let motor cool down.
  • Page 14 Warranty Registration for Filtercorp LS-1 Series Portable Filter Model Number: Serial Number: Store Name: Store Number: Address: City: State: Zip: Telephone: Date of Purchase: Dealer or Rep Purchased From: Dealer Invoice Number: IMPORTANT! Please complete the Warranty Registration and return to Filtrox North America dba Filtercorp.
  • Page 15 ORIGINAL EQUIPMENT WARRANTY Filtercorp warrants its new product(s) to be free from defects in material and workmanship for a period of the lesser of: (i) two (2) years from date of original installation, or (ii) thirty (30) months from the date of shipment from the factory, provided that proof of installation date is supplied to Filtercorp prior to work be- ing performed.
  • Page 16 This manual is not a stand alone document. You must read and become familiar with the content of the User Manual and Instruction sheet (LS-1 Portable Filter Procedures) to effectively troubleshoot and repair this equipment. 1. The pump operates, but does not pump oil. This is often diagnosed as a bad pump but usually is caused by a block or crimp in the pick-up hose.
  • Page 17 FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816...
  • Page 18 FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816...

  • Page 19: Parts Listing

    Parts Listing Item Description Part Number 848-04 2.5”Caster (Swivel with Brake), Aluminum Units 2” Rear Caster (Swivel with Brake) 845-01AL Filter Base/Frame (LS-1-60) No Longer Available Filter Base/Frame (LS-1-85) 846-07 Filter Base/Frame(LS-1-100) 2” Front Caster (Rigid) 1005 8” Standard Safety Handle 1063 7”...
  • Page 20 Parts Listing Item Description Part Number Identification Plate 847-08 Cord Wrap Electrical Power Cord—12 ft., 110 volt, 3 prong 847-62Kit Receptacle—Female 847-01 On-Off Switch 847-07 Rear Panel 847-09 Reset Button Cover 847-06 Front Cover FILTROX NORTH AMERICA · 5506 6TH AVE S. SUITE 107 SEATTLE WA 98108 · 425-820-4850 FAX 425-820-2816...
  • Page 21 Parts Listing Item Description Part Number 845-05AL 60# Bucket/Pan (LS-1-60) 846-09 100# Bucket/Pan (LS-1-100) 845-02AL Bucket Cover (LS-1-60) 846-08 Bucket Cover (LS-1-100) 855-AL 48” Drain Hose 62” Drain Hose 856XW Nozzle Handle Hand Nozzle w/Shower Spray 856AL Hand Nozzle w/Shower Spray AL FILTROX NORTH AMERICA ·...
  • Page 22 Parts Listing Item Description Part Number Elbow—galv. 1/2”, 90 degree elbow, NPT Pipe Nipple—galv., 3/8” x 7”, NPT Pipe Elbow—galv., 1/2”, 90 degree street elbow, NPT 850PM Pump/Motor Assembly—S23C, 110 volts, 60 cycle 850A Pump rebuild kit 850PP Pump only 850M Motor only Pipe Nipple—galv., 3/8”...
