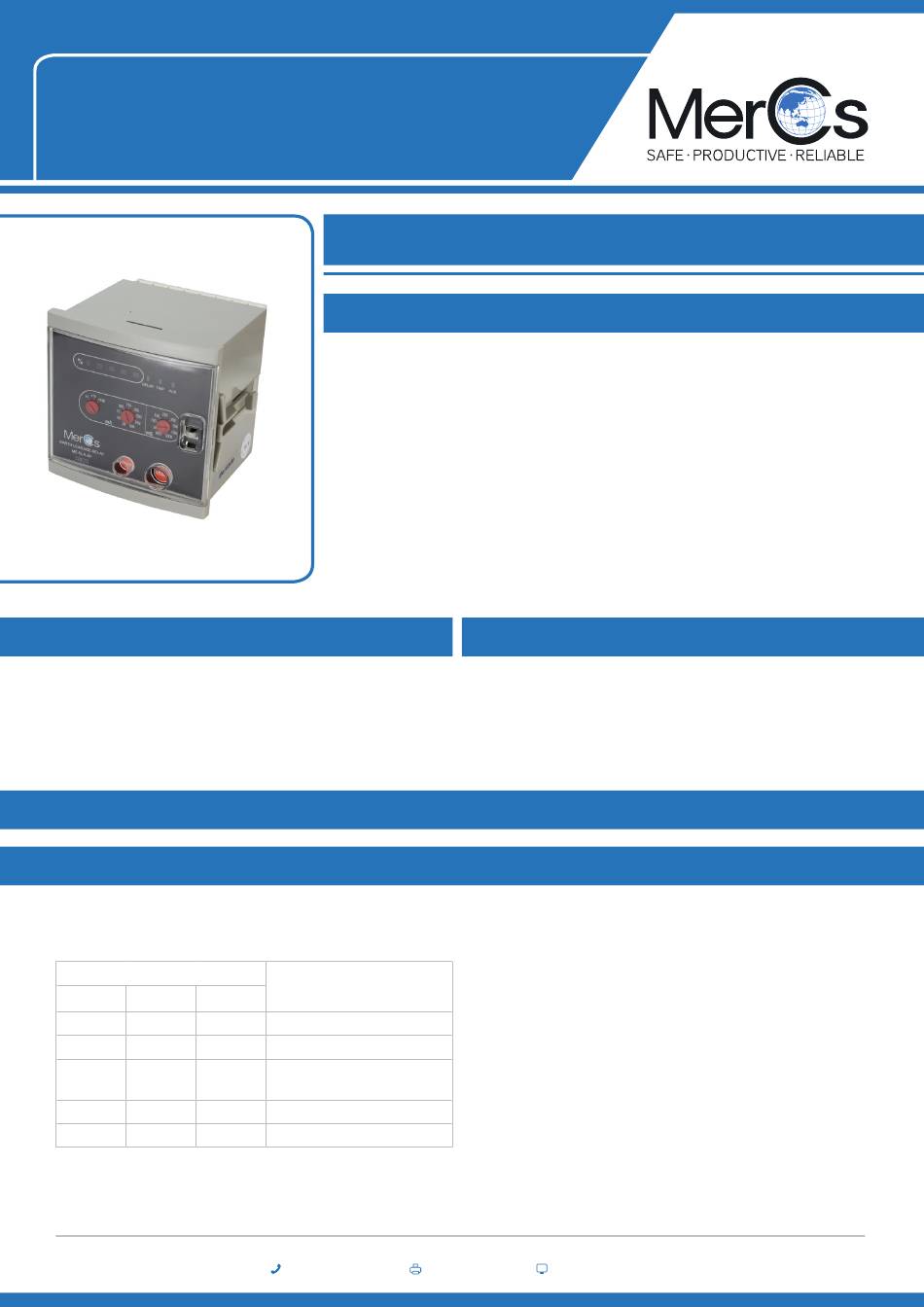

MerCs ME-ELF-AF User Manual

Earth Leakage Relay
ME-ELF-AF
Applications
•
Industrial equipment protection
•
Personnel protection from Earth Leakage faults
•
Suitable for low voltage distribution protection
Technical Data
Light Indicators
The light indicators display the status of the system
(i) Status indicators
Indicator
AUX TRIP DELAY
Off Off Off
On Off Off
On Off On
On On Off
On On Blink
User Manual
Features
•
Adjustable sensitivity
•
Adjustable time delay
•
LED Status indicators
•
Leakage current indication
•
Remote test and reset switching
•
DIN rail mounting
•
Current measurement based on fundamental frequency, prevents nuisance tripping
•
Dial adjustment for ease of use
•
Robust casing protects the unit from external interference
Status
No auxiliary power supply
System normal, no tripping
Trip start, time delay count-
down started
Earth leakage tripped
ME-T not connected
MerCs Pty Ltd, 55 Pendlebury Rd, Cardiff, NSW, 2285, Australia | 2018 V1.1
02 4047 0777 02 4047 0788
Description
The MerCs ELR series of earth leakage relays ensures the protection of
electrical installations and persons against direct and indirect contacts.
The ME-ELR-AD model provides real-time leakage current display and
has a 50% pre-fault contact.
(ii) Leakage indicators
The earth leakage indicators indicate the amount of leakage
current detected and are expressed as percentage of the set
current.
•
10% - leakage current ≥ 10% of set current
•
20% - leakage current ≥ 20% of set current
•
40% - leakage current ≥ 40% of set current
•
60% - leakage current ≥ 60% of set current
•
80% - leakage current ≥ 80% of set current
www.mercs.com.au
