Kinytech DeerTV Outdoor TV Enclosure Installation Manual

Aluminum type

Hide thumbs

Table Of Contents

Outdoor TV Enclosure Installation

you are expecting your TV enclosure to reach

Prepare Tools.

⚫

Phillips screwdriver

⚫

Hexagon screwdriver

⚫

Universal TV mount bracket (Normal home TV bracket)

⚫

Scissors and utility knife

⚫

Silicone sealant (glass glue)

⚫

Glass Or acrylic (If you have not choose it)

Parts List.

Name

M6*50 and M6*20 Screws

Thick pad washers,10/15/20mm

M4*5 thumb screws

M4 flange nuts

M8*16 screws

Aluminum Type

Description

For TV VESA

For rear housing

For front door

For Enclosure VESA hole

The Weatherproof TV enclosure which

supports the 95% popular TV size. Available for

outdoor and indoor, the outdoor TV cabinets

are specially built to filter and cool ambient air,

expel internal heat, which ensures your TV

working for a long time within a safe and

optimal environment. Read home Theater

article for any comprehensive having a look at

airborne contaminates of your house and what

this will likely caused by your TV system. There

are a few tips we could present you from the

very beginning that may help you with one of

these as well as other common problems as

Quantity

5 / type

DeerTV- Kinytech


Table of Contents

Need help?

Do you have a question about the DeerTV Outdoor TV Enclosure and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinytech DeerTV Outdoor TV Enclosure

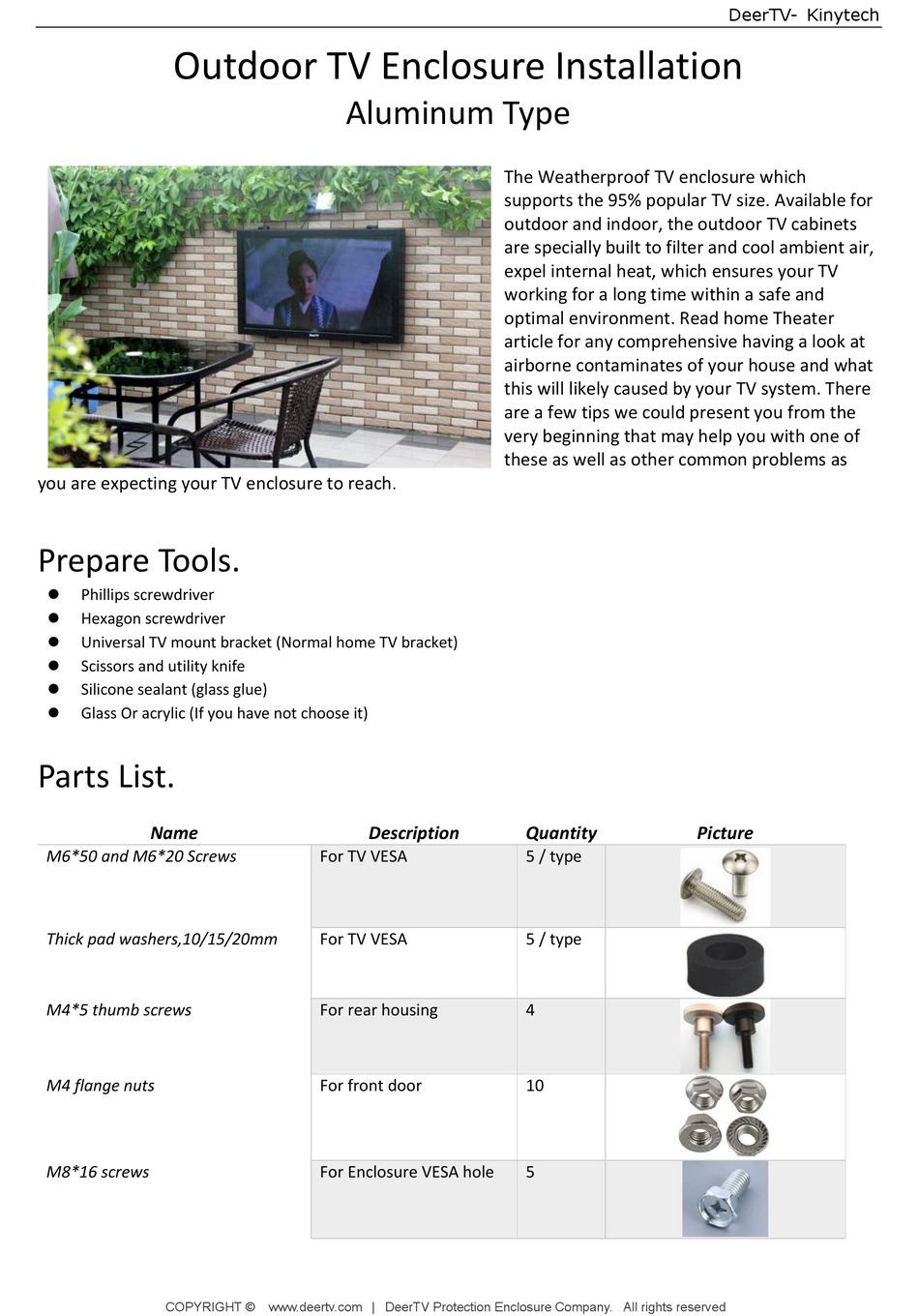

Page 1 DeerTV- Kinytech Outdoor TV Enclosure Installation Aluminum Type The Weatherproof TV enclosure which supports the 95% popular TV size. Available for outdoor and indoor, the outdoor TV cabinets are specially built to filter and cool ambient air, expel internal heat, which ensures your TV working for a long time within a safe and optimal environment.
Page 2 DeerTV- Kinytech Silicone sealant For acrylic and gap M4 Socket wrench For M4 nuts Lock cleats Optional key locks Install Front Enclosure 1. Check all accessories. 2. Prepare the glass. (If you have chosen the optional glass/acrylic, please ignore this step) 43”...
Page 3 DeerTV- Kinytech 4. Remove the 3M Double-sided adhesive protective film on the front enclosure. 5. Install the glass/acrylic from this direction. 6. Add silicone sealant to the glass/acrylic edge area and all gap area, to ensure it is complete waterproof.
Page 4 DeerTV- Kinytech Install TV 1. Calculate the middle point of the TV height and mark it. (For example, our TV is 55cm in height and its middle position is 27.5cm) 2. Install the Mount arm for the TV, ensure the center point is near the TV middle position.
Page 5 DeerTV- Kinytech Install Rear Enclosure 1. Install the Universal TV mount to the wall. (You can use any home TV mount, for this bracket, we do not supply it, please prepare it youself). 2. Install the mount ARM for the rear enclosure.
Page 6 DeerTV- Kinytech Assembly together. 1. Connect all cables: AC cable, the USB cooling fan cable connected to the TV USB port. Mount TV on the rear enclosure. 2. Adjust the TV position horizontally to center the TV. Mount the front enclosure to the rear enclosure.
Page 7 DeerTV- Kinytech 4. Finished, turn on the TV, enjoy your favorite TV programs. Thank you very much for choosing DeerTV products. Best wishes to you and your family. Optional lock pins (Not necessary). Not necessary for home use, only recommend add it for public places Drill an M4 size hole at the cables outlet of the front and rear TV enclosure position.
