Summary of Contents for Road Top CarPlay Smart Link System

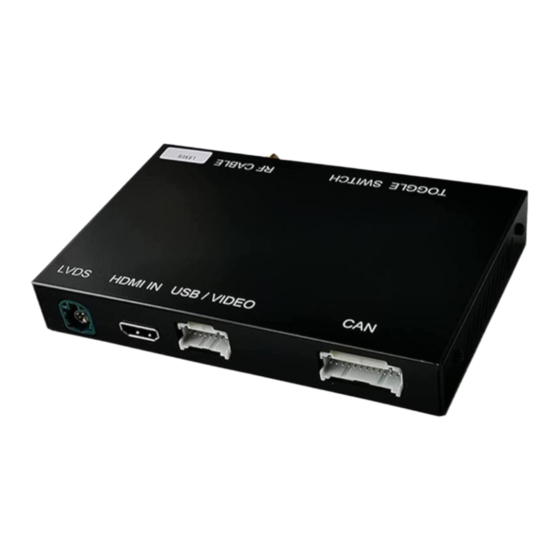

- Page 1 Road Top User Manual CarPlay Smart Link System For Remote Touch Version Road Top Co., Ltd...
-
Page 2: Table Of Contents
Contents About Road Top ............................. 1 Product Introduction ............................ 1 Product Installation ............................2 Cables Connection ............................2 Toggle Switch Setup ............................ 6 CarPlay Decoder Interface & Sound Setup ..................8 Function Setting ............................10 Wired CarPlay Connection....................10 Wireless CarPlay Connection ..................... -
Page 3: About Road Top
Keep your Lexus enjoying the Top-level entertainment on the way. Road Top will be with you to enjoy the fun of Lexus driving. 2. Product Introduction This amazing kit adds full CarPlay &... -
Page 4: Product Installation
Road Top User Manual 3. Product Installation We will provide installation guidance videos. Please scan below QR code, directly enter into Road Top YouTube installation guidance video for Lexus. For NX For ES 4. Cables Connection 2 / 23... - Page 5 Road Top User Manual 1---- connect to the screen LVDS port 2---- connect to the head unit host LVDS cable 3----connect to head unit host 4----connect to head unit host 5----connect to OEM power cable female 6---- connect to OEM power cable female...
- Page 6 Road Top User Manual About the Screen Power Cable connection: For Lexus cars with 7” or 8” screen with rotary knob control and touchpad control, after finish the installation of the decoder, if the screen flash, you need to connect this screen power cable.
- Page 7 Road Top User Manual For car with rotary knob, in the screen power cable, small connectors with green color wires, need to be connected. small connectors with gray color wires, don’t need to be connected. As showed below. For car with touch pad, all the small connectors need to be connected. As showed below.
-
Page 8: Toggle Switch Setup
Road Top User Manual 5. Toggle Switch Setup 5.1 Toggle switch solution for Lexus with Rotary Knob control （with 4 buttons） If your Lexus knob control is with 4 buttons as showed below, the toggle switch solution is in the below table. - Page 9 Road Top User Manual 5.3 Toggle switch solution for Lexus with Remote Touch control 5.3.1 for Lexus cars with Remote touch control and with 12.3” screen 5.3.2 for Lexus cars with Remote touch control, with clock on the 12.3” screen...
-
Page 10: Carplay Decoder Interface & Sound Setup
Road Top User Manual 5.3.3 for Lexus cars with Remote touch control and with 10.25” screen 6. CarPlay Decoder Interface & Sound Setup 6.1 Sound setting When using the CarPlay system, need to keep original multimedia system into AUX interface, the CarPlay system will have sound. - Page 11 Road Top User Manual Decoder main interface shown 9 / 23...
-
Page 12: Function Setting
Step 3: Choose by Bluetooth or by USB ( Siri function will use your car voice button on steering wheel control ) Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wired CarPlay. -
Page 13: Wireless Carplay Connection
Road Top User Manual Wireless CarPlay Connection Step 1: Open the iPhone WiFi Step 2: Open the iPhone Bluetooth Step 3: Search the Bluetooth of CarPlay decoder Step 4: Pair the Bluetooth Step 5: Allow the sync Step 6: Use CarPlay Step 7: CarPlay logo appear on the screen Step 8: Use the CarPlay. -
Page 14: Wireless Airplay Connection
Road Top User Manual Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wireless CarPlay. Wireless AirPlay Connection Here will appear the prompt below after clicking AirPlay option in the main menu. - Page 15 88888888，slide up from the lower part of the Iphone screen and select AirPlay in the menu option to finish the wireless AirPlay connection. Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wireless AirPlay.
-
Page 16: Wired Android Auto Link Connection
Please make sure to connect your android phone USB cable to USB cable of CarPlay decoder, as showed in step 3. Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wired Autolink. -
Page 17: Wired Android Auto Connection
Please make sure to connect your android phone USB cable to USB cable of CarPlay decoder, as showed in step 3. Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wired Android Auto. -
Page 18: Wireless Android Auto Connection
Road Top User Manual Wireless Android Auto Connection Before use the wireless android auto function, please make sure your android phone support wireless android auto function. Up to now, there are Samsung and Google mobile phone support wireless android auto, the detail mobile models are showed as below, Samsung S8, S9, S10, Note 8, Note 9, Note 10 (Android system require Android 9 or above, Android Auto software require 4.7 version or above). - Page 19 Road Top User Manual Please scan the QR code, directly enter into Road Top YouTube video guide on how to connect the wireless Android Auto. 17 / 23...
-
Page 20: Usb / Media
Road Top User Manual USB / Media Insert the USB flash drive into the USB port and click the USB icon in the main menu. The system will play it automatically. Camera / AV-in 1) Aftermarket Rear View Camera & front view camera connection After finish the aftermarket camera connection, you need to set the camera. -
Page 21: 360 Surround View Camera Setting
Road Top User Manual 2) DVR connection 7.9 360 surround view camera setting 7.9.1 Setting for Original 360 surround view camera: click the “Setting” button from the decoder main menu, choose “Reverse”, then do the settings as follow, choose “Original”... - Page 22 Road Top User Manual 7.9.1 Setting for Aftermarket 360 surround view camera CAN power cables connection order: Head unit --360 main host—CarPlay LVDS cables connection order: Screen—CarPlay—360 LVDS—Head unit 1) For the All-in-on 360 camera ( 360 Decoder and 360 main host in one box) choose “Original”...
- Page 23 Road Top User Manual The setting is as follows choose “Original” Reverse camera choose “On” Reverse line detect choose “Off” Reverse display track choose “Off” Reverse display radar choose “High” Reverse match original choose “Off” Match 360 display 21 / 23...
-
Page 24: Setting
Road Top User Manual 7.10 Setting Items Parameter Default setting Language English, Italian, Spanish, Turkish, etc. English Display Brightness, Contrast, Saturation, Hue Brightness, etc. Volume Standard Loudness Mic Echo PreConfig Default Microphone Volume Audio Microphone preamp (OP) Microphone preamp (PGA) -
Page 25: Hot Line Of Post Sales Engineer
Road Top User Manual a) Hot Line of Post Sales Engineer Please contact us via purchase platform if you need any help. 23 / 23...
