INTRODUCTION:
This LED Lamp with three switch control is a very simple LED lamp kit. This intermediate level
soldering kit features 32 super bright white LEDs, 16 resistors, a diode, and three switches. The user can
turn on the LEDs in three different ways using the control switches. In addition, the LED lamp kit can
be used in a practical way as a flashlight or night light. All component parts are included with the kit.
A 9V battery is required, optional 9V/400mA wall adapter available. (Not included)
TOOLS/EQUIPMENT NEEDED:
1. Solder iron/stand – Recommended solder iron:
• RSR High Performance 3-wire iron w/conical tip
(060509)
• Stand w/sponge (060841)
2. Soldering station - Recommended soldering
station:
• RSR Economy Model w/conical tip (0603ZD98)
3. 60/40 solder or unleaded solder
4. Desolder pump
5. Wire Cutter
OPTIONAL ITEMS (RECOMMENDED):
6. RSR Fume Extractor or economy model
smoke/fume absorber (0608426DLX,
0608ZD153)
7. RSR Helping Hand complete set (060834)

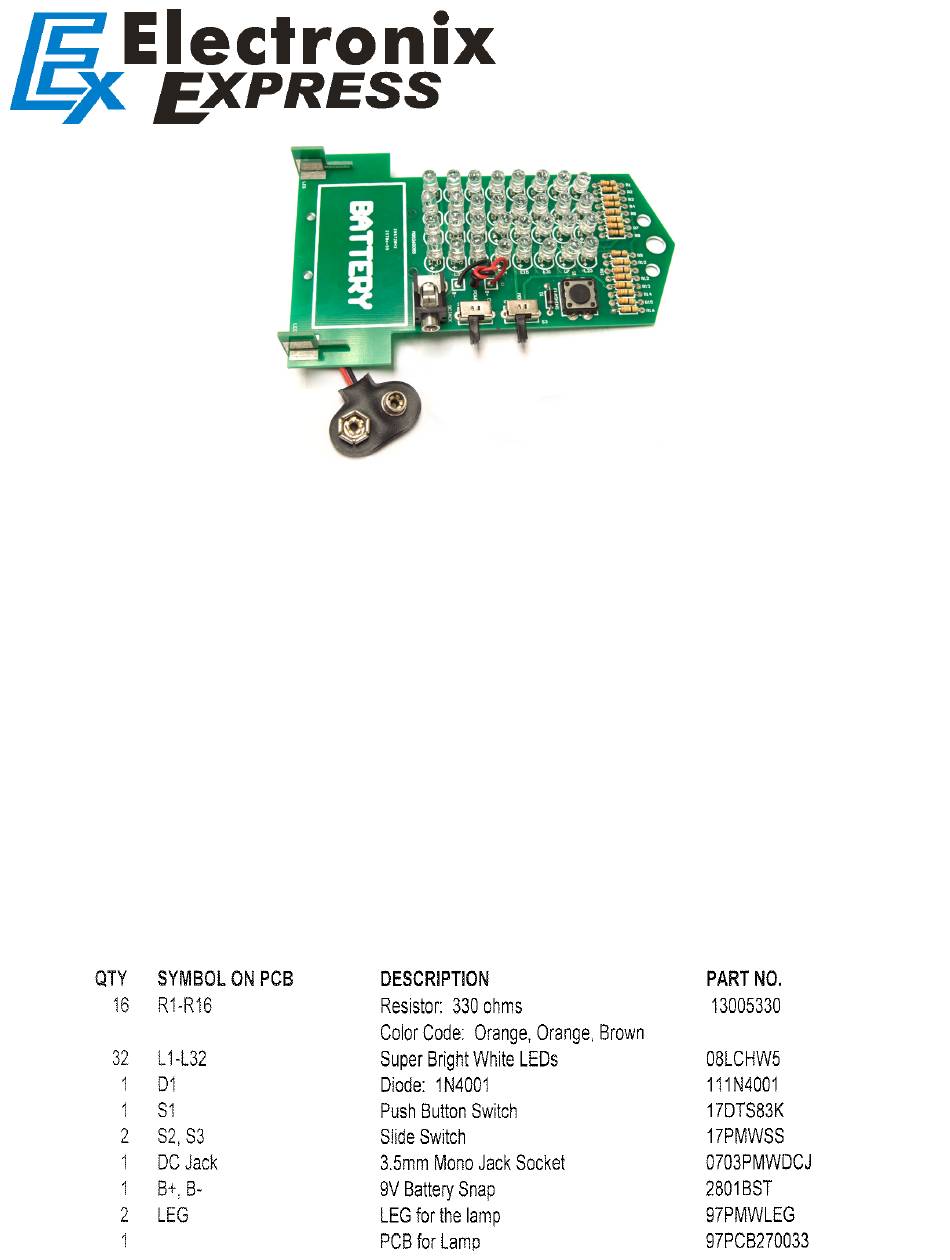

PARTS LIST
Part No.: 32PMW270033
RSR LED LAMP WITH THREE
CONTROL
Advertisement
Table of Contents
Summary of Contents for Electronix Express 32PMW270033
- Page 1 Part No.: 32PMW270033 RSR LED LAMP WITH THREE CONTROL INTRODUCTION: This LED Lamp with three switch control is a very simple LED lamp kit. This intermediate level soldering kit features 32 super bright white LEDs, 16 resistors, a diode, and three switches. The user can turn on the LEDs in three different ways using the control switches.
- Page 2 ASSEMBLY INSTRUCTIONS: A. Take the time to inspect the kit to make sure all components parts are included with the kit. B. Identify and locate resistors R1-R16 on the pcb (97PCB270033). Solder to the board and cut excess leads. C. Place the super bright white LEDs on the pcb 13005330 08LCHW5 111N4001...
