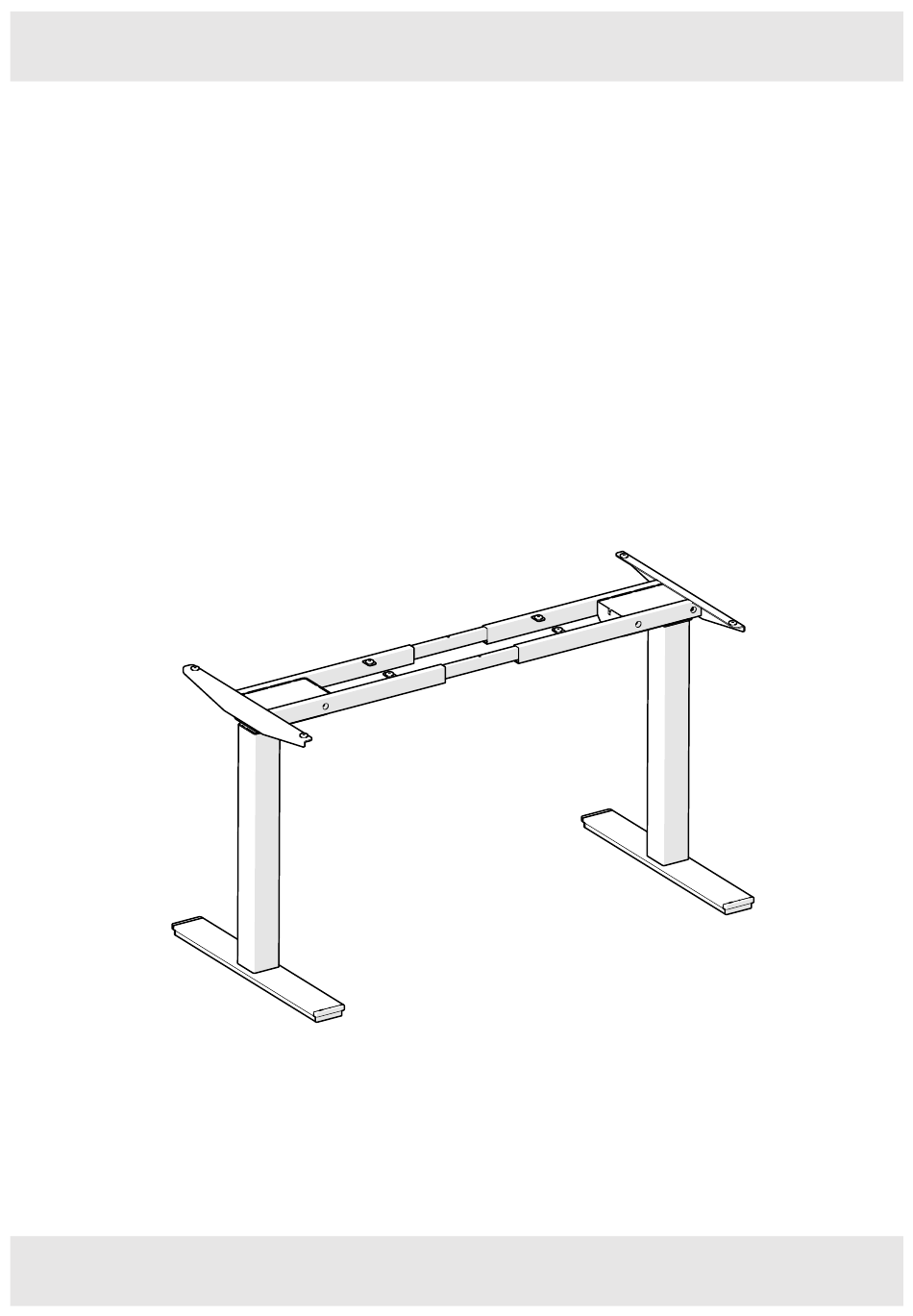

- Page 1 ASSEMBLY GUIDE Rev. 01 2021.04 .27 Series 12&22 ENGLISH...
- Page 2 ASSEMBLY GUIDE Table of contents 1. General • 1.1 Local value of the user manual • 1.2 Intended use 2. Safety Information • 2.1 Informal safety measures • 2.2 Use of the adjustable frame • 2.3 Specific Dangers • 2.4 In an emergency •...
-
Page 3: Safety Information
ASSEMBLY GUIDE 1. General 1.1 Local value of the user manual The guiding principle for safe use and trouble-free operation of this adjustable frame is the knowledge of basic safety information and regulations. This user manual includes the most important information needed for assembling and operating the adjustable frame safely. - Page 4 ASSEMBLY GUIDE 3. Packaging 3.1 Part Check List Leg (2 Pcs) Frame (2 Pcs) End Pipe (2 Pcs) Feet (2 Pcs) Connection Cable (1 Pcs) Control Unit installing Card Remote Control (1 Pcs) Power Cable (1 Pcs) Control Unit (1 Pcs) (1 Pcs) 3.2 Screw List M3.5X12 (2 Pcs)
- Page 5 ASSEMBLY GUIDE 4. Assembly 4.2 Assembly Step by Step M6x12 Step 1 Step 2 Adjust Top Frame to suitable length. Assemble the Leg and Frame as illustrated above. Please refer to Torque Guide. M6x12 Step 3 Step 4 Mount the End Pipe as illustrated above. Assemble the End Pipe and Frame as illustrated above.
- Page 6 ASSEMBLY GUIDE 4. Assembly 4.2 Assembly Step by Step ST 4.2X16 Step 7 Step 8 Mount the Control Unit Bracket as illustrated above. Please refer to Torque Connect the Cables to the Control Unit as illustrated above. Guide. Step 9 Step 10 Mount the Control Unit as illustrated above.
-
Page 7: Zero Setting
ASSEMBLY GUIDE 5. Operating Instructions Please read below instructions carefully before operating the system. Setting Button Memory Position 1 Memory Position 2 Memory Position 3 Down 5.1 Zero Setting: When using the height adjustable frame for the first time lower the desk to the lowest height as explained below before proceeding . •... - Page 8 ASSEMBLY GUIDE 5. Operating Instructions 5.4 Saving a desktop position: This function allows you to save a defined desktop height. One desktop height can be saved per memory position key. To save a position follow the instructions below: • Adjust the desktop to the desired desktop position you would like to save. The display will show the desktop height (e.g. 73cm). •...
-
Page 9: Troubleshooting
ASSEMBLY GUIDE 6. Programmable Remote Control Operating Instructions 6.4 Obstraction response with sensitivity range options for desktop move up Follow the instructions below to change the sensitivity of the obstracition response for desktop move up. • Within the setting menu choose “S – 3”. •... - Page 10 ASSEMBLY GUIDE 7. Troubleshooting Legs not working Possible Cause Remedy Ξ Power Cable is not connected Ξ Plug the Power Cable into the Control Unit Ξ Legs are not connected Ξ Plug the Motor Cables into the Control Unit and Legs Ξ...
- Page 11 ASSEMBLY GUIDE 7. Troubleshooting Error code Note How to handle it Ξ The main supply voltage is over 45V Check the main power supply Ξ The height deviation between the screws exceeds Re-initialize Ξ Remote control connecting or communication Check the remote control cable error - -- Ξ...
- Page 12 ASSEMBLY GUIDE 7. Troubleshooting Error code Note How to handle it Ξ Motor 1 wrong direction of operation Switch the motor line or hall line Ξ Motor 1 overload Reduce load Ξ Motor 2 not connect Check the cable Ξ Motor 2 error in current sampling channel Replace the control panel Ξ...
