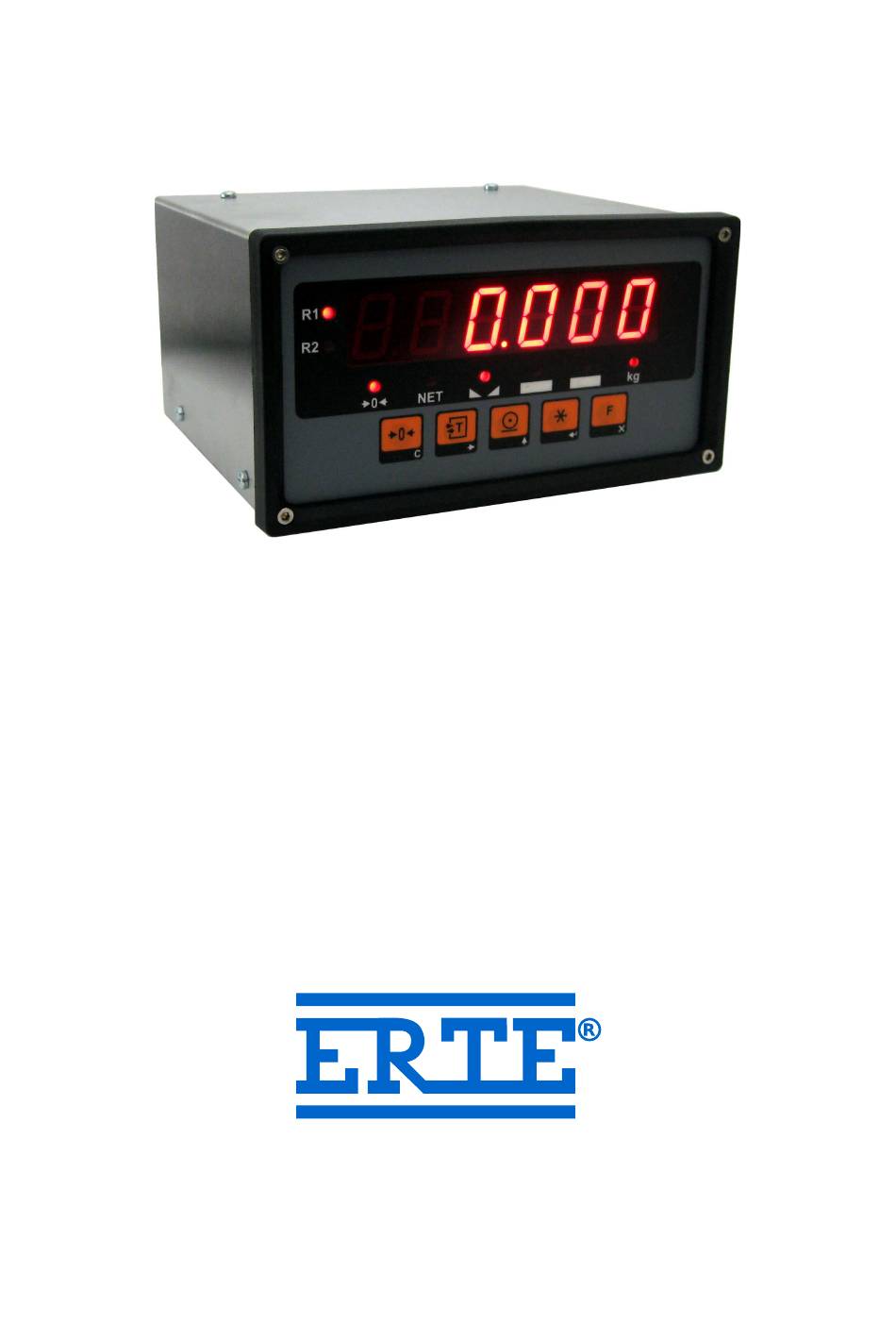

Page 1 Weighing Indicator User Manual...
Page 2: Table Of Contents
B2 WEIGHING INDICATOR USER MANUAL Table of contents 1 Introduction............................3 1.1 Attention Before Start........................4 2 Interface.............................5 2.1 Display............................5 2.2 Keypad............................6 3 Connection Diagram..........................7 4 Configuration.............................8 4.1 Adjustment (Calibration) switch....................8 4.2 Configuration menu.........................10 4.3 Weighing parameters........................11 4.4 Adjustment ( Calibration ).......................13 4.5 Miscellaneous Application Settings..................14...
Page 3: Introduction

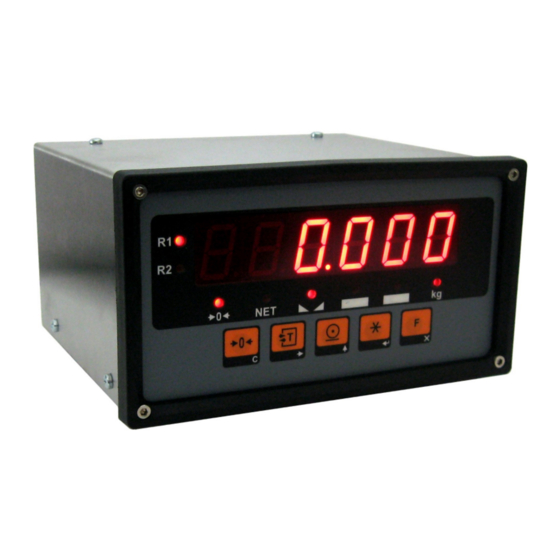

B2 WEIGHING INDICATOR USER MANUAL Introduction The B2 is a universal digital weighing indicator for analog load cells, which incorporates: Delta-sigma analog to digital converter for accurate weighing. ○ Internal alibi memory for recording weighing results. ○ RS-232 ports for connections to printers, remote displays, computers or other digital ○...
Page 4: Attention Before Start
B2 WEIGHING INDICATOR USER MANUAL Attention Before Start Always use Earthed/Grounded Mains socket. ● Do not connect powerful electrical machines on the same mains plug. ● Disconnect mains connector before opening the enclosure. ● Recommended load cell cable cross section is 1 mm². If the cable length is too long, use multiple ●...
Page 5: Interface
B2 WEIGHING INDICATOR USER MANUAL Interface Display Weight 6 digit 7-segment led display with decimal point (Negative values are displayed with a minus sign in the leftmost digit) display R1 , R2 Range indicator: If configured as a multi range instrument, indicates the current weighing range.
Page 6: Keypad
B2 WEIGHING INDICATOR USER MANUAL Keypad Zero key: Set the indication to zero. Zeroing can be established only if the gross weight is within ±2% of the maximum capacity. Tare In / Tare Out key: If the indicated value is positive and stable, it is saved as tare and net weight is indicated.
Page 7: Connection Diagram
PC Connection Signal RS-232 (Type-D 9-Pin Male) 2 (Rx) 3 (Tx) 5 (Gnd) ERTE HG57 Remote Display Connection Remote Display Signal (Type-D 9-Pin Female) 1, 2, No connection 4, 5, 6, 7, 8, 9 4, 5, 6, 7, 8, 9 one-to-one v1.00...
Page 8: Configuration
B2 WEIGHING INDICATOR USER MANUAL Configuration Adjustment (Calibration) switch A toggle switch located on main pcb determines the mode of configuration. If the switch is in “LOCKED” position, it is not possible to alter weighing related settings. If the switch is in “UNLOCKED” position, it is possible to edit weighing parameters and adjustment data.
Page 9 B2 WEIGHING INDICATOR USER MANUAL ADJUSTMENT SWITCH In this position, adjustment In this position, adjustment is OFF / LOCKED is ON / UNLOCKED Note: Position of switch #2 has no effect v1.00 Page 9...
Page 10: Configuration Menu
B2 WEIGHING INDICATOR USER MANUAL Configuration menu The position of the adjustment switch determines the method of entering the configuration menu and its contents.If the adjustment switch is in “UNLOCKED” position, press key to enter configuration menu. Contents of the menu:...
Page 11: Weighing Parameters
B2 WEIGHING INDICATOR USER MANUAL Weighing parameters Press key while “ “ message is on display. Weighing parameters are edited one at a time. Edit each value by using keys; press to accept and proceed with the next parameter. You may press and go back to the previous parameter while editing.
Page 12 B2 WEIGHING INDICATOR USER MANUAL 6. Stability delay The time period for displayed weight values, for determination of the stability. hc 1 ( Accepted values: 1 .. 5 second(s) ) 7. Filter This value determines the interpretation of the changes in weight. A lower...
Page 13: Adjustment ( Calibration )
B2 WEIGHING INDICATOR USER MANUAL Adjustment ( Calibration ) AyAr Press key while “ “ message is on display. There are 3 options for proceeding. This option may be used when only dead load (zero point) adjustment is Dead load adjustment: needed.
Page 14: Miscellaneous Application Settings
B2 WEIGHING INDICATOR USER MANUAL Miscellaneous Application Settings This setting is used to configure miscellaneous application settings like automatic tare, automatic printing etc. tFon Press key while “ “ message is on display. od 0 Automatic Tare 0 – Off 1 –...
Page 15: Serial Output Settings
1 – 4800 2 – 2400 3 – 1200 4 – 19200 tip 0 Output Mode Type ( If you don't need different serial output format, don't change the defaults ) 0 – ERTE B2 series output format v1.00 Page 15...
Page 16 B2 WEIGHING INDICATOR USER MANUAL * Continuous Mode Output Format Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (9600-8-N-1) ( Default ) Data: (8 characters) Character Açıklama stable, no tare stable, have tare 1. character no stability, no tare...
Page 17: Operation
B2 WEIGHING INDICATOR USER MANUAL Operation After applying power to a properly installed and configured device, the power-on tests are performed. During these tests all the segments (indicating devices) on the display are turned on. After completition of these tests the device performs initial zero setting, if configured. At the end, the weight display appears.
Page 18: Appendix
B2 WEIGHING INDICATOR USER MANUAL Appendix Error messages Message Meaning Solution #****$ Overload. Platform is loaded beyond Unload platform. maximum capacity + 9e. %____& Underload. Weight is less than zero setting Check the platform. limit. Deadload may be changed. hata 1 Error in non-volatile parameter memory.
Page 19: Specifications
B2 WEIGHING INDICATOR USER MANUAL Specifications 85 – 264 VAC, 50/60 Hz, maximum 15 Watt Power Supply Enclosure Stainless Steel Display 6 digit, 25 mm bright red display Interval, zero, stability, net, unit and function indications Keypad 5 mechanical keys...
