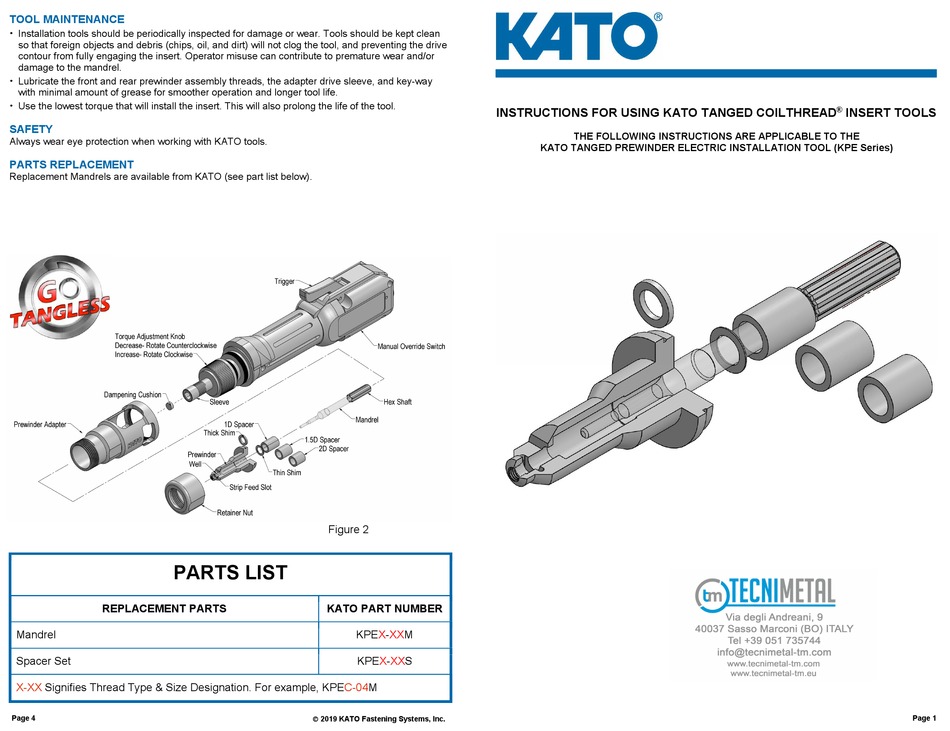

• Installation tools should be periodically inspected for damage or wear. Tools should be kept clean

so that foreign objects and debris (chips, oil, and dirt) will not clog the tool, and preventing the drive

contour from fully engaging the insert. Operator misuse can contribute to premature wear and/or

damage to the mandrel.

• Lubricate the front and rear prewinder assembly threads, the adapter drive sleeve, and key-way

with minimal amount of grease for smoother operation and longer tool life.

• Use the lowest torque that will install the insert. This will also prolong the life of the tool.

Always wear eye protection when working with KATO tools.

Replacement Mandrels are available from KATO (see part list below).

REPLACEMENT PARTS

Mandrel

Spacer Set

X-XX

Signifies Thread Type & Size Designation. For example, KPEC-04M

Page 4

Figure 2

KATO PART NUMBER

KPEX-XXM

KPEX-XXS

 2019 KATO Fastening Systems, Inc.

INSTRUCTIONS FOR USING KATO TANGED COILTHREAD

THE FOLLOWING INSTRUCTIONS ARE APPLICABLE TO THE

KATO TANGED PREWINDER ELECTRIC INSTALLATION TOOL (KPE Series)

INSERT TOOLS

Page 1

Table of Contents

Need help?

Do you have a question about the KATO COILTHREAD and is the answer not in the manual?

Page 1 TOOL MAINTENANCE • Installation tools should be periodically inspected for damage or wear. Tools should be kept clean so that foreign objects and debris (chips, oil, and dirt) will not clog the tool, and preventing the drive contour from fully engaging the insert. Operator misuse can contribute to premature wear and/or damage to the mandrel.
Page 2 BEFORE YOU BEGIN PLEASE REVIEW:  Proper hole preparation procedures. 9. Tighten the Retainer Nut to hold the FEA in place. Again, a good hand tightening is all that’s  The KFS-20 (CT5420) instructions prior to use. needed. CAUTION: Do not over tighten the Prewinder Adapter or the Retainer Nut. ...
