Instructions for use

1901-765 series

EasyPulse POC

Portable Oxygen Concentrator

Table of Contents

Need help?

Do you have a question about the EasyPulse 1901-765 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Luxfer EasyPulse 1901-765 Series

Page 1 Instructions for use 1901-765 series EasyPulse POC Portable Oxygen Concentrator...
Page 2 Excellent battery life The EasyPulse Portable Oxygen Concentrator standard internal battery lasts more than three hours at setting two. The unit can also be used with the AC cord or with the DC car adapter. Luxfer is ISO 13485 Certified...
Page 3: Table Of Contents
Contents Receiving / inspection Intended use Read all instructions before using Explanation of abbreviations Safety information - warnings and cautions Specifications Component description Operating instructions Operating position Using the carry bag Power supply Alarm / indicators / troubleshooting Maintenance / cleaning Disposal instructions SAVE THESE INSTRUCTIONS (en)
Page 4: Receiving / Inspection
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. The Luxfer EasyPulse POC (1901-765 series) is intended to provide supplemental oxygen to persons requiring oxygen therapy. The POC Used without the yellow safety alert symbol (see below), can be used in a home, institution or vehicle and for transportable use.
Page 5 DO NOT disassemble. NO oil or grease This product is not intended as a life-sustaining or life-supporting device. The oxygen concentrator, gas pathways, components and • DO NOT smoke, allow others to smoke or have open flames near the accessories do not contain any natural rubber latex. POC when in use.
Page 6 POC. • Use only spare parts recommended by Luxfer to ensure proper • DO NOT place the POC in a small closed space such as a closet.
Page 7 There is a risk of fire associated with oxygen enrichment during • Luxfer and your equipment provider are accountable for prescribing the oxygen therapy. Do not use the oxygen concentrator or accessories oxygen concentrator, parts and accessories that are compatible for use near sparks or open flames.
Page 8: Specifications
6 Specifications Setting 1: 4.7hrs Setting 2: 3.4hrs Battery duration* Setting 3: 2.7hrs Height: 25.7cm (10.1in) (approximate) Setting 4: 2.0hrs Dimensions Width: 16.5cm (6.5in) Setting 5: 1.6hrs Depth: 11.4cm (4.5in) Sound (@setting 2) 41 dBA Unit weight: 3.0kg (6.6lb) Weight Shipping weight: 5.5kg (12.15lb) Maximum 2.1m (7ft) long standard adult single Cannula...
Page 9: Component Description

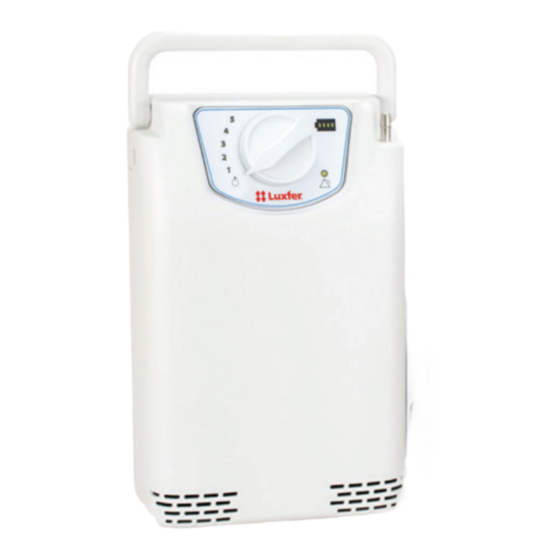

7 Component description Missing or illegible labels must be replaced; contact your service provider or Luxfer. Inlet filter Internal battery level indicator Setting knob Product serial number label* Oxygen outlet fitting Power jack 1901-76506 Setting Panel Alarm indicator Exhaust vents...
Page 10: Operating Instructions
8 Operating instructions Choose a power option: AC power adapter, DC power adapter or internal battery (refer to the “POWER SUPPLY” section of the Verify battery status (level) of both internal and external batteries user manual for details on these three options). (where applicable) prior to each use;...
Page 11: Operating Position
9 Operating position The POC can be operated in an upright position with or without the carry bag as shown below. • ALWAYS confirm the prescribed dose before administering it to the patient and monitor on a frequent basis. • For proper oxygen flow, be sure that the cannula is not kinked or obstructed before or during use.
Page 12: Using The Carry Bag
10 Using the carry bag The carry bag is intended to make the POC easier to transport, prevent movement due to vibration and protect the device from minor • The mesh on the carry bag must be aligned with the mishaps.
Page 13: Power Supply
11 Power supply To prevent damage to the device, use only Luxfer-approved external power sources. AC power adapter Connection The AC power adapter connects the POC to a 100-240 VAC, 50/60 To connect the AC power adapter to the POC, insert the DC plug connector into the Power Input jack on the POC and insert the AC Hz wall outlet.
Page 14 DC power adapter Connection The DC power adapter connects the POC to a car’s 12 VDC outlet. To connect the DC power adapter to the POC, insert the DC plug The DC adapter will power the POC and simultaneously charge the connector into the power input jack on the POC and insert the other internal battery.
Page 15 Internal battery pack Lithium ion battery guidelines The POC contains an internal rechargeable lithium ion battery pack. • Proper use: In order to prolong the life of the battery, it is best When fully charged, the battery will power the POC for up to 4.7 to charge the battery frequently rather than waiting until the hours dependent upon setting.
Page 16: Alarm / Indicators / Troubleshooting
12 Alarms / indicators / troubleshooting Green Ready for use. Amber Caution - Prompt response by the OPERATOR is required. The audible alarm and LED indicators are listed in the chart. Warning - Immediate response by the OPERATOR is required. Visual Indicator / problem Audible alarm Probable cause...
Page 17 Visual Indicator / problem Audible alarm Probable cause Remedy Breath rate exceeding 35 breaths / Amber alarm indicator is illuminated. Repetitive beep. Reduce level of activity to allow breath rate to slow. minute. 1. Reduce level of activity to allow breath rate to slow. Breath rate exceeding 35 breaths / Red alarm indicator is illuminated.
Page 18 Visual Indicator / problem Audible alarm Probable cause Remedy 1. Select the “OFF” position. Red alarm indicator is illuminated, unit Pressure outside of normal 2. Select the prescribed setting. is not running and setting numbers 1 Repetitive beep. operation. 3. If alarm persists, change to alternate oxygen source and &...
Page 19: Maintenance / Cleaning
13 Maintenance / cleaning Perform cleaning as required. • Prior to cleaning, ensure the POC is turned off and unplug any external power sources. Cabinet • DO NOT disassemble or attempt to repair. There are no user The patient should connect to an alternate oxygen source. serviceable parts inside.
Page 20: Disposal Instructions
14 Disposal instructions This device may contain electrical components that are hazardous to the environment. DO NOT dispose of the device in general household waste. Luxfer Gas Cylinders Private Road 2, Colwick Road Industrial Estate Nottingham NG4 2BH, United Kingdom www.luxfercylinders.com...
