Summary of Contents for babala Hydro-Pro

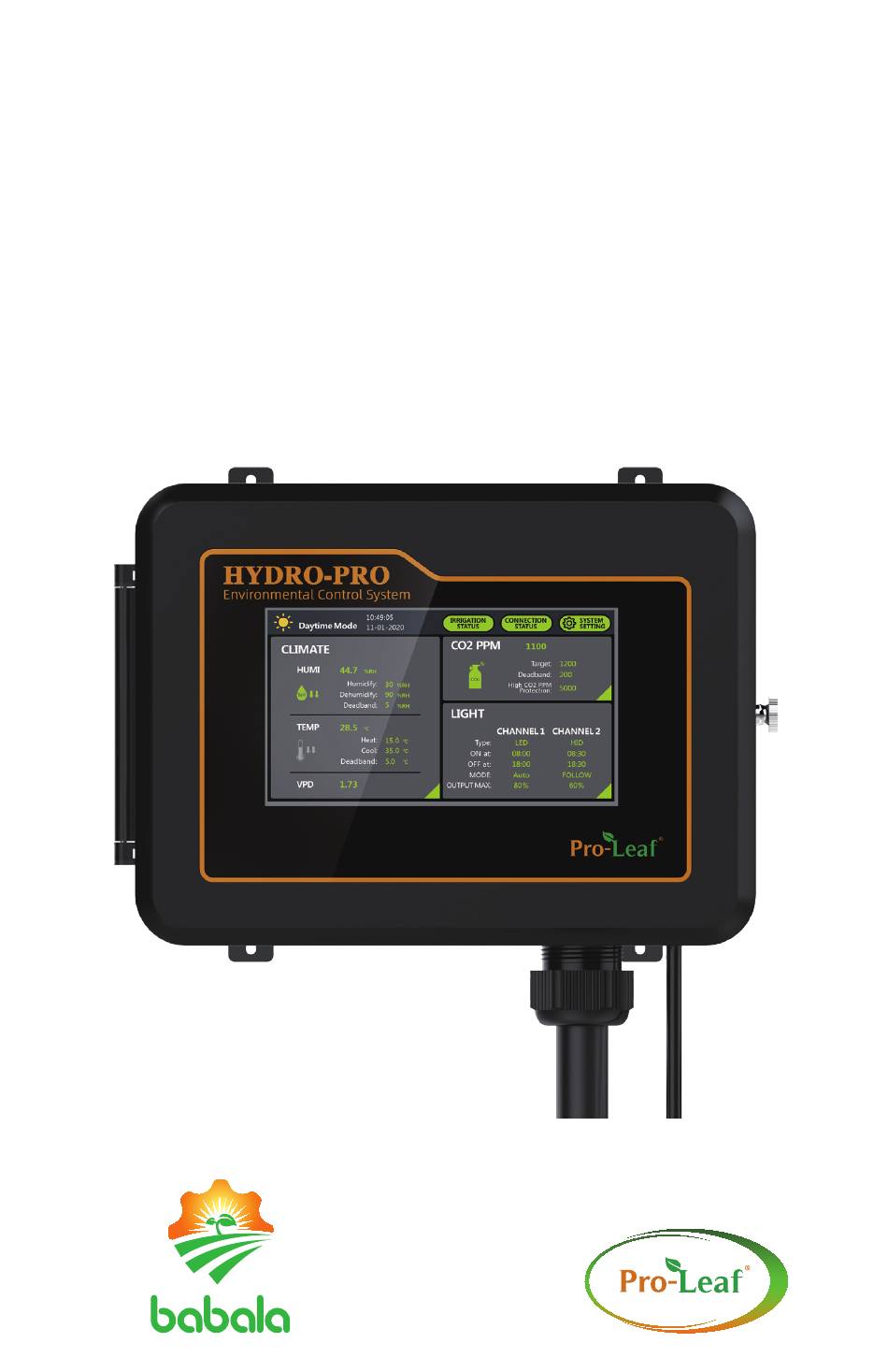

- Page 1 Hydro-Pro Environmental Control System Instruction Manual www.babala-hydroponics.cn www.pro-leaf.com...
-
Page 2: Table Of Contents
Contents Overview of Hydro-Pro System Specifications of Hydro-Pro Series Products III. Warings & Cautions / Avertissement & Précautions Installation Instructions Installation Diagram Interface Instructions VII. Operation Instructions... -
Page 3: Overview Of Hydro-Pro System
You can easily set up daily lighting and specially designed light management in a convenient manner. Hydro-Pro allows you to select the type of light (LED or HID) to be controlled and can simultaneously employ 2 channels of independent or interlocked light control logic in different modes to create multiple lighting layouts and growth spectra required for plant growth. -
Page 4: Specifications Of Hydro-Pro Series Products
II. Specifications of Hydro-Pro Series Products Hydro-Pro Master Controller Product name Hydro-Pro Master Controller 120VAC±15VAC, 60Hz, 1A (can be customized) Input Voltage 220VAC±15VAC, 50/60Hz, 1A (can be customized) AC signal output (PORT) 10-channel signal output: AC24V/0.1A RJ12 x 4, 4-channel RS485 communication Other signal output ports (RJ12) Signal line output: DC24V, 1.0A... - Page 5 , Humidity & Temp Sensor Humidity & Temperature Sensor Main parameters Default values Main parameters Default values Gas detected Working voltage DC24V Working voltage DC24V Working current <10mA Working current 30mA Humidity range 0-100%RH range 0~6000ppm Humidity accuracy ±2%RH accuracy ±(30ppm+3%) Temperature range 0~70℃...
- Page 6 AC Station socket module Light control module Main parameters Default values Main parameters Default values Input Voltage AC110V 60Hz Input Voltage DC24V Output Voltage AC110V/60Hz/MAX10 Output Voltage 0~10V (DC) Maximum power <1100W Communication terminal RJ12 connector Communication terminal RJ12 connector Indicator Green LED Indicator...
-
Page 7: Warings & Cautions / Avertissement & Précautions
IV. Installation Instructions Before use, the Hydro-Pro Master Controller should be properly secured to a wall. The air intake and exhaust of the controller must be kept clear, and there must be no obstruction. Keep the environment where the product is used well ventilated. Do not place flammable and explosive materials, such as gasoline near the equipment. - Page 8 Counterclockwise 2. Loosen the screw on the controller. Heat Cool Humidify Humidify Dehumidify Dehumidify Light-1 Light-2 Alarm Alarm 3. Open the cover of the controller, and connect the corresponding devices accordingly.
- Page 9 2. The working status of the Hydro-Pro Master Controller will be displayed with the status sign on its interface; get familiar with the specified meaning of each sign.
-
Page 10: Installation Diagram
V. Installation Diagram Devices Generator Tank Lights 4x Humidity & Temp Sensor Lights 4x CO Sensor Power AC 110V USB TF Reset Dehumidifier Distribution box Devices... - Page 11 Connection Guide Basic configuration in the standard working environment with a grow area of 200m Equipment Quantity Purpose Hydro-Pro Master Controller Master Controller Monitoring CO parameters (Relative CO concentration value), relative temperature value, four-in-one sensor relative humidity value, and light parameters...
-
Page 12: Interface Instructions
VI. Interface Instructions Turn on the controller, the loading interface will be shown directly on the display. After the loading is completed, the relevant information of the environment will be displayed on the homepage. Function Description Home Page After the corresponding sensors are connected to the controller, the real-time data of the related devices are displayed on the interface, including VPD, humidity, temperature, CO , light, day and night. - Page 13 Control The PPM-UP mode, Fuzzy Logic mode and manual shutdown mode are available on the device. By analyzing the CO data read by the sensor, the relative CO concentration in the environment can be controlled and adjusted. The CO control mode is composed of a generator [PPM UP] mode and TANK [Fuzzy-Logic] mode.
- Page 14 The Hydro-Pro master controller is preset with default day and night control parameters (shown in the Factory Defaults and Control Limits section of this document) so that it can be used immediately out of the box. The Hydro-Pro controller will display the date symbol in the upper left corner of the day/night mode.
-
Page 15: Operation Instructions
Automatic nutrient dosing and irrigation mode Hydro-Pro controller is capable of running in conjunction with PHEC-B2 equipment, which is called Hydro-Plus mode. In this mode, the automatic nutrient dosing, automatic water make-up, water level detection (EC, pH, water level, and water elevation), automatic irrigation, automatic liquid dispensing switch, and high-water temperature alarm can be set. - Page 16 SYSTEM SETTING Home V1.00 System Setting System Version: Update Sensor List 2017-03-22 Date Setting Device List 15:20:29 Time Setting 12-hour 24-hour External Device Alarm Unit ℃ ℉ Auto Backlight Mode In this interface, the system version, day and night time, date setting, time setting, 12/24-hour time format, alarm signal output, temperature unit, automatic backlight switch, and backlight brightness can be set.
- Page 17 (2.1) Sensor and device list In the sensor or device list interface, all registered devices will be displayed, which are distinguished and shown by device names, such as CO -SR, HT-SR, PHEC-B2, LEVEL-SR, AC-CO , LDA-1, etc. The device ID, connection status (online/offline) will be displayed simultaneously. In this interface, you can choose to find unregistered devices.
- Page 18 After the relevant device data are found, the dialogue box will be displayed as shown in the interface above, in which the device type and ID will be present; if the user presses the YES button, the relevant device data will be added to the device list; if the user presses the NO button, the device will not be added to the device list.
- Page 19 3. Device Status In the main setting interface, press the "CONNECTION STATUS" to enter the device status interface. The devices displayed in the interface are SENSOR, DEVICE, CH1 light line 1, CH2 light line 2, and PORT. CONNECTION STATUS The corresponding online status of the port is also displayed in the interface: If the device is not registered, it will not be displayed.
- Page 20 10:49:05 CONNECTION SYSTEM IRRIGATION Daytime Mode STATUS SETTING STATUS 11-01-2020 CO2 PPM 1100 CLIMATE Target: 1200 HUMI 44.7 Deadband: Humidify: High CO2 PPM 5000 Protection: Dehumidify: Deadband: LIGHT TEMP 28.5 ℃ CHANNEL 1 CHANNEL 2 Heat: 15.0 ℃ Type: Cool: 35.0 ℃...
- Page 21 [Target] value: 400-4000. The target value needs to be lower than the high CO PPM protection value. [Deadband] value: 50-1000. The target value plus the deadband value needs to be lower than the high CO PPM protection value. [High CO PPM Protection] value: The value shall be lower than 9999, and the target value needs to be higher than the CO target value.
- Page 22 Deadband High PPM Protection (Fuzzy Logic Activate Target /PPM UP) Value value In PPM-UP mode, the device will turn on the AC-Station (CO ) module when the current value is lower than [TARGET]-[DEADBAND] value, and immediately turn off the AC-Station (CO ) module after the [TARGET] value is reached.
- Page 23 6. Humidity parameter setting interface In the humidity parameter setting interface, the current real-time data and the working status of the device are displayed in the upper part. If the device is not equipped with temperature and humidity module, the relevant data of temperature, humidity and CO three-in-one module can be used;...
- Page 24 Low Humi High Humi protection value protection value Deadband Deadband Humidification Adaption Dehumidification on value range on value [Humidify] target value: When the current humidity of the device is lower than this value, then the humidification will be started. The target value set needs to be lower than the high humidity protection value minus the deadband value, and needs to be higher than the low humidity protection value.
- Page 25 (6.3) Interlock setting In the case where the CO and the dehumidification are interlocked, when the CO regulation is performed, the cooling is enabled, and the CO regulation will be stopped, so the dehumidification will be executed first. 7. Temperature parameter setting interface In the temperature parameter setting interface, the current real-time data and the working status of the device are displayed in the upper part of the device.
- Page 26 [Heat] target value: When the current temperature of the device is lower than this value, then the heating is started. The target value set needs to be lower than the high temperature protection value minus the deadband value, and needs to be higher than the low temperature protection value. [Cool]target value: When the current temperature of the device is higher than this value, and the cooling is started.
- Page 27 Press the Heat and Cool buttons, and they will turn from gray to bright, indicating that the correspond- ing working status is on. In Heat mode, the device will turn on the humidification output port when the current value is lower than [Heat] value, and immediately turn off the heating output port when the real-time temperature value is higher than [Heat] + [Deadband] value.
- Page 28 8. Light Setting On the home page, the current type of the light and the status of each channel. The device is provided with two light channels, each of which can be connected to 20 light dimming adapter (LDA-1) modules at most to control the HID or LED lamps. The channel 1 is set for the main line light control, and the channel 2 light is set for the auxiliary line light control.
- Page 29 (8.2) Main line light parameter setting The light module is automatically turned on and off based on the time status set for day and night. The light intensity can be set in the interface, with a minimum light intensity of 10% and a maximum light intensity of 115%.
- Page 30 (8.7) Separate mode of auxiliary line light In the separate mode of auxiliary line light, the relevant parameters of the auxiliary line will be execut- Babala (Xiamen) Agri-tech Co., Ltd. Floor 5, Building A2, Zhongcang Industrial Park, No.168, Pingcheng South Road, Haicang District, Xiamen City, Fujian Province Version 2.0...
