Summary of Contents for WATT ATM Series

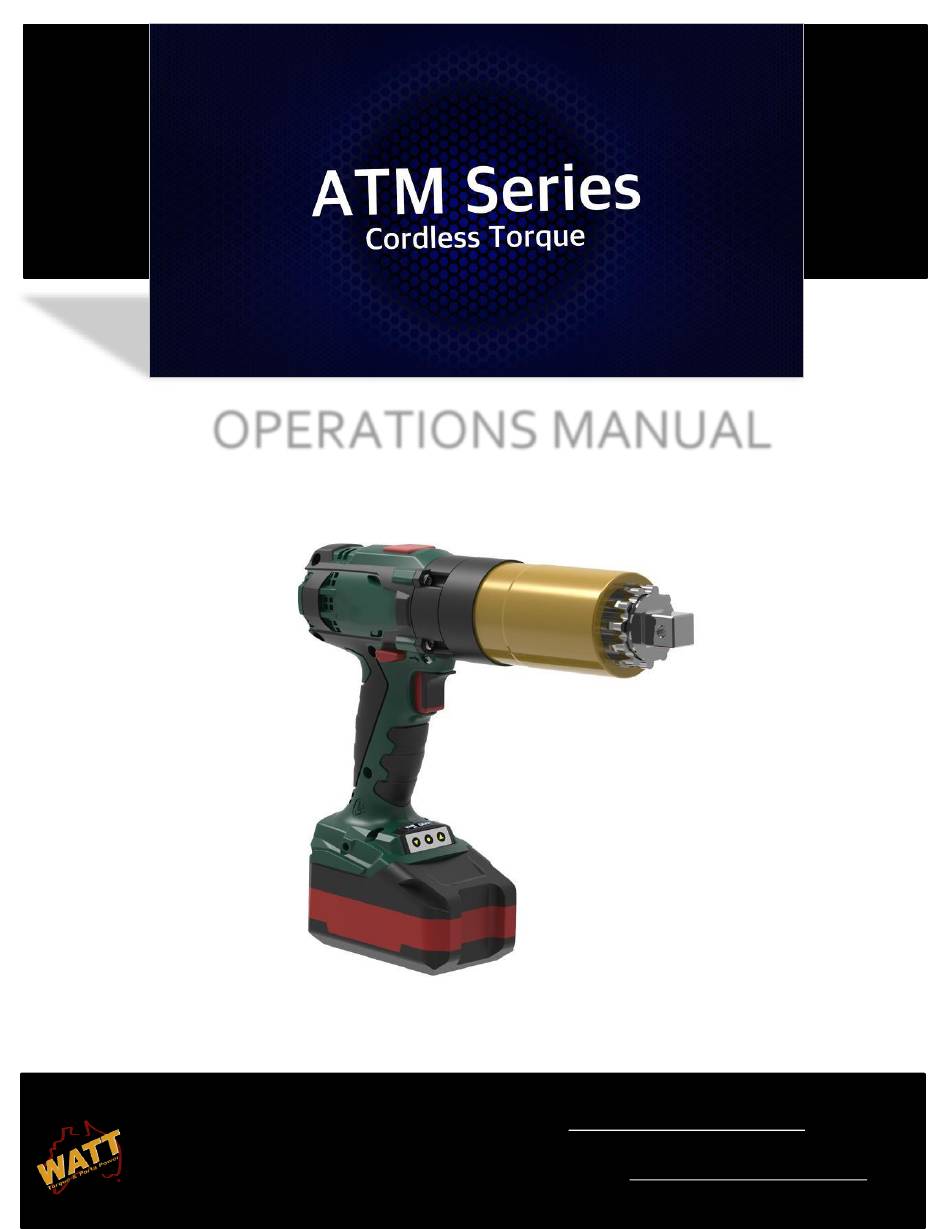

- Page 1 OPERATIONS MANUAL Perth Branch 9 Venture Loop, Wangara, WA 6065 / P: 08 9302 4103 / E: enquiries@watorquetools.com.au Karratha Branch U 8/9, 985 Woodbrook Rd, Karratha WA 6714 / P: 08 9185 2008 / E: wattsales@watorquetools.com.au www.wattwa.com.au...
-
Page 2: Table Of Contents
Battery Torque Wrench User Manual Catalogue Chapter 1：Product and Safety Notice........... 1 Chapter 2：Introduction................3 2.1 Specifications..................3 2.2 Environmental Specifications............3 Chapter 3: Tool Assembly................. 4 3.1 Handle introduction..............4 Chapter 4: Function Description............. 5 4.1 Work Interface................5 4.2 Main Menu——Mode Setting............6 4.3 Main Menu——Preset Value............7 4.4 Main Menu——Unit Settings............8 4.5 Main Menu——Machine Data.............8... - Page 3 Battery Torque Wrench User Manual 5.2 Tool Safety Information.............. 14 5.3 Tool Operation................14 5.3.1 Li-Ion Battery Pack............14 5.3.2 Insert/Remove the Li-Ion Battery Pack......15 5.3.3 Checking Battery Charge..........15 5.3.4 Charging the Li-Ion Battery Pack........16 5.3.5 Setting direction of rotation..........16 5.3.6 Installing the Reaction Arm..........
-
Page 4: User Manual
Battery Torque Wrench User Manual Chapter 1：Product and Safety Notice IMPORTANT: DO NOT OPERATE THE TOOL BEFORE READING THIS USER MANUAL. IF BREAKDOWN, MALFUNCTION OR DAMAGE OCCURES, DO NOT ATTEMPT TO REPAIR. PLEASE CONTACT YOUR LOCAL DISTRIBUTER Only persons trained and qualified should attempt the installation, operation and diagnosis of this equipment. - Page 5 Battery Torque Wrench User Manual Li-Ion Battery Pack Safety Only use the Li-Ion Battery Pack with the Battery Torque Wrench. The use of other batteries with the Battery Torque Wrench will cause damage to the tool. WARNING: The Li-Ion Battery Pack should only be charged on the Battery Charger.
-
Page 6: Chapter 2：Introduction
Battery Torque Wrench User Manual Chapter 2：Introduction Dear Customer： Every power tool is carefully tested and is subject to the strict quality controls of the quality assurance section. However, the service life of any power tool is to a great degree dependent on yourself as the user. -
Page 7: Chapter 3: Tool Assembly
Battery Torque Wrench User Manual Chapter 3: Tool Assembly ‘ The digital display tool system includes a handle and a battery. The digital display tool provides users with convenient key OLED interface navigation. This allows the operator to quickly operate 10 programmable presets on the tool. 3.1 Handle introduction The handle of the digital charging torque wrench is composed of a direction (forward rotation, reverse rotation) controller and a start stop trigger. -
Page 8: Chapter 4: Function Description
Battery Torque Wrench User Manual Chapter 4: Function Description 4.1 Work Interface 1、Torque value: it has different meanings according to mode selection. Mode 1 represents specific torque value, mode 2 represents gear value, and mode 3 represents specific torque value 2 、... -
Page 9: Main Menu--Mode Setting
Battery Torque Wrench User Manual Work operation： Set the torque value to be used by pressing ▲ key or ▼ key. If you want to tighten the bolt, first turn the forward and reverse switch to the forward direction, align the equipment with the bolt to be tightened, press the trigger, the machine will work, and when the target torque is reached, the machine will stop rotating, and the buzzer will ring. -
Page 10: Main Menu--Preset Value
Battery Torque Wrench User Manual Mode 3: preset switching In the working interface, the preset value of cycle switching, in nm, is not optional. In addition, the number of preset values of cycle is optional 4.3 Main Menu——Preset Value Under the main menu, press ▲ key or ▼ key to select the preset value, press ● key to enter the preset value menu. -
Page 11: Main Menu--Unit Settings
Battery Torque Wrench User Manual Preset value——Number of cycles ● key click to edit, and you can input 10 numbers such as 00-10 In mode 3, the preset number of work interface cycles is the same as this Input Press ▲ key or ▼ key to move to the number to be input, press ● key to input the corresponding number, input "X"... -
Page 12: Main Menu--Language
Battery Torque Wrench User Manual Press ▲ key or ▼ key to query various information of the machine Press ▲ or ▼ to exit and ● to return to the main menu 4.6 Main Menu——Language Under the main menu, press the ▲ key or ▼ key to select the Chinese English switch, and press the ●... -
Page 13: Main Menu--Calibration
Battery Torque Wrench User Manual the working interface 4.8 Main Menu——Calibration Note: all settings in this interface need to be conducted under the guidance of the company's engineers. Generally, users do not need to use it. Under the main menu, press the ▲ key or ▼ key to select the calibration, and press the ●... - Page 14 Battery Torque Wrench User Manual In this interface, you can change the percentage position through ▼ and ▲ keys, press the trigger, and after the tester is tightened,● click the key to input the torque value on the tester, and then loosen the tester Move the interface to the right, and enter the update interface after cycling 6 values ●...
-
Page 15: Chapter 5 ：General Operating Instructions
Battery Torque Wrench User Manual Chapter 5 ：General Operating Instructions TOOLS ARE SAFE AND RELIABLE. NOT FOLLOWING PRECAUTIONS INSTRUCTIONS OUTLINED HERE CAN RESULT IN INJURY TO YOU AND YOUR FELLOW WORKERS. WE ARE NOT RESPONSIBLE FOR WARNING! DO NOT operate tool before reading this user manual. If breakdown, malfunction, or damage occurs WARNING! DO NOT attempt to repair. -
Page 16: Electrical Safety
Battery Torque Wrench User Manual 5.1.2 Electrical Safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. 2. -
Page 17: Tool Safety Information
Battery Torque Wrench User Manual 5.2 Tool Safety Information Digital Battery Torque tools use high voltage and current to tighten and loosen threaded fasteners. For your safety and that of others, WARNING LABELS and ATTENTION LABELES are prominently attached to the tool and reaction accessories. -
Page 18: Insert/Remove The Li-Ion Battery Pack
Battery Torque Wrench User Manual Digital Battery Torque Torque to preform best, ensure the Battery is fully charged and in good condition before use. In optimal conditions, the Battery should be capable of approximately 100 Torque Cycles at 50% of the Maximum Torque on a joint with a hardness of approximately 10 degrees. -
Page 19: Charging The Li-Ion Battery Pack
Battery Torque Wrench User Manual 5.3.4 Charging the Li-Ion Battery Pack Note: The temperature range for charging is 0 C to 50 C (32 F to 122 F). To charge the Battery: 1. Plug the Battery Charger into the wall outlet. Result: The Red Warning Light will turn on for one second and then the Green Status Light will turn on for one second. -
Page 20: Installing The Reaction Arm
Battery Torque Wrench User Manual Push the switch in on the Right Side - This will cause the Digital Battery Torque to operate in the forward (clockwise) direction. The tool status will be set as ready on the display screen. Push the switch in on the Left Side -This will cause the Digital Battery Torque to operate in the Reverse (counter-clockwise) direction. -
Page 21: Safety Device (Switch Lock)
Battery Torque Wrench User Manual cancel the torque cycle. 3) when "ready" is displayed on the screen, the tool is ready for the next torque. 4) when tightening, it shall be ensured that there is a tightening angle of more than 180 degrees. -
Page 22: Chapter 6：Tool Warranty
Battery Torque Wrench User Manual Chapter 6：Tool Warranty New tool warranty Any new tool purchased from our company or other authorized distributors or intermediaries shall have a warranty period of 1 year from the initial calibration date, and can also purchase extended warranty service from the company. During the warranty and extension period, our factory or authorized service center will repair or replace the defective parts detected by our company for free.
