Summary of Contents for MonkeyKing Custom 61 Series

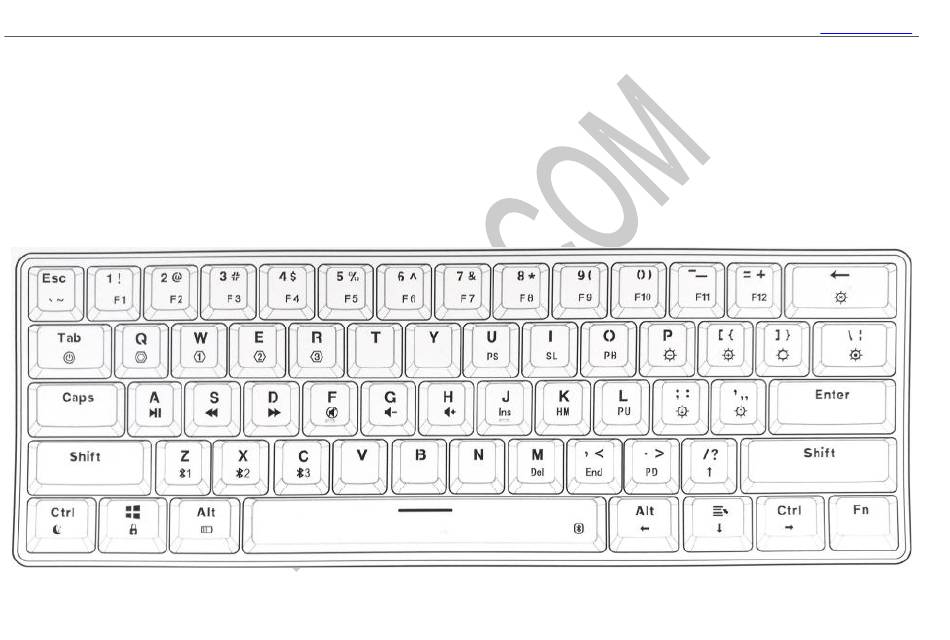

- Page 1 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com MonkeyKing Custom 61 Series Bluetooth/USB Wired Two-mode Mechanical Keyboard User Manual Fit for model: iGK61X, iGK61XS-bt, iSK61, iSK61S-bt ( Version 1.0 ) 2020/10/20 1/10...
- Page 2 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com Features: 1) Anti-ghosting for all keys. RGB real color LED back light (16.8M colors) 2) All keys are user-defined (except Fn-combined hot keys) in 1 online mode and 3 onboard modes(also-called “layers”) by driver software .
- Page 3 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com 9) Work in 2 communication modes. (only for Bluetooth / USB wired two-mode keyboard) Bluetooth mode: The keyboard may be paired with 3 Bluetooth devices and memorize them. USB-wired mode: USB-Type C connection port. ( USB to PC and type C to keyboard).
- Page 4 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com mechanical keyboard, there are some related light options in driver. Press this combined keys to change backlit effects alternately. FN + [/{ = To play the responding light effects (single light, running light, ripple, music lights), press this combined keys to change responding light effects alternately.
-
Page 5: Standard Mode
Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com 10min,…45min and “0” means “no sleeping” . Standard mode: Fn + Esc = ` Fn + Shift + Esc = ~ Fn + 1 = F1 Fn + 2 = F2... - Page 6 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com Layer related functional keys: Fn + Q = To turn on/off Online mode (driver mode) Fn + W = To turn on/off Onboard mode 1 (layer 1/Fn1) Fn + E...
- Page 7 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com onboard mode layer) and backlights can be set in this mode. Pay attention: You must keep the driver software running and the keyboard connecting with it. Press FN + Q again, back to the standard mode.
- Page 8 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com directly, no need to run and connect the keyboard to the driver software.) 5. FN + R (Onboard mode 3, Layer 3/ Fn 3): FN + R: onboard mode layer 3, R key ’ s LED lights in white. The reference settings: Some special function keys, or combination keys, or macro keys, these setting at this mode can be called by the key FN3 in Layer1 &...
- Page 9 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com Fn + X Long press to twinkle “X” (twinkle between red and green) waiting for pairing with Bluetooth device 2. Short press to connect to Bluetooth device 2 or stop communicating with Bluetooth device 2 (twinkling blue light on “X”...
- Page 10 Manual for MonkeyKing Custom 61 series RGB backlit mechanical keyboard www.pc-100.com iGK61X, iGK61XS-bt, iSK61, iSK61S-bt Product model: Interface: USB Type-C for USB wired keyboard; USB Type-C /Bluetooth for two-mode keyboard Built-in battery: 3.7V/1900mAh rechargeable lithium battery (only for Bluetooth /USB wired two-mode keyboard)
