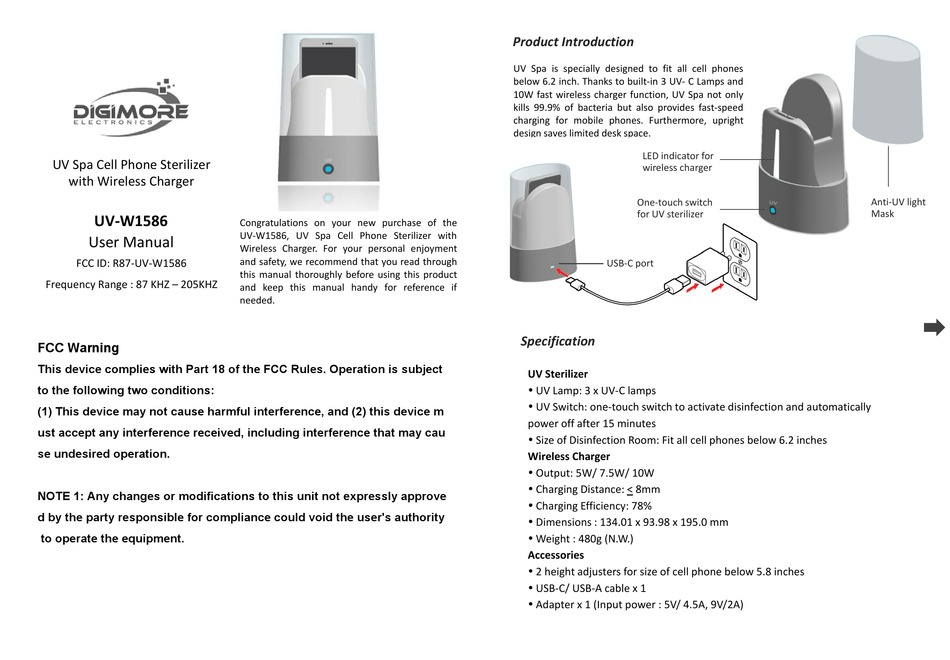

DIGIMORE UV-W1586 User Manual

UV Spa Cell Phone Sterilizer
with Wireless Charger
UV‐W1586
User Manual
FCC ID: R87‐UV‐W1586
Frequency Range : 87 KHZ – 205KHZ

FCC Warning

This device complies with Part 18 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device m
ust accept any interference received, including interference that may cau
se undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approve
d by the party responsible for compliance could void the user's authority
to operate the equipment.
Congratulations on your new purchase of the
UV‐W1586, UV Spa Cell Phone Sterilizer with
Wireless Charger. For your personal enjoyment
and safety, we recommend that you read through
this manual thoroughly before using this product
and keep this manual handy for reference if
needed.

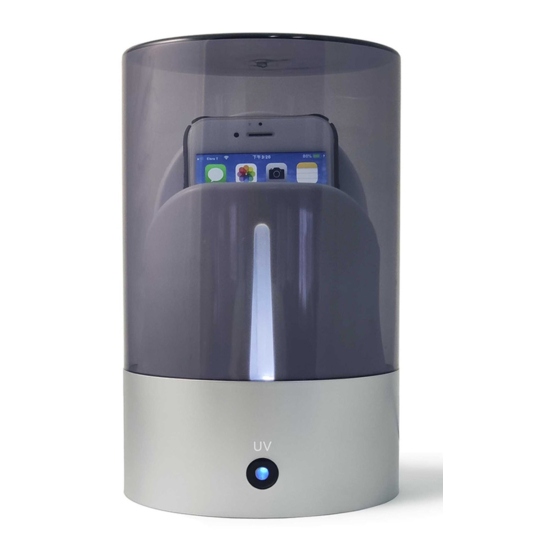

Product Introduction

UV Spa is specially designed to fit all cell phones
below 6.2 inch. Thanks to built‐in 3 UV‐ C Lamps and
10W fast wireless charger function, UV Spa not only
kills 99.9% of bacteria but also provides fast‐speed
charging for mobile phones. Furthermore, upright
design saves limited desk space.
LED indicator for
wireless charger
One‐touch switch
for UV sterilizer
USB‐C port

Specification

UV Sterilizer
 UV Lamp: 3 x UV‐C lamps
 UV Switch: one‐touch switch to activate disinfection and automatically
power off after 15 minutes
 Size of Disinfection Room: Fit all cell phones below 6.2 inches
Wireless Charger
 Output: 5W/ 7.5W/ 10W
 Charging Distance: < 8mm
 Charging Efficiency: 78%
 Dimensions : 134.01 x 93.98 x 195.0 mm
 Weight : 480g (N.W.)

Accessories

 2 height adjusters for size of cell phone below 5.8 inches
 USB‐C/ USB‐A cable x 1
 Adapter x 1 (Input power : 5V/ 4.5A, 9V/2A)
Anti‐UV light
Mask
