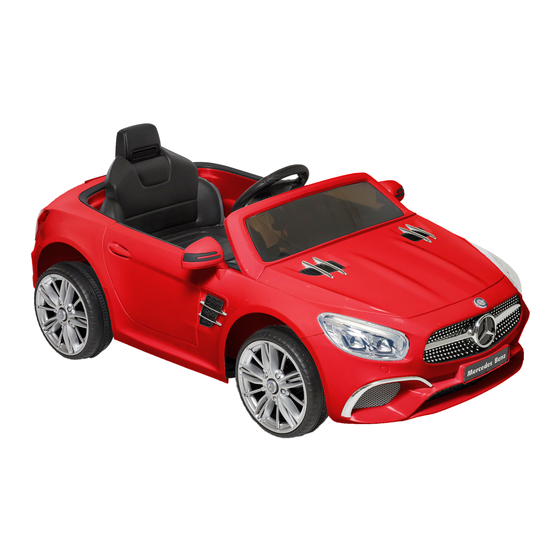

Action Wheels Mercedes-Benz SL-400 Parent And Rider Manual

6 volt 4-wheel ride-on

Hide thumbs

Table Of Contents

Mercedes-Benz

SL-400 6 Volt

4-WHEEL RIDE-ON TOY

STOP!

DO NOT RETURN TO STORE

This product cannot be returned for a refund

DO NOT RETURN TO STORE.

after it has been unpacked and used.

This product cannot be returned for a refund

after it has been unpacked and used.

Call us Toll-Free

at 1-866-424-0500

or Fax us at 1-775-248-5155

for assistance and information

from our trained technical staff.

CAUTION: THIS IS AN ELECTRONICALLY OPERATED PRODUCT.

The charger is an electronically operated product – not a part of the toy.

As with all electronic products, precautions should be observed

during handling and use to prevent electric shock.

Table of Contents

Need help?

Do you have a question about the Mercedes-Benz SL-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Action Wheels Mercedes-Benz SL-400

Page 1 Mercedes-Benz SL-400 6 Volt 4-WHEEL RIDE-ON TOY STOP! DO NOT RETURN TO STORE This product cannot be returned for a refund DO NOT RETURN TO STORE. after it has been unpacked and used. This product cannot be returned for a refund after it has been unpacked and used.
Page 2: Table Of Contents
Table of Contents Notes: Important Information ............2 Warnings and Cautions ............ 4 Rules for Riding Safety ............. 5 Parts Diagram ..............6 Assembly (Step-by-Step) ..........7-10 Operation ................. 11 Changing the Fuse ............11 Battery Charging .............. 12 Maintenance (Toy Care) ........... 13 Troubleshooting ...............
Page 3 Mercedes-Benz SL-400 6 Volt 4-WHEEL RIDE-ON TOY Parent and With directions for assembly and operation. Rider Manual Please read this manual before assembly. Remember to save your receipt. Suitable for 2+ years WARNING: Assembly by an adult. WARNING: RISK OF FIRE. DO NOT BYPASS FUSE. REPLACE ONLY WITH SAME TYPE 15A FUSE BATTERY PACK.
Page 4: Warnings And Cautions
Safety Warnings and Cautions WARNING: Electrical Hazard RISK OF FIRE. Do not bypass the fuse. Replace only with the same 15A fuse (on battery pack). • Only use a Ballard Pacific Resources, Inc. 6V lead-acid battery. • Only use a Ballard Pacific Resources, Inc. 6V charger. •...
Page 5: Rules For Riding Safety
Safety Rules for Riding Safety WARNING: Adult Supervision Required • Always Teach Safety First. • While most children can develop the physical skills necessary to operate this toy, it is important to remember that they do not yet have mature judgment skills. Children should never be allowed to ride this toy without adult supervision. Before any child rides this toy, an adult must evaluate the child’s skill levels and abilities to operate the toy safely.
Page 6: Parts Diagram
Parts Diagram...
Page 7: Assembly (Step-By-Step)
Assembly Turn the vehicle upside down. 1. Slide the driving wheel onto the rear axle. Position the driving wheel to match up with the gear box on the rear axle. 2. Slide a washer onto the rear axle. 3. Tighten and lock to the end of the rear axle with a wrench. 4.
Page 8 Assembly 1. Slide the normal wheel onto the rear axle from the right side. 2. Slide the normal wheel onto the rear axle. 3. Slide a washer onto the rear axle. 4. Tighten and lock to the end of the rear axle with a wrench. 5.
Page 9 Assembly 1. Plug the battery wire connector into the motor wire connector. 2. Fit the seat to the vehicle body. 3. Turn the seat lock to secure the seat with a screwdriver.
Page 10 Assembly 1. Insert the tabs on the windshield into the slots on the vehicle. Push until you hear it click into place. 2. Insert the side mirror into the hole on the side of the vehicle. Push until you hear it click into place. 3.
Page 11: Operation
Operation 1. Power Switch Turns the vehicle on and off. 2. Forward/Reverse Switch Changes the vehicle’s direction – forward and reverse. 3. Foot Pedal Applies power (speed) to the ride-on. • To move the ride-on, press the pedal down. • To brake or slow down, release pressure from the pedal. 4.
Page 12: Battery Charging
Battery Charging • The POWER SWITCH must be turned to the OFF position when charging. • Do not recharge the battery for more than 10 hours to avoid overheating the charger. • When the vehicle begins to run slowly, recharge the battery. •...
Page 13: Maintenance (Toy Care)
Maintenance Toy Care Check all screws, cap nuts and protective coverings ✓ regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. During snow or rainy weather, the toy should be ✓ stored inside or under a protective cover. Remember to charge the battery at least once per month while your toy is not in regular use.
Page 14: Troubleshooting
Troubleshooting Solutions Guide Problem Possible Cause Solution Low power Recharge the battery Blown fuse Replace the blown fuse with the same type and value of fuse Lost wheel nut Replace the nut with the correct size and tighten Car doesn’t work Loose battery connection Refit and tighten the connector, or if damaged, replace the connector Exhausted and bad battery...
Page 15: Limited Warranty
Limited Warranty DO NOT RETURN YOUR TOY TO THE STORE Product needs to be returned in original packaging and unused ad as purchased from your retail store and include the following items to validate your limited warranty. 1. Two items must be presented: a.
Page 16: Product Registration
Product Registration Note: Activation of your warranty gives you FREE telephone and online technical service help. Please fill out registration below and immediately mail with your sales receipt to: Ballard Pacific Resources, Inc. 410 S. Adele Avenue Joplin, MO 64801 Designed, manufactured and distributed by Ballard Pacific Resources.
