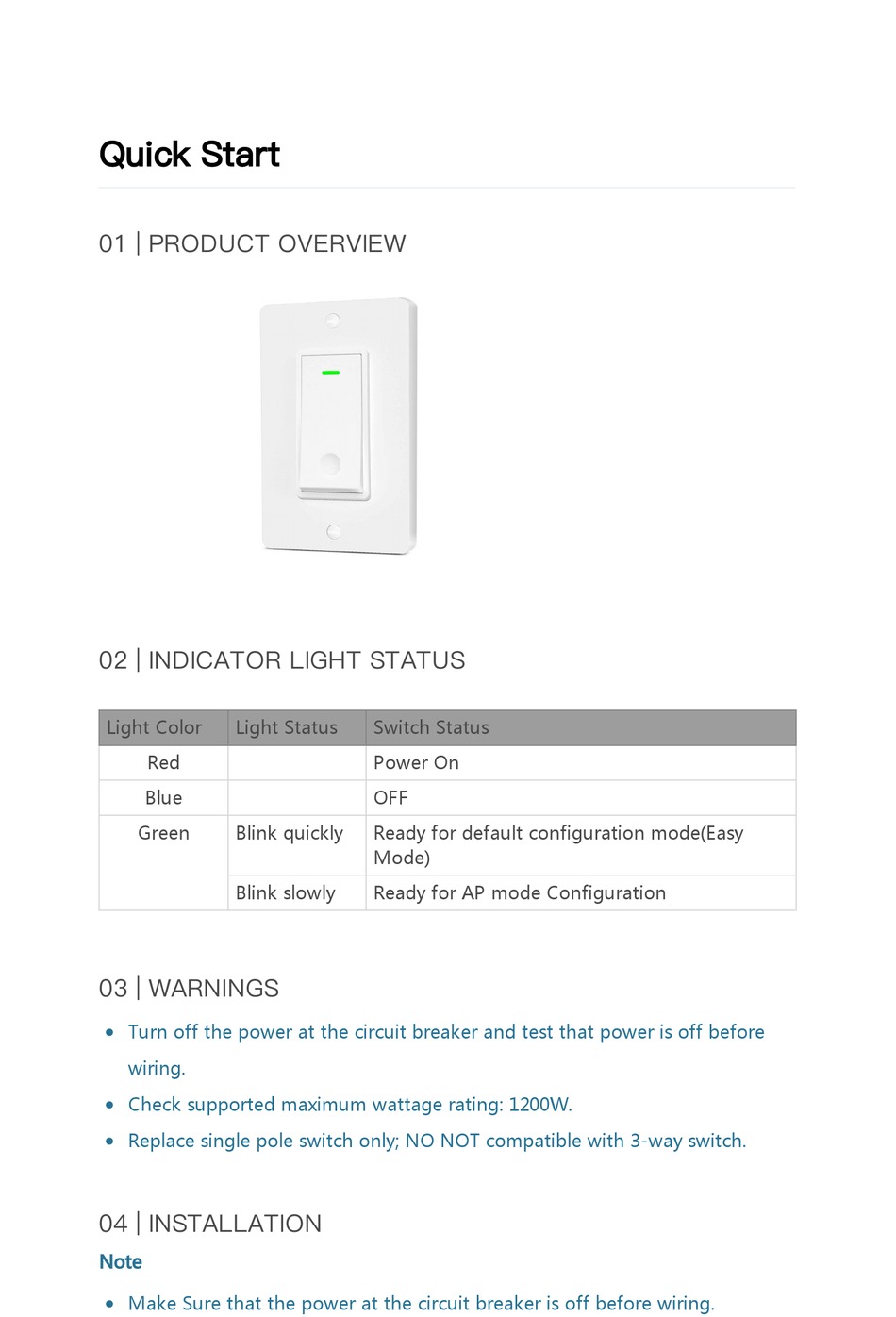

Quick Start

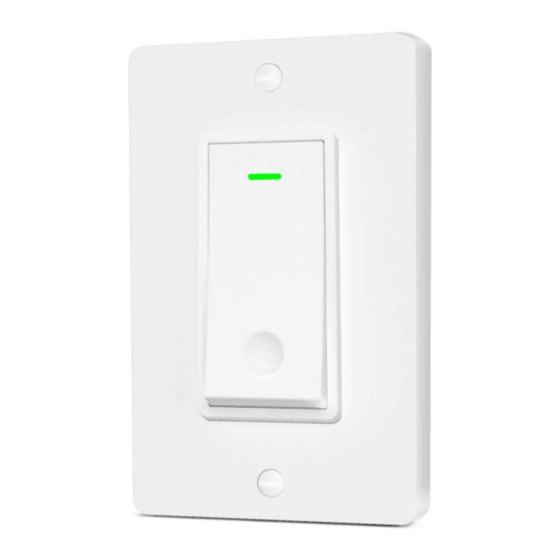

01 | PRODUCT OVERVIEW

02 | INDICATOR LIGHT STATUS
Light Color
Light Status
Red
Blue
Green
Blink quickly
Blink slowly
03 | WARNINGS
 Turn off the power at the circuit breaker and test that power is off before
wiring.
 Check supported maximum wattage rating: 1200W.
 Replace single pole switch only; NO NOT compatible with 3-way switch.
04 | INSTALLATION
Note
 Make Sure that the power at the circuit breaker is off before wiring.
Switch Status
Power On
OFF
Ready for default configuration mode(Easy
Mode)
Ready for AP mode Configuration

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart Switch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aoycocr Smart Switch

  • Page 1 Quick Start 01 | PRODUCT OVERVIEW               02 | INDICATOR LIGHT STATUS Light Color Light Status Switch Status Power On Blue Green Blink quickly Ready for default configuration mode(Easy Mode) Blink slowly Ready for AP mode Configuration 03 | WARNINGS ...
  • Page 2  Neutral Wire is required. Confirm the wall box contains a Neutral Wire(typically white). if the wall box doesn't have a Neutral Wire, please try another location in your home or call a professional electrician to install the switch.  The Wire colors indicated in this manual are the usual colors and may differ in some homes.
  • Page 3 Follow the wiring diagram to connect the switch wires to the wires in the wall box with the wire conductors Mount the switch with the provided screws and snap the wall plate on it Some warm t ips f or you: 1.
  • Page 4 flashing; 2. If t he smart swit ch can't be connect ed t o WiFi, please long press ON/OFF but t on f or 25 seconds t o reset t he swit ch or change t he easy mode t o AP mode which is more compat ible;...
  • Page 5 Easy Mode  Tap the icon"+" on the top right corner to add device; choose "switch(Wi- Fi)".  Confirm indicator rapidly blink. if not, press and hold the manual switch for 25 seconds until the LED indicator light blinks blue quickly.
  • Page 6  Tap "Confirm indicator rapidly blink".
  • Page 7  Enter Wi-Fi Password; wait for completing the connection.(Choose the 2.4G network and enter right password)
  • Page 8  Device has added successfully.
  • Page 9 AP Mode Note: 1. If you can't configure successfully with the Easy Mode(default configure mode), please try to connect with AP Mode. 2. Make sure indicator light is blink blue slowly.  Tap the icon"+" on the top right corner to add device; choose "Switch( Wi-Fi )".
  • Page 10  Tap "AP Mode" on the top right corner.
  • Page 11 Press and hold the manual switch for 25 seconds, until the indicator light  blink blue slowly(once per 3 seconds).
  • Page 12  Tap "Confirm indicator slowly blink".
  • Page 13  Enter Wi-Fi Password.
  • Page 14  Open WLAN setting, connect with "SmartLife-xxxx".
  • Page 15  Back to the app and continue to add the device and wait for completing the connection.

  • Page 16: Reset & Restart

    06 | RESET & RESTART Press and hold the button for 25 seconds until the indicator light blinks rapidly to reset if the switch isn't working - Reset one time (press and hold) to reach Easy Mode (quickly blinking blue) - Reset again (press and hold) to reach AP Mode (Slowly blinking blue) 07 | TROUBLESHOOTING GUIDE...
  • Page 17 8 | SUPPORT Aoycocr Smart Switch with 90 days unconditional full money-back guarantee, 2-year warranty, and lifetime support T ech Support ：support @aoycocr.com Facebook Page: ht t ps://www.f acebook.com/Aoycocr...
