Summary of Contents for ALP ROUND System

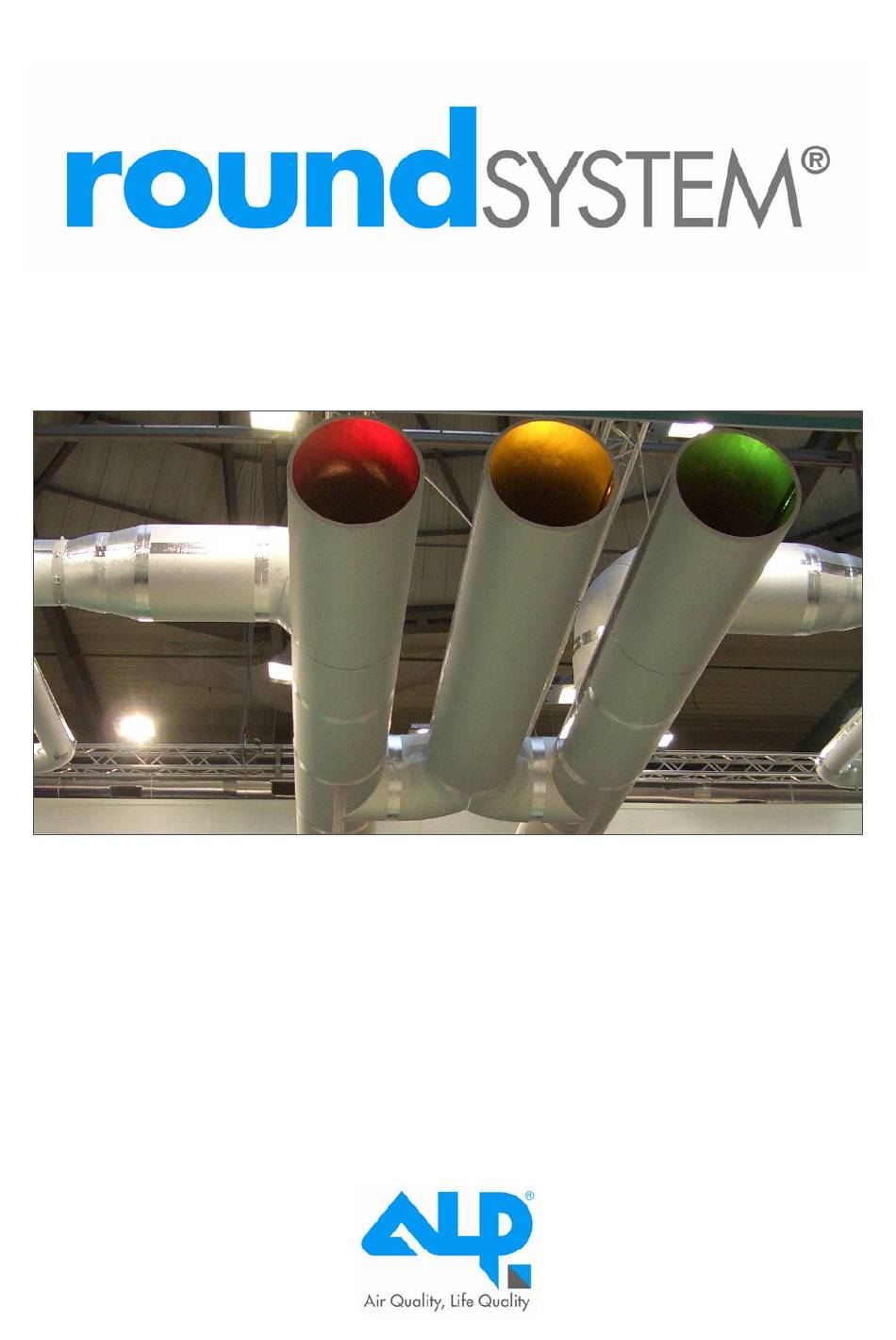

- Page 1 Pre-insulated Circular Air Ducts Fabrication Manual...
-
Page 2: Table Of Contents
Fabrication Manual Index • ALP ROUND System ....p. 2 - Technical Characteristics .... -
Page 3: Alp Round System
- Operative Pressure: max 3.500 Pascal - Sealing Class: Class B - Air Velocity: max 30 m/sec IMPORTANT Please refer to the last ALP ROUND Catalogue/Price List for a complete list of all available pieces, accessories and materials. - 2 -... -
Page 4: Straight Ducts
Fabrication Manual Straight Ducts Straight ducts are supplied in two half-shells, to be assembled. The procedure to assemble a Straight Duct is simple and fast. Mark the “female” side of the half-shells, by using the tape-marker. Mark it internally and externally. These line-marks will guide you when applying the aluminium tape. -
Page 5: Straight Ducts - Cut-To-Length
Fabrication Manual Straight Ducts - Cut-to-length Each section of straight duct is 4 m long. In case you need a shorter section of duct, we suggest to assemble the complete 4 m duct and then to cut it to the right length. Take a mesure from one end of the duct and mark the point. -
Page 6: Elbows
Fabrication Manual Elbows Elbows are supplied in two half-shells, to be assembled. The procedure to assemble an Elbow is simple and fast. Mark one of the half-shells, by using the tape- marker. Mark it internally and externally. These line-marks will guide you when applying the aluminium tape. -
Page 7: Reducers
Fabrication Manual Reducers Reducers are supplied in two half-shells, to be assembled. The procedure to assemble a Reducer is simple and fast. Mark one of the half-shells, by using the tape- marker. Mark it internally and externally. These line-marks will guide you when applying the aluminium tape. -
Page 8: Joint Systems
Fabrication Manual Joint Systems In ALP ROUND System n. 3 types of joints are available: - 1 Joint-flange - 2 Joint-neck – LONG - 3 Joint-neck – SHORT Joint-flange The Joint-flange is made in ABS Plastic. This Joint-flange is used to connect all ALP ROUND pieces. -
Page 9: Joint-Flange
Fabrication Manual Joint-flange – How to Install Apply PROFIX glue inside Apply PROFIX glue also on Install the Joint-flange on the Joint-flange. the duct, within 2 cm from the duct, without waiting the edge. time. Joint the ducts and fix them by using bolts & nuts. Install the adehsive foam gasket. -
Page 10: Duct Support
Fabrication Manual Supporting Duct Diameter Hangers Spacing ® Drop Rod - Diam. Gripple Wire Ring Type 6 mm 4 metres FR - N° 2 Example: Gripple ® Wire - 9 -...
