Summary of Contents for Coral Coast CWR036-1

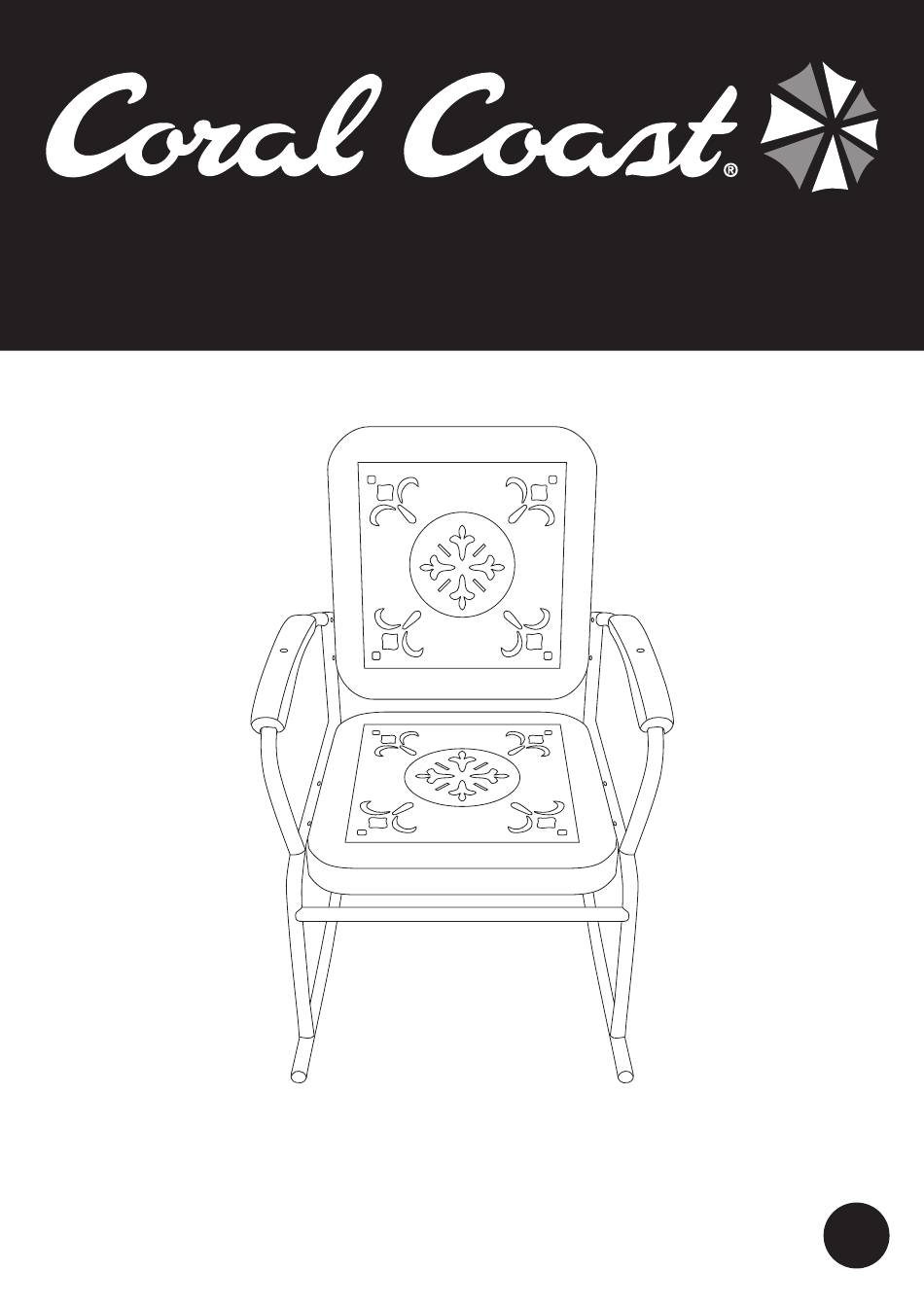

- Page 1 ITEM NAME : Coral Coast Paradise Cove Retro Metal Rocker SKU : CWR036-1,CWR036-2,CWR036-3 For assistance with assembly, please contact Customer Care Center 1-888-880-4884...
- Page 2 PRE-ASSEMBLY PREPARATION: THIS PACKAGE MAY CONTAIN SMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN • Please check that all parts and hardware are included before beginning assembly. • Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware.
- Page 3 TOOLS REQUIRED: Hex Wrench Qty: 1 Spanner Qty: 1 STEP-BY-STEP ASSEMBLY: STEP 1 Insert the rear connecting tube (E) to each of the leg side frames (C/D) as shown. Secure tube with bolt (1) . Assemble as shown. Back Back Front Front STEP 2...
- Page 4 STEP-BY-STEP ASSEMBLY: STEP 3 Attach the seat back (A) to side frames, on both sides with bolt (2) on the outside, washer (4) and nut (5) on the inside. Assemble as shown. A) Back STEP 4 Carefully line up holes in arm cover (F) with holes on chair frames. Using a quick downward push, snap cover over frame.
