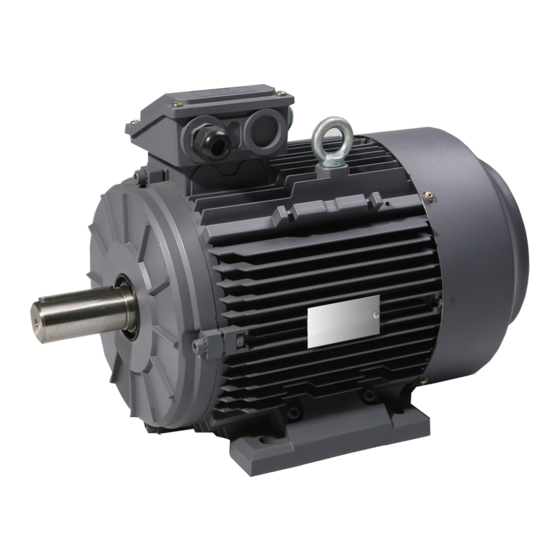

TECHTOP MS1/MS2 Series Installation, Operation, Maintenance And Safety Manual

TECHTOP MS1/MS2 Series Installation, Operation, Maintenance And Safety Manual

Low voltage motors

Advertisement

Installation, operation,
maintenance and safety manual
LOW VOLTAGE MOTORS
rev. 01
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS1/MS2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TECHTOP MS1/MS2 Series

  • Page 1 Installation, operation, maintenance and safety manual LOW VOLTAGE MOTORS rev. 01 ENGLISH...
  • Page 2: Table Of Contents

    Installation, operation, maintenance and safety manual LOW VOLTAGE MOTORS LIST OF CONTENTS p.04 1. GENERAL SAFETY WARNING 1.1 Declaration of Conformity p.04 1.2 Validity p.04 p.05 2. HANDLING p.05 2.1 Reception check p.05 2.2 Transportation and storage p.05 2.3 Lifting 2.4 Machine weight p.06 p.07...
  • Page 3 4. OPERATION p.10 4.1 Use p.10 4.2 Cooling p.11 4.3 Satety considerations p.11 5. MAINTENANCE p.11 5.1 General inspection p.12 5.2 Lubrication p.12 5.2.1 Machines with permanently greased bearings p.13 5.2.2 Motors with regreasable bearings p.14 5.2.3 Lubrication intervals and amounts p.15 5.2.4 Lubricants p.18...
  • Page 4: General Safety Warning

    Conformity declaration can be supplied when requested. 1.2 Validity The instructions are valid for the following TECHTOP electrical machine types, in both motor and generator operation. Series: MS1/MS2 (TM), MSB, MSD, MSC/MYC, MSV (TMV), MYV, T1A,T2A,T3A,TXA Series: MY/MYT, ML, MC Series: Y/Y2 ( TM ), YC, T1C ( TM ), T2C ( TM/TCF ), T3C ( TCF ), TCI/TCP, TG,TXC in frame sizes 56-500 LOW VOLTAGE MOTORS - Installation, operation, maintenance and safety manual - rev.
  • Page 5: Handling

    2.3 Lifting All TECHTOP motors above 25 kg are equipped with lifting lugs or eyebolts. Only the main lifting lugs or eyebolts of the motor should be used for lifting the motor. They must not be used to lift the motor when it is attached to other equipment.
  • Page 6: Machine Weight

    The total machine weight can vary within the same frame size (center height) depending on different output, mounting arrangement and auxiliaries. The following table shows estimated maximum weights for machines in their basic versions as a function of frame material. The actual weight of all TECHTOP’s motors is shown on the catalogue. Aluminum...
  • Page 7: Installation And Commissioning

    3. INSTALLATION AND COMMISSIONING WARNING! Disconnect and lock out before working on the motor or the driven equipment. 3.1 General All rating plate values must be carefully checked to ensure that the motor protection and connection will be properly done. WARNING! In case of motors mounted with the shaft upwards and water or liquids are expected to go down along the shaft, the user must take in account to mount some means capable of preventing it.
  • Page 8: Foundation

    WARNING! The motor frame must be grounded and the windings should be discharged against the frame immediately after each measurement to avoid risk of electrical shock. If the reference resistance value is not attained, the winding is too damp and must be oven dried. The oven temperature should be 90°C for 12-16 hours followed by 105°C for 6-8 hours.
  • Page 9: Slide Rails And Belt Drives

    Re-check the alignment after final tightening of the bolts or studs. 3.6 Slide rails and belt drives Fasten the motor to the slide rails as shown in Figure 2. Place the slide rails horizontally on the same level. Check that the motor shaft is parallel with the drive shaft. Belts must be tensioned according to the instructions of the supplier of the driven equipment. WARNING! Excessive belt tension will damage bearings and can cause shaft damage.
  • Page 10: Connection Of Auxiliaries

    The voltage and connection are stamped on the terminal box cover. Direct-on-line starting (DOL): Y or D winding connections may be used. For example, 690 VY, 400 VD indicates Y-connection for 690 V and D-connection for 400 V. WARNING! from 10KW Start/Delta (Y/D) starting is recommended Star/Delta starting (Y/D): The supply voltage must be equal to the rated voltage of the motor when using a D-connection.
  • Page 11: Cooling

    WARNING! Ignoring any of given instructions or maintenance of the apparatus may jeopardize the safety and thus prevents the use of the machine. 4.2 Cooling Check that the motor has sufficient airflow. Ensure that no nearby objects or direct sunshine radiate additional heat to the motor. For flange mounted motors (e.g.
  • Page 12: General Inspection

    Grease can cause skin irritation and eye inflammation. Follow all safety precautions specified by the gease manufacturer. Bearing types are specified in the respective product catalogs. Reliability is a vital issue for bearing lubrication intervals. TECHTOP uses mainly the L1-principle (i.e. that 99% of the motors are certain to make the life time) for lubrication.
  • Page 13: Machines With Permanently Greased Bearings

    These values are valid for permitted load values given in the product catalog. Depending on application and load conditions, see the applicable product catalog or contact TECHTOP. Data above reported will be in compliance with item 5.2, and are refered at the following motor working conditions, ambient temperature 25°C, max bearing working temperature 80°C.
  • Page 14: Motors With Regreasable Bearings

    Bearings lifetime values below reported, are valid for permitted load values given in the product catalog. Depending on application and load conditions, see the applicable product catalog or contact TECHTOP. Data above reported will be in compliance with item 5.2, and are refered at the following motor working conditions, ambient temperature 25°C, max bearing working temperature 80°C.
  • Page 15: Lubrication Intervals And Amounts

    As a guide, adequate lubrication for motors with regreasable bearings can be achieved for the following duration, according to L1. For duties with higher ambient temperatures please contact TECHTOP. The formula to change the L1 values roughly to L10 values: L10 = 2.7 x L1.
  • Page 16 Lubrication intervals according to L1 principle Amount of 500-900 Frame size grease 3600 rpm 3000 rpm 1800 rpm 1500 rpm 1000 rpm g/bearing Ball bearings -- Lubrication intervals in duty hour 10.000 13.000 18.000 21.000 25.000 28.000 9.000 11.000 17.000 19.000 23.000 26.500...
  • Page 17 Lubrication intervals according to L1 principle Amount of 500-900 Frame size grease 3600 rpm 3000 rpm 1800 rpm 1500 rpm 1000 rpm g/bearing Roller bearings -- Lubrication intervals in duty hour ≤18.5 4.500 6.000 ≤15 9.000 10.500 ≤11 12.000 12.000 >18.5 3.500 5.000...
  • Page 18: Lubricants

    5.2.4 Lubricants WARNING Do not mix different types of grease. Incompatible lubricants may cause bearing damage. When regreasing, use only special ball bearing grease with the following properties: – good quality grease with lithium complex soap and with mineral- or PAO-oil –...
  • Page 19: After Sales Support

    7.1 Noise levels Most of TECHTOP’s motors have a sound pressure level not exceeding 80 dB(A) at 50 Hz. Values for specific machines can be found in the relevant product catalogues. At 60 Hz sinusoidal supply the values are approximately 4 dB(A) higher compared to 50 Hz values in product catalogues.
  • Page 20: Troubleshooting

    8. TROUBLESHOOTING These instructions do not cover all details or variations in equipment nor provide for every possible condition to be met in connection with installation, operation or maintenance. Motor troubleshooting chart Your motor service and any troubleshooting must be handled by qualified persons who have proper tools and equipment. TROUBLE CAUSE SOLUTION...
  • Page 21 TROUBLE CAUSE SOLUTION Not applied properly Consult equipment supplier for proper type Voltage too low at motor Use higher voltage or transformer terminals or reduce load, check connections, check conductors for terminals because of line drop proper size Motor does not come up to Starting load too high Check the start load of the motor...
  • Page 22 TROUBLE CAUSE SOLUTION Motor misaligned Realign Weak support Strengthen base Coupling out of balance Balance coupling Driven equipment unbalanced Balance driven equipment Defective bearings Replace bearings Bearings not in line Repair motor Motor vibrates Balancing weights shifted Rebalance motor Contradiction between balancing of rotor and coupling Rebalance coupling or motor (half key-full key)
  • Page 23: Recycle Policy

    (insulation materials such as polyamide, polypropylene, etc.), elastomers and asbestos-free sealing materials. Old motors out of operation, our brand, TECHTOP European sales network will accept the motors to be recycled free of charge. LOW VOLTAGE MOTORS - Installation, operation, maintenance and safety manual - rev. 01 - 1.07.2016...
  • Page 24 Figure 1 - Connection Diagram LOW VOLTAGE MOTORS - Installation, operation, maintenance and safety manual - rev. 01 - 1.07.2016...
  • Page 25 Figure 2 - Belt Drive LOW VOLTAGE MOTORS - Installation, operation, maintenance and safety manual - rev. 01 - 1.07.2016...
  • Page 26 Released by/ Distribuito da: electric motors SIMOTOP GROUP SPA Via Ca’ Bianca 320 40024 Castel San Pietro (BO) - Italy Tel. +39 051 6951975 - Fax +39 051 941634 www.simotopgroup.com - info@simotopgroup.com...
