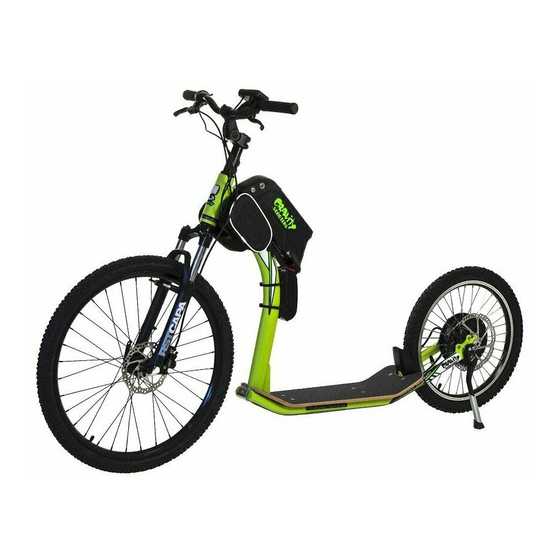

Summary of Contents for Gravity scooters e-M10
-
Page 1: Table Of Contents
USER MANUAL CONTENTS ABOUT THIS MANUAL P.2 CONGRATULATIONS P.2 ELECTRIC SCOOTERS DIAGRAM P.2 GENERAL LIMITS OF USE P.3 SAFETY RECOMMENDATIONS P.3 SCOOTER ASSEMBLY P.4 BEFORE EACH USE P.5 GENERAL ADVICE P.6 SCOOTER MAINTENANCE P.7 STARTING IN ELECTRIC MODE P.9 BATTERY P.9 OPTIMISING THE BATTERY AND TIPS FOR ELECTRIC USE P.10 METHODOLOGY OF STORAGE AND TRANSPORTATION P.10 WARRANTY P.10 SCOOTER’S DISMANTLING P.11 CE CONFORMITY DECLARATION P.11 TECHNICAL SERVICE P. 12 ELECTRICAL KIT DATA P. 12... -
Page 2: About This Manual
1. ABOUT THIS MANUAL - This manual has been created to help you get the most out of your electric GRAVITY. Carefully read, understand and follow the instructions given in this manual. Keep it in a safe place for future reference. - Please contact us through e-mail if you have any questions. We will guide you in the most complicated procedures and give you advice about anything referring to you GRAVITY. -
Page 3: General Limits Of Use
DIMENSION TABLE MODEL e-M10 182 cm 125 cm 62 cm 13 cm 8,5 cm 95-102 cm e-CORE 185 cm 127 cm 64 cm 15 cm 10,5 cm 99 cm e-CORE Air 185 cm 127,5 cm 64 cm 15 cm 10,5 cm 100,5 cm ELECTRIC SCOOTERS TABLE MODEL Weight with kit 500w 36v Weight with 1000w 48v Maximum weight of rider e-M10 20 Kg. 22 Kg. 150 Kg. e-CORE 24 Kg. 150 Kg. e-CORE Air 23 Kg. 4. GENERAL LIMITS OF USE There are many different kinds of scooter uses, designed for a variety of purposes. Failure to use your scooter in accordance with the recommendations detailed below may result in damages and accidents. -
Page 4: Scooter Assembly
5.13 Ensure that the battery key (Lock) is in the position that prevents the battery from being removed. Otherwise it could detach while underway. 5.14 Excessive vibration may cause a cable or circuit to become disconnected. This scooter is not designed for jumping or use on rugged terrain. 5.15 Do not touch the brake discs or wheels when they are turning, as there is a severe risk of injury by cutting. 5.16 Caution should be exercised in windy conditions. A gust of wind could knock the rider over. 5.17 Wear glasses or contact lenses if required when riding. 5.18 Do not use the scooter with insufficient lighting. 5.19 The scooter is not suitable for use by young children. 5.20 Continued use of the scooter may cause the rider to suffer tiredness or fatigue, especially on uneven terrain. 5.21 The scooter can produce a maximum noise level of 70 dB when operating. 6. SCOOTER ASSEMBLY. You will receive the electric scooter adjusted and partially assembled; you will only need to assemble the handlebars, wheels, kickstand and connect the motor: 6.1 Assemble the handlebars . To... -
Page 5: Before Each Use
needed to turn the lever, repeat the previous operation but this time loosens the quick-release nut in anti- clockwise direction. Repeat the procedure as many times as necessary until the coupling is fastened as required. 6.5.5 The quick-release mechanism must be pointing in such a way that it does not interfere with the other scooter’s accessories. 6.5.6 If the quick-release mechanism is faulty, take your scooter to a specialized repair shop. -
Page 6: General Advice
CAUTION: If the quick-release mechanisms are not set properly, the wheel or wheels may work loose and come off completely. You may lose control of the scooter as a result and fall. Make sure that the quick-release mechanisms are properly set and closed before using the scooter. Turn both wheels and check the rim is in line with the frame and the brake blocks. If the rim does not rotate freely, take your scooter to a specialized repair shop. 7.6 Checking your brakes . Make sure the front and rear brakes are working correctly. The GRAVITY uses disk brakes. The brake levers are connected to pads that expert pressure on a disc attached to the wheel hubs. (See attached manufacturer’s instructions). CAUTION: If your brakes do not operate correctly, you may lose control of the scooter and fall. Check the brake system carefully before each ride and if you detect a problem, do not use the scooter until it has been resolved. -
Page 7: Starting In Electric Mode
very sharp and can cut you. Do not touch the disk or the brakes when they are hot or still turning. Disk brakes use a highly corrosive brake fluid. Avoid contact with skin and the scooter, as it will corrode the paint. Mechanical disk brakes or V-Brake. This brake system comprises: brake lever, brake cables and sleeves, disk brake pads, disk brake disk/disk brake bodies. CHECKS TO BE MADE: After riding the scooter squeeze the brake lever tightly 10 times. The lever should not touch the handlebar. If it does, the brake system should be bled. The job requires specialist equipment and knowledge,should be carried out to specialized repair shop. Check that there is no oil, grease or any other type of dirty on the disk. Check the disk brakes for signs of wear once a month. If the pads are less than 1mm thick they should be replaced. You should also check that the pads are in the correct position, at a distance of between 0.25 and 0.75 mm from the disk when the brakes are not being applied. -
Page 8: Battery
10.3 Grip the scooter with both hands on the hand grips. 10.4 Raise the kickstand, position 1 (Safety Rules diagram). 10.5 Accelerate by moving the "Throttle" lever down with your thumb (see Figure 10.2). 10.6 Once moving, place both feet on the board in a comfortable and balanced position, preferably in a surfer position with knees slightly bent. 11. BATTERY SAFETY INSTRUCTIONS AND WARNINGS FOR THE CORRECT USE OF BATTERIES You should read these Safety and Warning Instructions before using or charging your batteries. • Failure to read and follow the instructions below may result in fire, personal injury and property damage. • These batteries must be charged and used as indicated. Gravity Scooters, its distributors and its battery providers will not assume any responsibility in case of an • accident caused by their batteries due to misuse, bad load or for not having followed all the safety measures and instructions indicated here. - Page 9 11.3 Security Recommendations 11.3.1 The use of a programmable electric timer prior to the battery charger plugging (to prevent the batteries from being charged without surveillance) is recommended. In this way we can program the timer to let the current pass to the charger only at the time when there are people present who can monitor the charge of the batteries and avoid possible misses. 11.3.2 Installing a smoke detector in the cargo area is recommended. 11.3.3 Do not charge the batteries during a thunderstorm. 11.3.4 Have fire extinguishers at the entrance of the enclosure chosen to charge the batteries, not inside. Thus you will have a fire extinguisher near the spotlight and you will be able to access the extinguishers quickly without danger of burning. Never put out this fire with water. You can use soil, sand or CO2 extinguishers or other indicated extinguishers for electrical fires.
-
Page 10: Optimising The Battery And Tips For Electric Use
reasons it is necessary to dispose of it. To this, the end user who acquires the product must know the regulations in force in each municipality and / or locality based on the waste of electrical and electronic equipment. 11.6.5 The user who purchases this product must be aware and responsible for the potential hazards of the components on the environment and on human health, as a consequence of hazardous substances. 11.6.6 Never deposit the product in a conventional container of citizen scope without prior dismantling and knowledge of the components it incorporates. 11.6.7 If the procedure to be followed is unknown, check with your city council for more information. 11.7 Responsibilities. 11.7.1 Failure to observe the warnings and instructions in this manual may cause damage to the battery and consequently: accidents, serious injuries or death. 11.7.2 Failure to comply with the instructions contained in this manual is the responsibility of the battery user. 11.7.3 Use in conditions other than those described here could cause damage to the battery and even an accident. 11.7.4 The user of this product recognizes and accepts the risks associated with the use of these batteries that include, but are not limited to, the risk of breakage of any part or component that could cause accidents, serious injuries or death. Buying and using this product, the user expressly and voluntarily acknowledges and accepts these risks of active or passive negligence of GRAVITY Scooters, or hidden, latent or manifest defects of the product. The user also accepts to exempt GRAVITY Scooters SL and its distributors and resellers from any responsibility for possible damages within the limits provided by law. 12. OPTIMISING THE BATTERY AND TIPS FOR ELECTRIC USE To save battery power and avoid overheating the engine and the controller: 12.1 Start the scooter with foot assistance, then once the scooter is moving apply the throttle. 12.2 When travelling downhill, allow to free wheel without accelerating once the desired speed is obtained. 12.3 Alternate intervals of motoring with others in which the scooter free wheels. 12.4 Assist motor with propulsion kicks on sharp inclines or during acceleration. This saves a lot of battery power and gives some exercise. 12.5 Stop applying the throttle and maintain speed with small accelerations once optimal speed is reached. -
Page 11: Warranty
14. WARRANTY The guarantee covers any equipment or manufacturing defect, with the replacement of defective parts with compliant parts for the same use. Modification of any part of the scooter, including the chassis, fork and other components may make your scooter unsafe and means that the scooter no longer meets our specifications, therefore voiding its guarantee. CAUTION Never modify the chassis assembly. Do not carry out any sanding, drilling, filing or any other operation that could damage the chassis. APPLICATION OF THE GUARANTEE: • No impacts: the product must show no signs of damage due to abnormal conditions of use. -
Page 12: Ce Conformity Declaration
16. CONFORMITY DECLARATION CE We declare under our sole responsibility that the team: Brand name: GRAVITY SCOOTERS SL Year of construction: 2019 Country of Manufacture: Spain Equipment Description: TYPE MODEL Off-road scooter with power-assisted Motor 500w 36v M10 -e propulsion eléctrico DH Core -e Motor 1000w 48v DH Core Air -e It complies with the essential requirements of the directives: - Conform declaration model EN 17050. - Machinery Safety Directive 2006/42 / CE. Deutsch [German]: Hiermit erklärt Gravity Scooters SL., dass sich das Gerät “ELECTRIC SCOOTER” in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. English: Hereby, Gravity ScootersSL., declares that this “ELECTRIC SCOOTER” is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish]: Por medio de la presente Gravity Scooters SL. Declara que el “ELECTRIC SCOOTER” cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la directiva 1999/5/CE. Français [French]: Par la présente Gravity Scooters SL., déclare que l'appareil “ELECTRIC SCOOTER” est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian]: Con la presente Gravity Scooters SL., dichiara che questo “ELECTRIC SCOOTER” è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Português [Portuguese]: Gravity Scooters SL., declara que este “ELECTRIC SCOOTER” está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. You can consult the updated CE declaration of conformity on our website: www.gravity-scooters.com Technical File prepared by: Gravity Scooters SL Person responsible for signing this declaration: Judith García Pares, director of Gravity Scooters SL. Place and date: Mediona (Barcelona) (Spain) November 11, 2019. Signature and stamp:... -
Page 13: Technical Service
17. DATA OF THE TECHNICAL SERVICE. (Data to be completed by the seller) Name: VAT-No: Address: Phone: e-mail: MANUFACTURER. GRAVITY SCOOTERS S.L. Anselm Clavé 43, 08773 Mediona (Barcelona) SPAIN. Info@gravityfreescooters.com 18. ELECTRICAL KIT DATA: - Brand: Gravity Scooters. - Model: kit 500w 36v. - Serial number: …........- Year of construction: 2017 - Weight of kit: 5Kg. - Motor power: 500W. - Battery: 14,2 Ah. - Voltage :36v. - Maximum noise : 70dB. - Maximum speed. 25 km /h...
