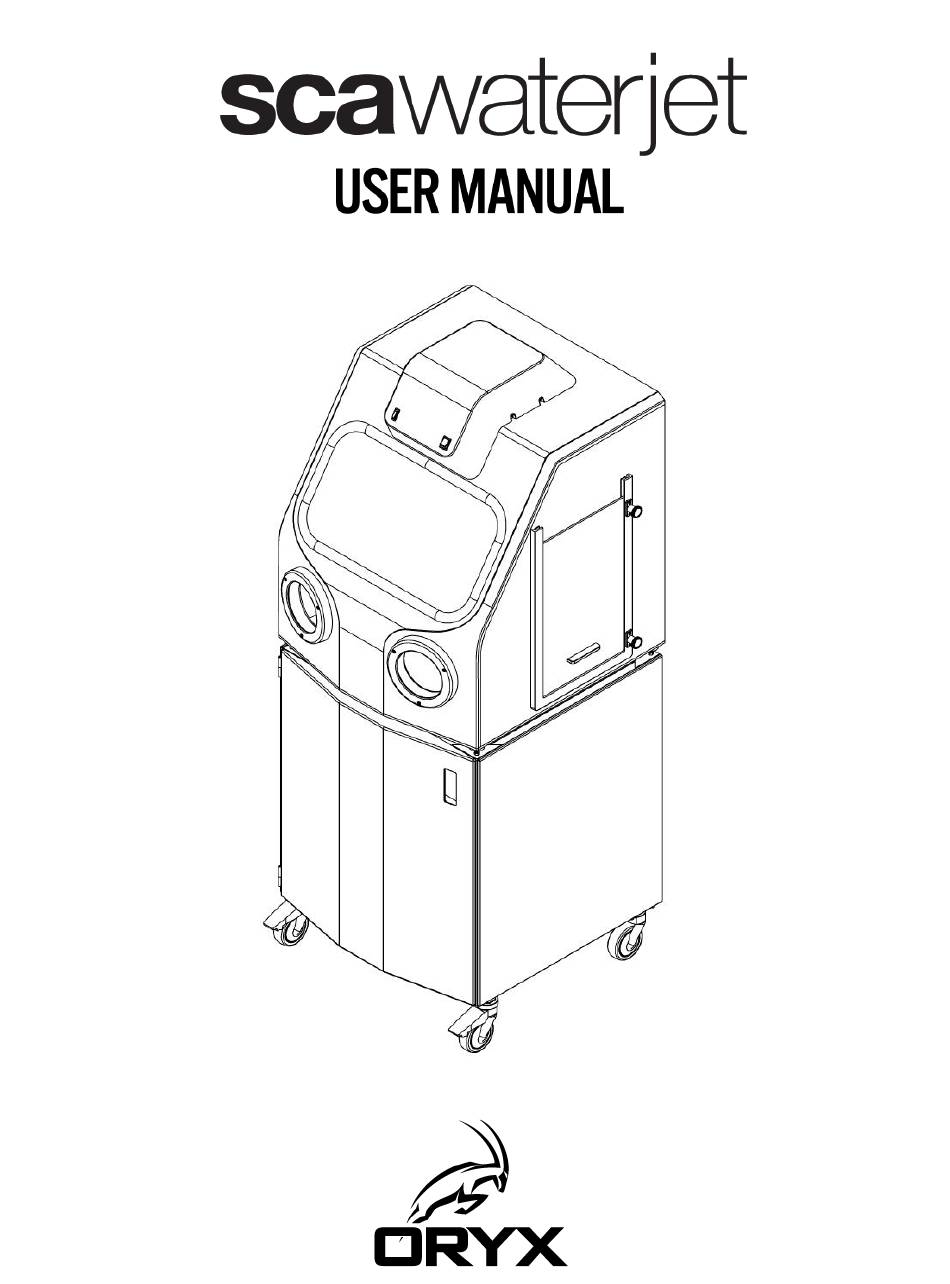

Summary of Contents for Oryx SCA Waterjet
- Page 2 This page intentionally left blank.
-
Page 3: Table Of Contents
Long Term Maintenance and Inspection .....................18 Glove Replacement Procedure ......................19 Troubleshooting ............................21 Specifications ............................23 Customer Support ............................24 Contact ORYX Support .........................24 Replacement and accessory parts .......................24 Supplemental Information ........................25 SCA Waterjet Cleaning System Limited Warranty ................25 Declaration of Conformity ........................26... -
Page 4: Introduction
• Only properly trained personnel should operate the SCA Waterjet. • Do not operate the SCA Waterjet if the cabinet side access door into the work interior is not closing or a hose or wand appears to be damaged. •... -
Page 5: Waste Disposal
Pour votre propre protection et pour assurer le bon fonctionnement du SCA Waterjet, veuillez suivre ces précautions de sécurité. Le fait de ne pas utiliser le SCA Waterjet pour la fonction prévue peut entraîner des blessures et annulera la garantie. -
Page 6: Overview
The SCA Waterjet can be operated while standing or seated. How It Works The interior work area of the SCA Waterjet is accessed via two gloved ports on machine front, allowing operators full control of models inside the work area. The integral Pump mounted on the mobile support frame delivers selectable high and low cleaning power with two handheld jet wands (Coarse and Fine), each with a defined degree of spray directivity: 15°... -
Page 7: Sca Waterjet System Contents
SCA Waterjet System Contents NOTE: The SCA Waterjet cleaning system as shipped is for Mobile setup only – please call Oryx for additional system components for the Stationary direct mode hook-up. The items shown in the figure below are shipped standard with the SCA Waterjet. -
Page 8: Machine Operation Features
Never engage the Foot Switch without being properly positioned to operate the SCA Waterjet and having a firm grasp FIRST of the selected jet wand. Ne jamais engager la pédale de commande sans être correctement positionné pour faire fonctionner le SCA Waterjet et avoir une prise ferme PREMIER de la baguette à jet sélectionnée... - Page 9 Figure 4 Wand Selector Valve & Jet Wands Wand Selector Valve Right – Coarse jet wand is activated. Center OFF Position – Neither jet wand is activated, valve is closed, and Pump will not run. Left – Fine jet wand is activated. Figure 5 Coarse Jet Wand Hose Hanger Hose Hanger keeps Hose clear of Side Access Door opening when loading and unloading models into and from the work interior.
- Page 10 Figure 6 Side Access Door Side Access Door allows entry into the interior work area to load and unload models, and to remove drain filters for cleaning. Side Access Door operation Open – Grasp door handle with left hand and retract lower latch plunger with Slide the door up until door upper latch plunger locks into place.
-
Page 11: Setup
Power Requirements: North America – 120VAC, 60Hz, 15A. Europe – 230VAC, 50Hz, 8A • The electrical outlet must be located within 6 ft (2 m) of the SCA Waterjet. Do not use an extension cord or power strip with the system. - Page 12 Figure 7 Install the Cabinet Door (hardware included). Figure 8 Install the Fine and Coarse Filter Screens (interior work area). Figure 9 Lock Front Casters after locating the SCA Watejet.
- Page 13 Figure 10 Level Cabinet side to side and angle front to back with Adjusting Screws (2). 0˚ .5˚ Adjusting Screws Adjusting Screws Figure 11 Holding Tank, Drain Tube and Pick-up Tube with Inlet Filter...
-
Page 14: Stationary Setup
Oryx Support. Pour connecter le Waterjet directement à l'alimentation en eau et au drain de l'installation, des composants supplémentaires et des instructions sont nécessaires: contactez le support Oryx. Operation For your Vision and Hearing Protection, Safety Glasses and Ear Protection are REQUIRED. -
Page 15: Operator Position
Operator Position The SCA Waterjet cleaning system can be operated from the standing position with the front door closed or from a sitting position with the front door open – See Figure 12 (2) Illustrations. -
Page 16: Model Cleaning
Use the High-Power setting for rigid and thick-walled models. Use the Low Power setting for delicate and thin-walled models. Cleaning process • Power on the SCA Waterjet and switch pump to appropriate cleaning power. • Select the appropriate wand for the application. -
Page 17: Daily Maintenance And Inspection
• Place model in the SCA waterjet interior work area and close cabinet side access door. • Place arms in protective gloves. • Hold model in left hand and firmly grasp selected wand in right hand, See Figure 13 above. -
Page 18: Long Term Maintenance And Inspection
Long Term Maintenance and Inspection – See Figure 14 (3) Illustrations 1. Wiper Blade – Check for wear or damage every 6 months. Best to replace blade every 6 months if machine is used daily, replacement part #100413 2. High Pressure Hoses – Check for damage, wear or cracking every 6 months, see figure. -
Page 19: Glove Replacement Procedure
Figure 14 Maintenance and Inspection Illustrations: 100172 100172 100288 100285 100247 100289 100358 100378 Glove Replacement Procedure - See Figure 15 (2) Illustrations 1. Remove left and right Glove Outer Collar. 2. Remove old Gloves from Glove Inner Collar. 3. Position new Gloves with thumbs up, insert through arm holes (a) and fold edge of arm sleeve over and around Inner Glove Collar (b). - Page 20 Figure 15 Glove Removal and Replacement Procedure.
-
Page 21: Troubleshooting
Troubleshooting Risque élevé de choc électrique High Risk of Electrical Shock Débranchez toujours l'appareil de Always disconnect the unit from power l'alimentation Before removing the back panel! Avant de retirer le panneau arrière! Problem Probable Causes What to Do Power switch Power switch is not Press power switch on control panel of the unit to the Indicator... - Page 22 Problem Probable Causes What to Do Fill holding tank with a minimum of 4 gallons of clean Holding tank water cool water. Pump runs but level is low water discharge at the nozzles is low or intermittent Pick-up tube inlet filter Remove filter and inspect is clogged •...
-
Page 23: Specifications
Level floor able to support 450 lbs Power requirements A grounded electrical outlet (North America: 110VAC, 20A, 60Hz, single phase. Europe: 220VAC, 16A, 50Hz) within 2 m (6 ft) of the SCA Waterjet Environmental & Operation Specifications Operating temperature 5⁰C – 40⁰C (41⁰F – 104⁰F) -
Page 24: Customer Support
1. Try the Troubleshooting table in this manual or at www.oryxadditive.com/support 2. Note the SCA Waterjet model number, part number and serial number (found on the back of the unit, 120V version shown as an example) If the unit is covered by an extended warranty, contact the Authorized Reseller from whom the unit was purchased. -
Page 25: Supplemental Information
Limited Warranty Period SCA Waterjet Cleaning System 1 year All new SCA Waterjet Cleaning Systems are warranted exclusively by Oryx Additive, Inc.’s (“Manufacturer”) limited warranty as follows: Each SCA Waterjet Cleaning System (“System”) and its components (“Components”), except those listed below under limits and exclusions, is warranted against defects in the materials and workmanship for a period of one (1) year from the date of installation at the end user’s... -
Page 26: Declaration Of Conformity
Declaration of Conformity Visit www.oryxadditive.com to download Regulatory Compliance Certificates.
