Summary of Contents for AFSA 1258

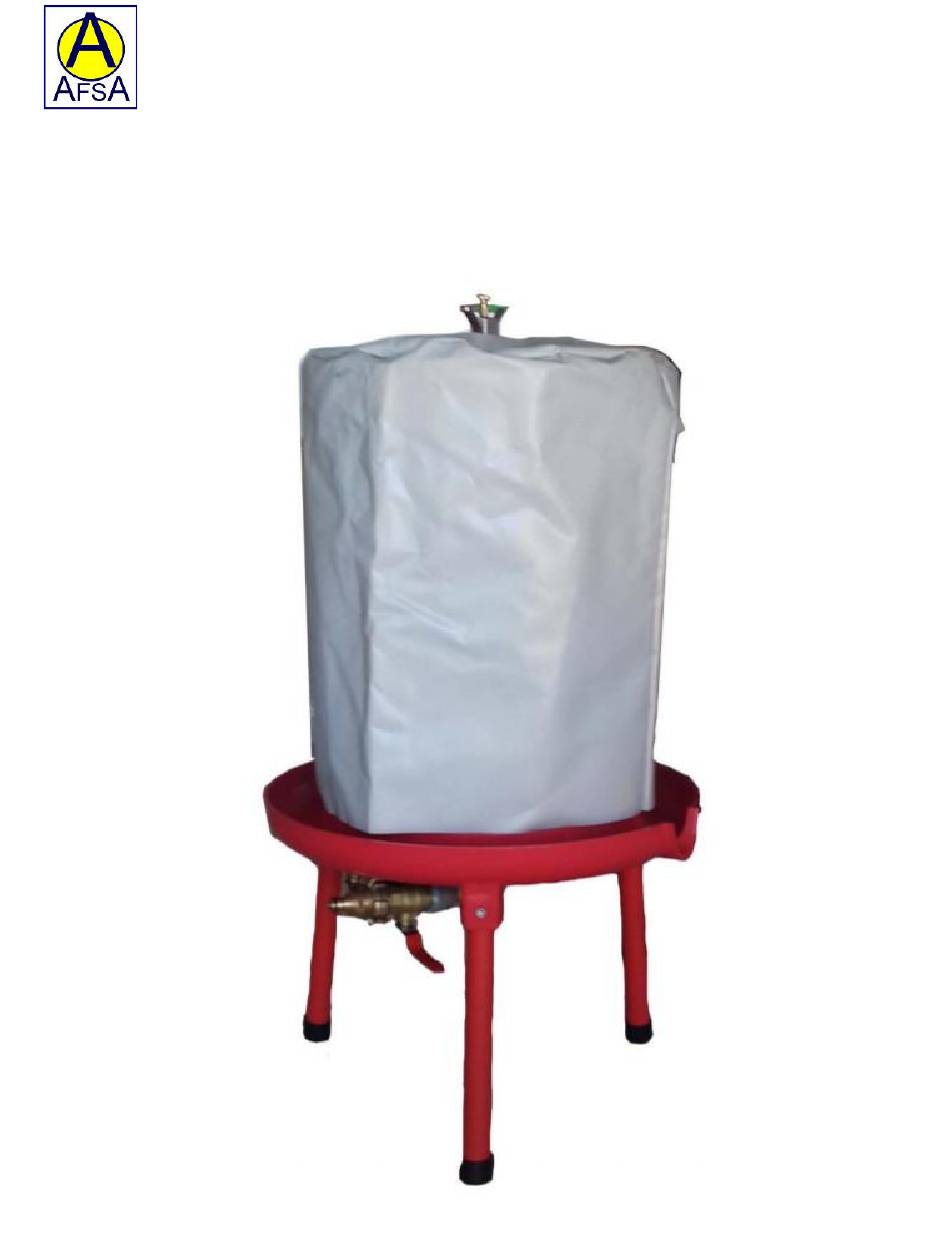

- Page 1 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Manual for Water powered Fruit Press Part.no 1258...
- Page 2 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu User Manual FP20H – FP40H Water Powered Fruit Press – Part.no 1258 Page 3. General Information Page 3. Safety guide Page 4. Parts Diagram Page 5. Technical data Set Up Page 6 - 9.
- Page 3 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu General Information The water powered fruit press has been created for the use of pressing fruits (juicing) from ground, stoned and squeezed fruits such as grapes, berries, apples and oranges.
- Page 4 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Parts Diagram: The pressure valve can be adjusted to a maximum of 3 bar water pressure. By maximum pressure the vent will release and water will spill. Make sure the vent is clear of any debris.
- Page 5 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Technical data: Capacity Litres Height Diameter Height (juice outlet) Weight Connecting cable GEKA connection R 3/4" Outlet pipe R 3/4" hose Max water pressure 3,2 Bar Before first use: Before 1st use, clean all surfaces with warm soapy water & rinse with clean cold water.
- Page 6 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Build & operation: Components see page 4. Check all components are present (fig 1). After the press has been removed from carton mount the 3 legs (2) onto the base plate (1) using the bolts provided. Make sure the press is built on a flat, solid surface.
- Page 7 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Remove wing nut (9), cylinder lid (8), & steel cylinder (7). Place fabric mesh inside cylinder with generous overlap top & bottom and re-fit cylinder (fig 3). Fill press with the chopped apples (fig 4), place top of mesh over apple pulp. Re-fit cylinder lid and hand tighten the wing nut.
- Page 8 In our tests a second press of the pulp was a waste of time & water, giving less than ½ a litre of juice. As a yard stick 26kg of purchased (not juicy) Bramleys, pulped in a AFSA Sweden AB fruit chopper part number 1256 (not supplied) gave 13 litres of juice.
- Page 9 Tel. +46 142 60 21 20 Mejl: info@afsa.nu Webbutik: www.afsa.nu Fig 3 Fig 4 Fig 5. Outlet valve (closed) & pressure gauge...
