Summary of Contents for SKAARHOJ Atem TCP Link

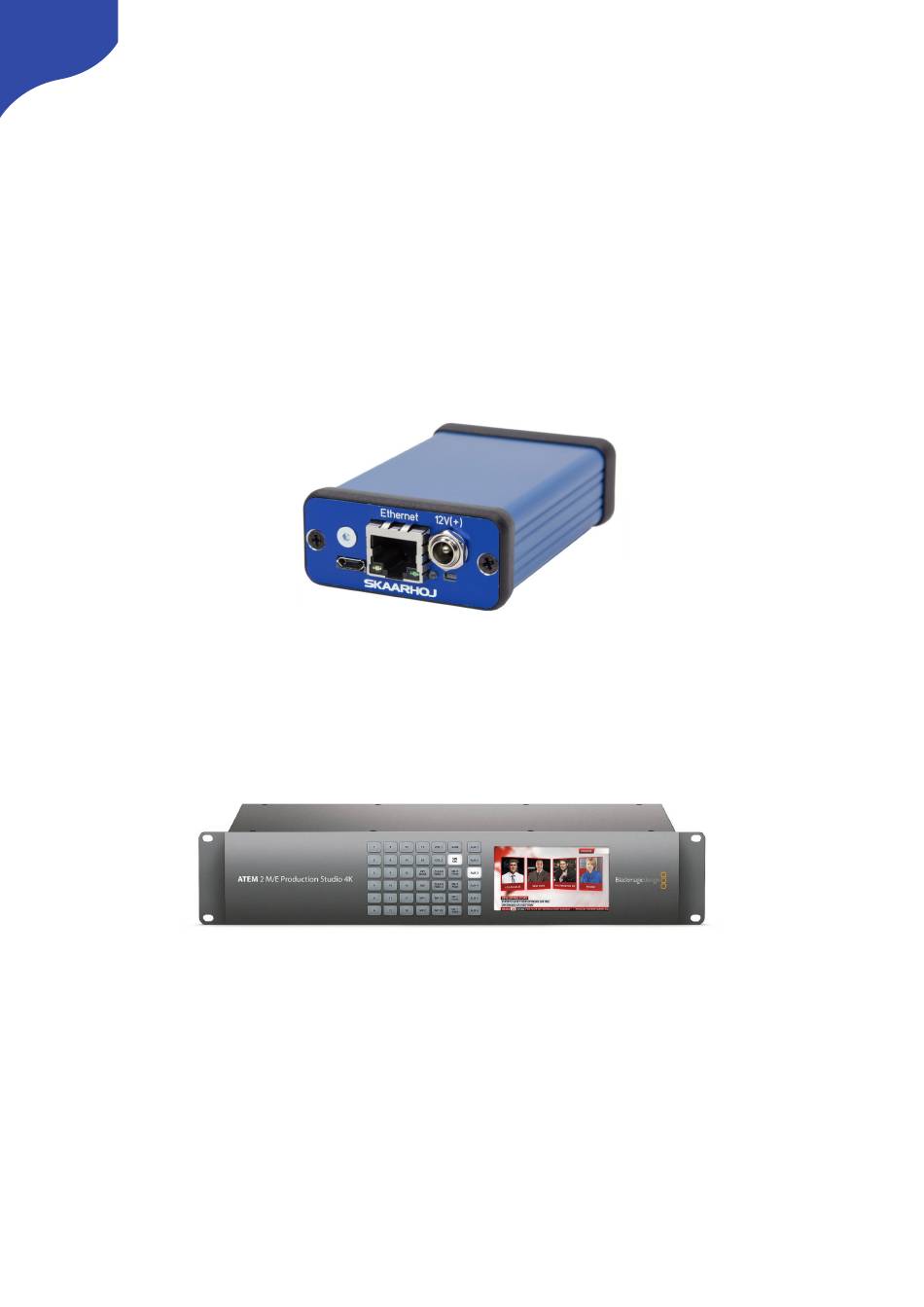

- Page 1 SKAARHOJ DEVICE CORES SKAARHOJ Atem TCP Link The ATEM TCP Link establishes a connection to an ATEM switcher for programs and devices without native ATEM protocol support.
-
Page 2: Table Of Contents
SKAARHOJ DEVICE CORES Introduction Update December 2020 Update May 2020 Update January 2020 Known Limitations Port Information Set Up Firmware Updater Shipping Configuration Changing IP Information Confirm Connection Establishing a Telnet Connection Controlling You ATEM Extract of ATEM-TCP Link Commands... -
Page 3: Introduction
TCP Link and we have integrated with the ATEM switchers for a long time. When using the ATEM TCP Link one can connect to the ATEM Switcher directly without the need of running ATEM Software Control Panel on your computer. But you can, and any change made either way will be reflected on each device. -
Page 4: Set Up
Set Up Firmware Updater You won’t get far without the SKAARHOJ Firmware Updater application. Download it www.skaarhoj.com/ support/firmware-updater/. Install, run it and connect your controller. Please notice the USB cable is only to be used for configuration and firmware upgrade. The USB plug is not designed to be connected during normal operation. -
Page 5: Changing Ip Information
ATEM has initialized Connection to ATEM Switcher established! If the SKAARHOJ controller is unable to locate the ATEM the network the serial monitor will report: .Connection to ATEM Switcher has timed out - reconnecting! Continuously connecting to ATEM switcher on IP 192.168.10.240... -
Page 6: Establishing A Telnet Connection
SKAARHOJ DEVICE CORES Establishing a Telnet Connection A Telnet connection can be established from Terminal on a Mac or Command Prompt on a Windows computer. In order to establish a Telnet connection use the port 8899 and the IP address of the ATEM-TCP Link entered into Terminal or Command telnet 192.168.10.99 8899... -
Page 7: Controlling You Atem
SKAARHOJ DEVICE CORES Controlling You ATEM Extract of ATEM-TCP Link Commands This list is only of the base command, you will need to test using your Atem to discover the individual parameters of each command. Items marked in Blue only feedback the current state of the ATEM. - Page 8 SKAARHOJ DEVICE CORES KeyDVEBorderBevelPosition, CameraControlIrisf, KeyDVEBorderOpacity, CameraControlFocus, KeyDVEBorderHue, CameraControlGain, KeyDVEBorderSaturation, CameraControlWhiteBalance, KeyDVEBorderLuma, CameraControlSharpeningLevel, KeyDVELightSourceDirection, CameraControlZoomNormalized, KeyDVELightSourceAltitude, CameraControlZoomSpeed, KeyDVEMasked, CameraControlColorbars, KeyDVETop, CameraControlLiftR, KeyDVEBottom, CameraControlGammaR, KeyDVELeft, CameraControlGainR, KeyDVERight, CameraControlLumMix, KeyDVERate, CameraControlHue, DownstreamKeyerFillSource, CameraControlShutter, DownstreamKeyerKeySource, CameraControlLiftG, DownstreamKeyerTie, CameraControlGammaG, DownstreamKeyerRate, CameraControlGainG, DownstreamKeyerPreMultiplied, CameraControlContrast, DownstreamKeyerClip, CameraControlSaturation,...
- Page 9 SKAARHOJ DEVICE CORES SuperSourceKeySource, AudioMixerMonitorMute, SuperSourceForeground, AudioMixerMonitorSolo, SuperSourcePreMultiplied, AudioMixerMonitorSoloInput, SuperSourceClip, AudioMixerMonitorDim, SuperSourceGain, AudioMixerLevelsSources, SuperSourceInvertKey, AudioMixerLevelsMasterLeft, SuperSourceBorderEnabled, AudioMixerLevelsMasterRight, SuperSourceBorderBevel, AudioMixerLevelsMasterPeakLeft, SuperSourceBorderOuterWidth, AudioMixerLevelsMasterPeakRight, SuperSourceBorderInnerWidth, AudioMixerLevelsMonitor, SuperSourceBorderOuterSoftness, AudioMixerLevelsSourceOrder, SuperSourceBorderInnerSoftness, AudioMixerLevelsSourceLeft, SuperSourceBorderBevelSoftness, AudioMixerLevelsSourceRight, SuperSourceBorderBevelPosition, AudioMixerLevelsSourcePeakLeft, SuperSourceBorderHue, AudioMixerLevelsSourcePeakRight, SuperSourceBorderSaturation, AudioMixerTallySources, SuperSourceBorderLuma, AudioMixerTallyAudioSource, SuperSourceLightSourceDirection, AudioMixerTallyIsMixedIn, SuperSourceLightSourceAltitude, TallyBySourceSources,...
-
Page 10: Command Structure Examples
SKAARHOJ DEVICE CORES Command Structure Examples For detailed reference please see: https://www.skaarhoj.com/fileadmin/BMDPROTOCOL.html The correct syntax for a Cut on 1 M/E is: performCutME:0=1 • The correct syntax for a Cut on 2 M/E is: performCutME:1=1 • The correct syntax for a Auto Transition on 1 M/E is: performAutoME:0=1 •... - Page 11 SKAARHOJ DEVICE CORES If you want to set AUX1 to CAM4 use AuxSourceInput:0=4 • If you want to set PGM on ME1 to CAM3 use ProgramInputVideoSource:0=3 •...
-
Page 12: Updating Firmware
On Mac On PC Please note that though you need the SKAARHOJ Firmware Updater to do firmware updates, you do not use “Update Firmware” in the Firmware Application as this will render the firmware on the device useless. If “Update Firmware” have been pressed, please re-upload the proper firmware .hex file found in the... -
Page 13: Change Log
SKAARHOJ DEVICE CORES Change Log v.1.5.5 -Add support for record and stream for Atem Mini Pro -Fix SuperSourceBorder parameters control -Added support for Downstream Keyer parameters -Added support for Keyer Type and parameter control v1.5.4 -Fix Downstream Keyer command v1.5.3 -Prevent firmware-updater from uploading wrong file... -
Page 14: Troubleshooting
SKAARHOJ DEVICE CORES Troubleshooting Error on Check: Your controller is not yet registered If you press Update Firmware you might experience a message from the Firmware Updater stating that the connected controller is not fully registered yet. The Atem-TCP Link uses Stand Alone firmware and is not updated through the “Update Firmware”... - Page 15 SKAARHOJ DEVICE CORES If none of the above brings up the USB port, you may try this procedure but only after clearing it with the SKAARHOJ support team!: • Locate the small hole just below the config button • Power on the controller and press this tiny button for a second and release. You may repeat this.
-
Page 16: Network Recommendations Facts
Remember a SKAARHOJ controller and client must be on the same subnet (192.168.10.* or one you set up in the controller). If you have multiple SKAARHOJ units connected to the same network they need to have different IP addresses! Power over Ethernet (PoE) Specifications... -
Page 17: Weee Information
SKAARHOJ DEVICE CORES WEEE Information For private households: Information on Disposal for Users of WEEE Figure 1 This symbol (figure 1) on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.
