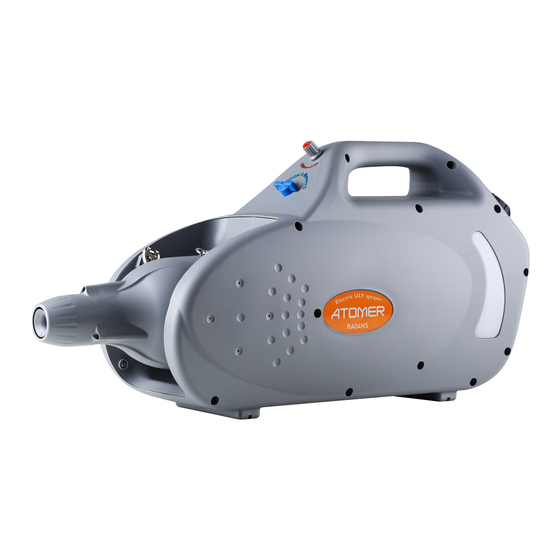

ATOMER II Manual

Ultra Low Volume Sprayer
(RA04HS)
Please use this product correctly after reading this manual before use.
□
Specifications
Type Name
Rated Voltage
Rated Current
Dispensing Capacity
Discharge Rate
Spray Distance
Particle Size
Dimensions 655×200×310mm (540×200×310mm)
Weight
Length
□
Product Configuration
Main body 1 set
●
Shoulder strap 1 sett
●
User's guide 1 set
●
□

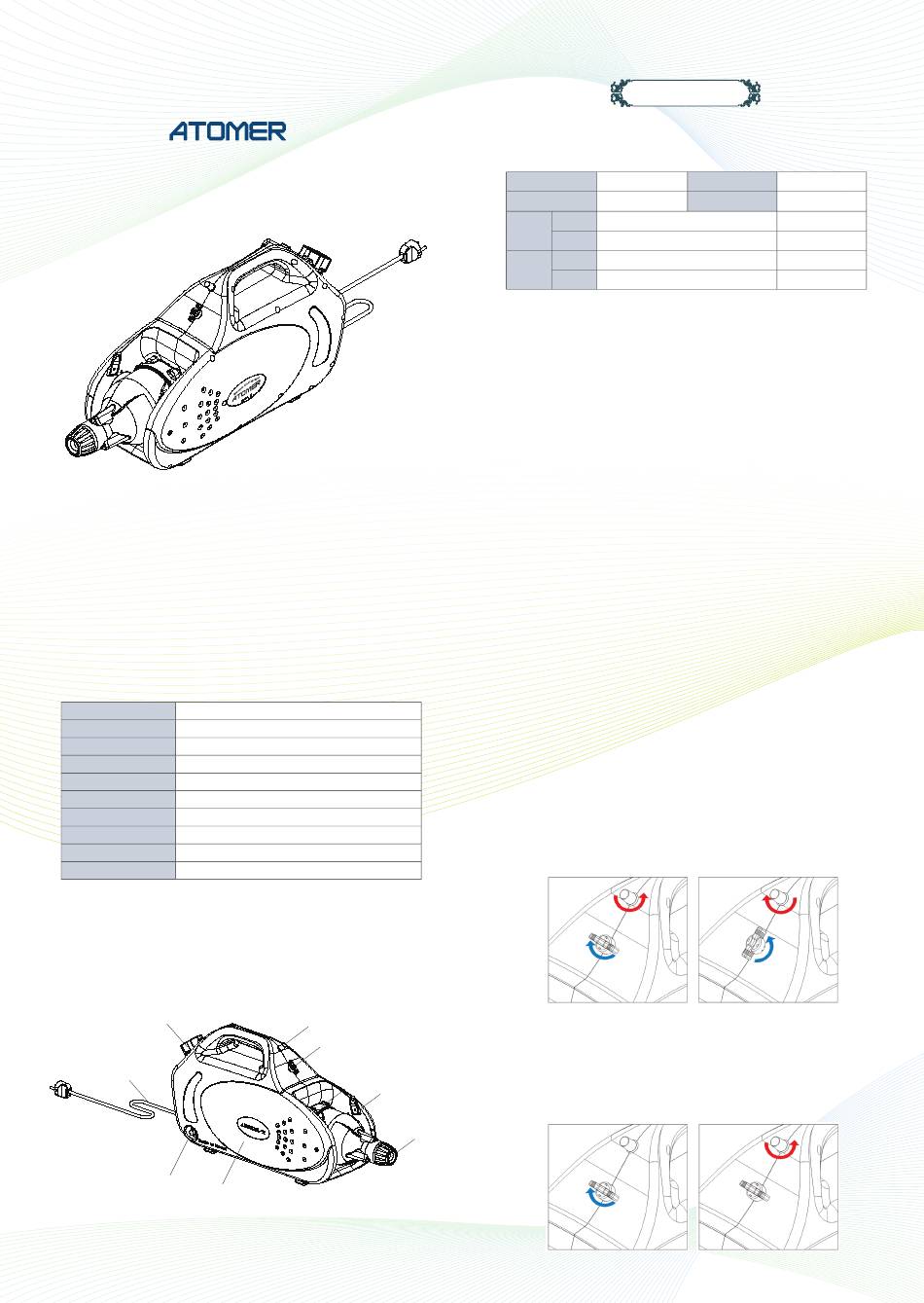

Configuration
⑥
⑦
⑧
①
① Main body ② Injection nozzle
④ Solution control valve ⑤ Motor housing
⑦ Wire ⑧ Fuse
II
ATOMER II (RA04HS)
220V-60Hz
1.4kW
4 Liters
1.2L/min
3~11m
20~50㎛
4.6㎏
6 meters
③
④
⑤
⑨
②
③ Air control switch
⑥ Tank cap
⑨ Shoulder strap ring
Warranty
Thank you for buying this product. This product has passed strict quality
control and strict inspection.
Product name
Model name
Name
Buyer
Add.
Name
Dealer
Add.
1. If you have failure of the product within 12 months of purchase date, it will
be repaired by warranty standards. Please contact your nearest dealer or
the customer center of the company.
2. Repair after warranty period
① Failure due to user's carelessness
② Failure due to natural disasters
③ After the warranty period
④ When there is no warranty
⑤ If the product is modified arbitrarily
3. The parts are available for 3 years after the product is discontinued.
4. Warranty period is one year from the day of purchase.
□
How to use
Operation
●
1. After pouring an appropriate amount of water or solution into the tank, lock
the cap of the tank completely.
2. Turn the air control switch (ⓐ) counter-clockwise, then ensure that the
solution control valve (ⓑ) is completely locked by turning clockwise before
connecting the power line.
3. Make the spray nozzle facing the working direction, and turn the air control
switch (ⓒ) clockwise to adjust the speed of air.
4. After confirming the speed of air ejected from the injection nozzle does not
affect the surroundings, adjust the amount of water or solution by opening
the solution control valve (ⓓ).
ⓐ
ⓑ
Stop operation
●
1. First, make sure to completely close the solution control valve (ⓔ) so that
water or solution is not injected.
2. Turn the air control switch (ⓕ) counter-clockwise and stop the motor.
3. Remove the power cord.
4. Empty the solution tank and clean it.
5. Then spray clean water to the hose and nozzle for washing.
ⓔ
Purchase date
Mfg. No.
Phone
Phone
ⓒ
ⓓ
ⓕ
