- Page 1 User Manual 3.6 V Li-ion Pivot Handle Screwdriver FPHS 3.6Va ORIGINAL INSTRUCTIONS...
-
Page 3: Package Contents/Device Parts

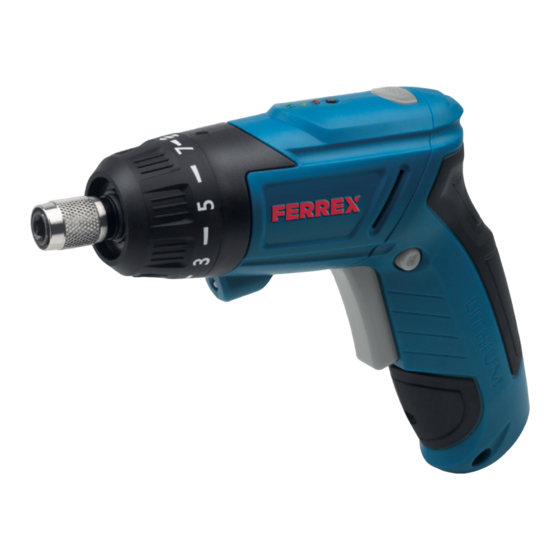

Package contents/device parts LED charging level display Button for LED charging status Handle swivel lock Switch for left/right rotation and trigger lock On/ Off switch Charging socket LED working light Tool holder ¼“ = 6.35 mm Tool holder sleeve Torque scale 10a Torque pre-selection with marking Battery charger Charging connector... -
Page 4: Table Of Contents
Table of contents Table of contents Package contents/device parts General information Reading and storing the user manual Explanation of symbols Safety Explanation of notes Proper use Residual risks General power tool safety warnings Special safety instructions for screwdrivers Safety instructions for chargers Further safety instructions Before use Checking the product and scope of delivery... - Page 5 Table of contents Switching on and off Left/right rotation, trigger lock Setting the torque Operating information Maintenance, cleaning and storage Maintenance Cleaning Storage Faults and troubleshooting Technical data Noise/vibration information Disposal Disposing of used tools Batteries and rechargeable batteries Disposing of packaging Service information CE declaration of conformity...
-
Page 6: General Information
General information General information Reading and storing the user manual This user manual accompanies this 3.6 V Li-Ion screwdriver (referred to below only as the “screwdriver”). It contains important information about start-up and handling. Before using the screwdriver, read the user manual care- fully. - Page 7 General information Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all applicable Community regulations for the European Economic Area. This symbol identifies devices that are operat- ed with direct current. This symbol identifies double insulated elec- tric devices.
-
Page 8: Safety
Safety Safety Explanation of notes The following symbols and signal words are used in this user manual. This signal symbol/word designates a hazard with mod- erate degree of risk which may lead to death or severe injury if not avoided. CAUTION! This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate... - Page 9 Safety The screwdriver has not been designed for commercial use, use in the trades or for industrial applications; it is only designed for private use in hobby and DIY pro- jects. The screwdriver may only be used in line with its intended purpose.
- Page 10 Safety Any other applications are expressly prohibited and are deemed improper use. • Using the screwdriver for other than the intended purposes; • Failure to observe the safety instructions and warnings as well as the assembly, operating, maintenance and cleaning instructions contained in this user manual;...
-
Page 11: Residual Risks
Safety • Operation or maintenance of the screwdriver by persons not familiar with how to handle the screw- driver and/or who are not aware of the related risks. Residual risks Despite proper use, inconspicuous residual risks can- not be completely ruled out. The following risks may arise due to the nature of the screwdriver: •... - Page 12 Safety Save all warnings and instructions for future refer- ence. The term ““power tool”” in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool. Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Page 13 Safety b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet con- ditions.
- Page 14 Safety Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medi- cation. A moment of inattention while operating power tools may result in serious personal injury.
- Page 15 Safety Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 16 Safety c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjust- ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate...
- Page 17 Safety h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe han- dling and control of the tool in unexpected situa- tions. Battery tool use and care a) Recharge only with the charger specified by the manufacturer.
- Page 18 Safety e) Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature.
-
Page 19: Special Safety Instructions For Screwdrivers
Safety Special safety instructions for screw- drivers a) Hold the device by the insulated handle surfac- es when performing work where there is a risk of the screw coming into contact with hidden power lines. If the screw comes into contact with a voltage-carrying line, metallic parts of the device could be energised as a result and inflict an elec- tric shock. - Page 20 Safety a) Before using the charger, read through all instruc- tions and all precautionary measures for the charger and rechargeable battery. You can find notes in these instructions and on the device itself amongst others. b) Check the charger regularly for damages, par- ticularly the connector cable and housing.
- Page 21 Safety Safety g) Only use the charger for private use in connection with a normal household socket. Never attempt to connect the charger with a mains socket with a different voltage rating. h) Always make sure there is adequate ventilation when recharging the rechargeable battery.
- Page 22 Safety m) Only use the charger to charge the rechargeable battery. The charger must not be used as a power supply for the power tool. n) Do not place any objects on the charger and do not cover it as this may cause it to overheat. Do not place the charger near a heat source.
-
Page 23: Further Safety Instructions
Safety Further safety instructions NOTICE! Risk of damage! Improper handling of the screwdriver or rechargeable battery may result in damage to the screwdriver. − Never place the screwdriver or the accesso- ries on or near hot surfaces (e.g. radiators). − Never expose the rechargeable battery to mechanical shocks. -
Page 24: Before Use
Before use Before use Checking the product and scope of deliv- ery before use 1. Remove the pivot handle screwdriver and accessories from the packaging. 2. Check that the delivery is complete (see chapter „Scope of delivery/parts designation“). 3. Check for any damage to the pivot handle screwdriv- er and accessories. -
Page 25: Displaying The Charging Level
Before use • During the charging process, the red LED on the charging level display (1) lights up. When the battery is fully charged, all 3 LEDs light up. • The battery is overload protected. The charging process stops when the rechargeable battery is fully charged. Over loading of the rechargeable battery is not possible. -
Page 26: Use As A Pivot Handle Screwdriver/ Angled Or Straight
Before use • Red/Yellow/Green: Battery is fully charged NOTICE! A precise indication is only possible when the battery charger is not connected. Use as a pivot handle screwdriver/ angled or straight The pivot handle screwdriver has a handle that can be pivoted. -
Page 27: Fitting Screwdriver Bits
Fitting screwdriver bits Warning! Set the changeover switch (4) to its center position whenever you carry out any work (for exam- ple changing the bit, maintenance, etc.) on the cord- less screwdriver. • Push the tool holder sleeve forward and hold it (9). •... -
Page 28: Left/Right Rotation, Trigger Lock
The pivot handle screwdriver is fitted with an LED working light (7). This lights up when the On/ Off switch is pressed. Left/right rotation, trigger lock The direction of rotation of the pivot handle screwdriver can be set using the switch for left/right rotation (4). -
Page 29: Operating Information
If the setting is correct, the friction clutch is triggered when the screw head is flush with the workpiece. The ideal torque can be best determined using a piece of excess material. • Match the desired torque (1 – 7) on the setting scale (10) of the machine housing with the setting mark (10a). -
Page 30: Maintenance, Cleaning And Storage
Maintenance, cleaning and storage When using wood screws that do not have a continuous thread, you will need to pre-drill approximately half the length of the screw. Maintenance, cleaning and storage Maintenance The pivot handle screwdriver is maintenance-free, with the exception of regular cleaning. Cleaning CAUTION! NEVER submerge the pivot handle screwdriver in water. -
Page 31: Storage
Faults and troubleshooting NOTICE! Do not open the pivot handle screwdriver. The pivot handle screwdriver does not contain parts of any use to the user. Storage Clean the pivot handle screwdriver before storing. When not in use, store the pivot handle screwdriver in a safe, cool, dry and well ventilated place that is out of the reach of children. -
Page 32: Technical Data
Arrange for repairs to the pivot handle screwdriver or charger to be carried out by an authorised specialist workshop only. Technical data Pivot handle screwdriver Article number: 704196 Model: FPHS 3.6Va Model number: WU5902183/WU5902184 Battery: 3.6V Bit holder: " = 6.35mm Idle speed: max. -
Page 33: Noise/Vibration Information
Noise/vibration information Noise/vibration information Health hazard! Working without ear protection and suitable protective clothing poses a health hazard. − Wear ear protection and suitable protective clothing when working with the device. The specified total vibration value and noise emission values have been measured according to a standard- ised test method (DIN EN 62841-2-2) and can be used to compare power tools with one another. - Page 34 Noise/vibration information Noise emissions Sound pressure level L : 60.96 dB(A) Uncertainty K: 3 dB Sound power level L 71.96 dB(A) Uncertainty K: 3 dB Attention! During actual use, the vibration and noise emission val- ues may differ from the levels specified, depending on how the power tool is used (in particular on the type of workpiece being processed).
- Page 35 Noise/vibration information tion between noise emissions and existing background noise, it is not possible to reliably deduct whether addi- tional precautionary measures are required or not. Factors that could affect the respective immission level present at the workplace involve the specification of the work area, the surrounding area, the duration of expo- sure, other noise sources etc.
- Page 36 Noise/vibration information • Use of the correct accessories which are in good con- dition; • Firm grip of the screwdriver by the user; • Proper use of the screwdriver as described in this user manual. Improper use of the screwdriver can cause vibration- related ailments.
-
Page 37: Disposal
Disposal − Plan your work steps so as not to use strongly vibrat- ing devices/tools over several consecutive days. Disposal Disposing of used tools This symbol indicates that this product may not be disposed of in the household waste in accordance with the Waste Electrical and Electronic Equipment Directive (WEEE 2012/19/ EU) and national laws. -
Page 38: Batteries And Rechargeable Batteries
Service information Batteries and rechargeable batteries Batteries and rechargeable batteries must not be disposed of in the household waste! As a consumer, you are legally obliged to return all batteries and rechargeable batteries whether they contain hazardous materials*) or not, to a collection point in your community/town/store so that they can be disposed of in an environmentally friendly way. - Page 39 Service information • FERREX® equipment is subject to strict quality con- trols. However, should a functional fault occur, send the pivot handle screwdriver to the manufacturer as detailed in the chapter „Checking the pivot han- dle screwdriver and scope of delivery“. •...
- Page 40 Service information • To prevent damage being caused during transporta- tion, pack the pivot handle screwdriver securely or use the storage case. • The manufacturer guarantees that any repairs to FERREX® equipment shall be carried out in a cost- effective manner even after the warranty has expired. •...
-
Page 41: Ce Declaration Of Conformity
Conmetall Meister GmbH Oberkamper Str. 39 42349 Wuppertal · Germany EU Declaration of Conformity 3.6 V PIVOT HANDLE We declare with sole SCREWDRIVER FPHS 3.6Va responsibility, that the + CHARGER YYYD-S05B0500500Y product listed below … FERREX® WU5902183/WU5902184 · 704196 · 08/2020 2011/65/EU (RoHS) …... - Page 42 PRODUCED IN CHINA FOR: Aldi Stores Ltd., PO Box 26, Atherstone, Warwickshire CV9 2SH. Aldi Stores (Ireland) Ltd., PO Box 726, Naas, Co.
