Page 1: Nasum A5/A5 Pro

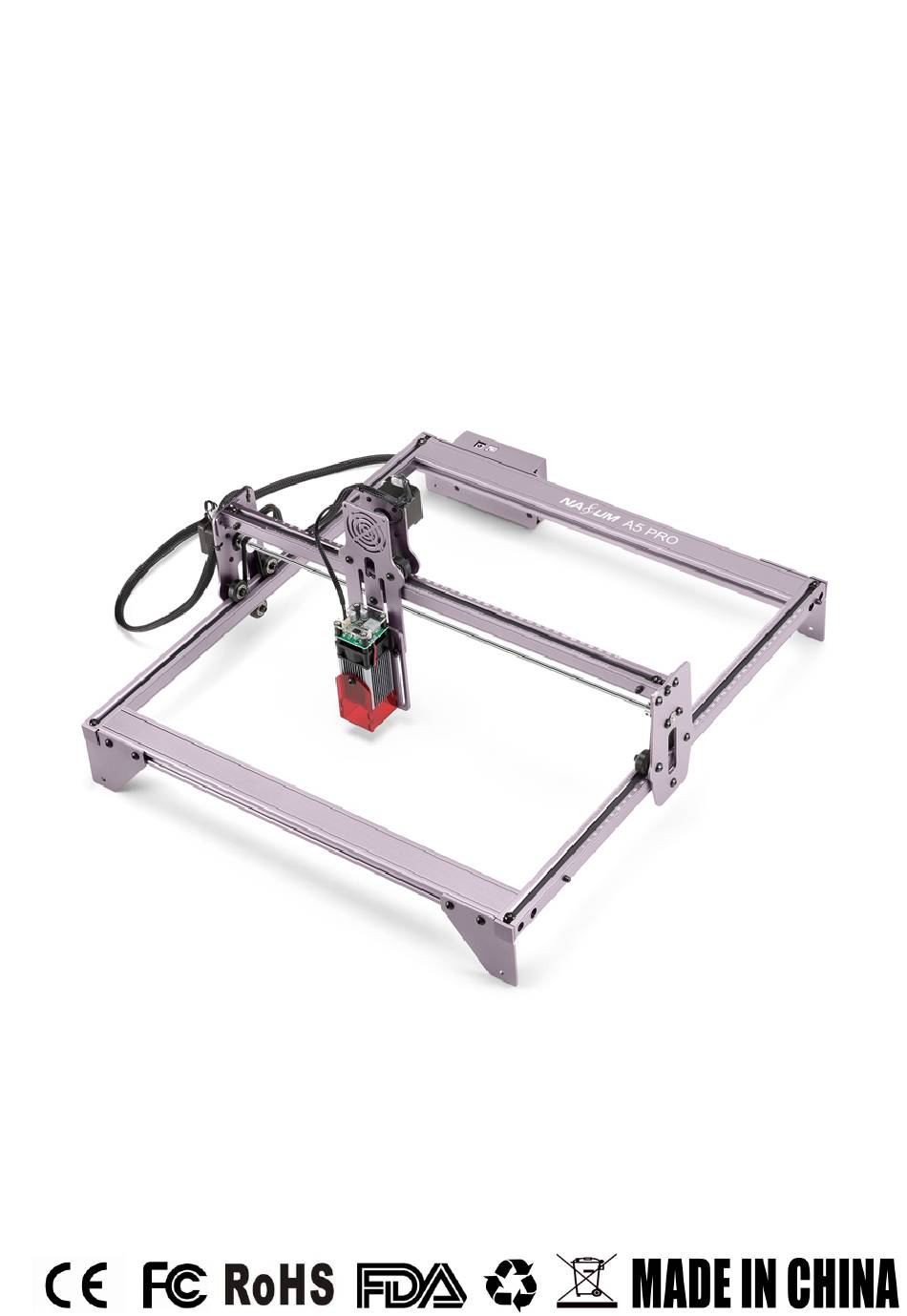

NASUM A5/A5 Pro Laser engraving machine manual （ English ）... -
Page 2: Table Of Contents
0.3 Material safety......................4 0.4 Use Safety ......................... 4 0.5 Power safety........................4 1.Disclaimer and warning.................5 2. NASUM A5/A5 PRO Engraver Introduction ..........6 3. Software installation and use ................ 7 3.1 LaserGRBL Software Installation and Use ..............7 1. Downloading software ....................7 2. -
Page 3: Security Statement
0. 1 Laser safety NASUM A5/A5 PRO uses Type 4 laser product. The lasers are very powerful that can cause eye injuries and burn the skin. We have installed a laser cover on the laser. To a large extent, the shield filters out the diffuse light from the laser spot. -
Page 4: Material Safety
0.5 Power safety To prevent accidental disasters such as fire and electric shock, the NASUM A5/A5 Pro Laser Engraver provides a power adapter with a ground wire. Plug the power plug into the power socket with a ground wire when using the Laser Engraver. -
Page 5: Disclaimer And Warning
This product is not a toy and is not suitable for people under 15 years of age. Do not allow children to touch the NASUM A5/A5 Pro laser engra ving machine. Please be careful when operating in scenes with children. -
Page 6: Nasum A5/A5 Pro Engraver Introduction
The NASUM A5/A5 PRO laser is a fixed-focus laser, it only need a fixed-focus sheet to get the best engraving focal length. -
Page 7: Software Installation And Use
$40. This software also supports Windows. The NASUM A5/A5 PRO engraver receives commands from the computer to move. The engraver needs to stay connected to the computer and cannot turn off the engraver software (LaserGRBL or LightBurn) during the engraving process . -
Page 8: Installing Laergrbl
2. installing LaerGRBL Double-click the software installation package to start the software installation, and keep clicking Next until the installation is complete. !"#$%&'( 3 .1 LaserGRBL )*+$,-&'(".)$-//-$"*. ( 3. Adding custom buttons ： The software supports users to add custom buttons, you can add custom buttons in the software according to your usage. - Page 9 select the custom button zip file downloaded before to import, keep pressing Yes (Y) until no window pops up. !"#$%&'( 3 .3 adding custom button ( !"#$%&' 3 .4 #%)$*0(1%$$*.(/*-5".4 ( The installed software is shown as the following figure. !"#$%&' 3 .5 Software button ( 4.
-
Page 10: Connect Laser Engraving Machine
B. Plug in the power supply of the engraving machine. C. Open the LaserGRBL software D. Select the correct port number and baud rate in the software - 115200, (in general, COM ports do not need to be selected manually, but if you have more than one serial device connected to the computer, it needs to do so, you can find the port of the laser engraver in the device manager of the Windows system, Or you can simply try the port... - Page 11 !"#$%&' 3 .7 Connecting laser engraver ( 5. Setting Engraving Parameters A. Select the engraving file. Open LaserGRBL software, click "File"> "Open File", then select the graphics you want to engrave, LaserGRBL supports NC, BMP, JPG, PNG, DXF and other formats.
-
Page 12: Setting Engraving Parameters
Engraving quality essentially refers to the line width of the laser scan, this parameter mainly depends on the size of the laser spot of the engraving machine, NASUM A5/A5 PRO engraver uses rectangular spot for 0.3*0.5mm, the core energy area of the spot size is about 0.1*0.3mm,... - Page 13 Picture 3.9 6.$&*5%#$"*.(*+(7'$%2(6.$'&+-#' ( C. Engraving speed, engraving energy and engraving size Setting a. recommending the engraving speed for 1000, this is the best value for the engraving effect after repeated experiments, of course you can increase or decrease the speed according to your preference, faster speed will save the engraving time, but it may reduce the engraving effect, slower speed is the opposite.
-
Page 14: Laser Focus Adjustment
To solve this problem, we have abandoned the traditional zoom laser and installed a fixed-focus laser on the NASUM A5/A5 PRO engraver, with the specific focus point located 2mm from the bottom of the acrylic... - Page 15 simply adjust the height of the laser (one fixed focus piece away from the top surface of the object being engraved or cut）. The following is the specific operations: A. Moving the laser head over the object to be engraved or cut. B.
- Page 16 B. Picture 3.12 Adjusting the laser distance C. Tighten the fixing screws of the slides on both sides of the laser. !"#$%&'( Picture 3.13 fixing screws D. Take out the fixed focus piece and finish focusing.
-
Page 17: Positioning
Picture 3.14 Take out the fixed focus piece 7. Positioning A. The engraver does not know what position to carve, so there is one important task before you start carving, that is positioning. We will complete the positioning operation in three steps. B. - Page 18 emits irradiation point is the center of the engraving pattern, based on this, adjust the position of the engraved object! Picture 39:<(light laser( D. Click "Profile Scan" button, the laser will start to scan the outer contour of the pattern on the computer, you can change the position of the engraved object again according to the scanned outer contour position.
- Page 19 Picture 39:=((Profile Scan(...
-
Page 20: Start, Termination Carving Or Cutting
8. Start, Termination carving or cutting Start After finishing all the above operations, click the green button as shown in the figure to start engraving. There is a number that can be edited next to the start button. It is the number of times of engraving or cutting, LaserGRBL allows multiple consecutive engraving or cutting of uniform shapes, this function is especially useful for cutting. - Page 21 !"#$%&' 3 .20 LightBurn Software package ( Double-click on the installation package to install and click "Next" in the pop-up window. (note: LightBurn is a paid software, for better experience we recommend you to buy the original one, here we will demonstrate the installation of the trial version) !"#$%&' 3 .21 7'/'#$($>'(".)$-//-$"*.(2-$>...
- Page 22 !"#$%&'( 3 .22 ?>**)'(-(+&''($&"-/ ( Click Find My Laser !"#$%&'( 3 .23 ?/"#3@A".5(0B(/-)'&@ (...
- Page 23 Click Add Device !"#$%&'( 3 .24 Click GRBLC410*400mm)D?/"#3(-55(E'8"#' ( To set the origin, we usually set the origin in the front left. !"#$%&'( 3 .25 set the origin in the Front left.
- Page 24 If the software is not connected to the machine, we can select the port of the laser engraver like the following picture. !"#$%&' 3 .26 7'/'#$(2*&$(.%01'& (...
-
