- Page 1 12V 24V 220V FUEL DISPENSER OWNER’S MANUAL WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-
Page 2: First Aid Rules

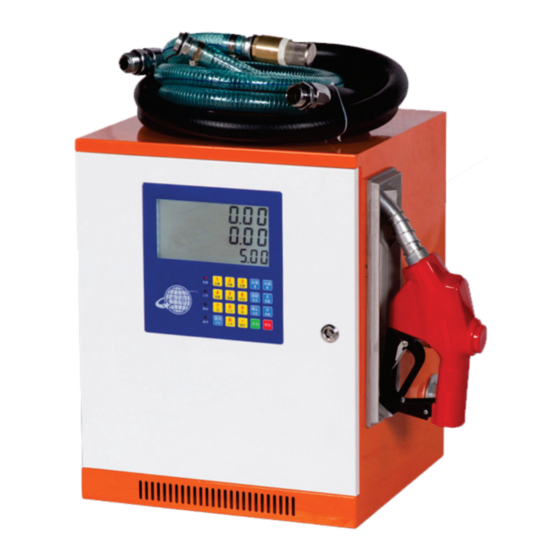

IN ALL CASES, SEEK MEDICAL ATTENTION IMMllDIATELY GENERAL INFORMATION 12V, 24V 220V Mobile Fuel Dispenser adopts advanced computer technology, security and dedicated control processor, with high accuracy flow meter. It has advantages of high accuracy, abundant function, high reliability, easily to operate and maintenance. -
Page 3: Technical Specification
TECHNICAL SPECIFICATION Flow Range: 20-80L/min Min Tested Flow Rate: 5L Accuracy: The max error of dispenser volume is less than ±0.30%, its repeatability error is less than 0.15%. Noise Standard: <80dB(A Class) Unit Price Range: 0.01-999.99 Volume Range: 0.01-999999.99 Amount Range: 0.01-9999999999.99 Environment condition: 1) Humidity:-30°C~+45°C 2) Relative humidity:<95% The max work ing pressure: <0.3MPa... -
Page 4: Installation
Take up the automatic nozzle, the signal will be transmitted to the main board. The main board will transmit the operation signal to driver board, then open the solenoid valve (optional). The pump sucks the fuel via the filter, then enter into the flow meter, After the operating of the flow meter, the main board will count the liter, amount and also display the liter, unit price and amount. -
Page 5: Operation
Operation Main Technical Specification • Working Environment: 1.Adapt temperature: -2s°C~+55°C 2. Relatively wet: 30%~90% 3. Atmospheric pressure: 86~106kPa • The digital for the display Liter: 8 digitals, Amount: 8 digitals. Unit price: 5 digitals • Single range: Liter or Amount: 8 digitals (Include two decimals) •... - Page 6 Output: Solenoid valve controlling light Pulse: Sensor working indicator light DAILY MONTHLY GENERAL CLEAR SALE CANCEL TIME DETAILS SHIFT CONFIRM LITER QUERY START STOP PRICE 1.When fueling with preset, press this key to input the regular number DAILY 2.When querying model, press this key to query daily total fueling data 1.When fueling with preset, press this key to input the regular number MONTILY 2.When querying model, press this key to query monthly total fueling data...
- Page 7 1. When fueling with preset, press this key to input the regular number 2. When fueling model, press this key, if the sale reached the next tens integer, it will stop automatically. 1. When fueling with preset, press this key to input the regular number. 2.
- Page 8 The operation method When the dispenser powers on, the whole screen of display board are checking the field, display y.1ill show "9" "6" ''7" "1" and then will show the current date and time. It is in the fueling mode automatically after 3-4seconds. When the dispenser is standby model, the first line is the last fueling amount, the second line is the last fueling volume, the third line is current set unit price.
- Page 9 Press the " /PRICE" key for 5 seconds, input the password "123456", the first row number is current unit price, the second row displays "O", and input the new unit price. If the new unit price inputted by mistake, press "CLEAR/CANCEL" to delete the number and re-input the new price.
- Page 10 b) Press "6/TIME" key, the month and serial number of current monthly total data will be displayed. Press it again, the first fueling date, time and total fueling times of current monthly total data will be displayed. c) Press key to query the previous data and the next record. "SET/ "...
- Page 11 When in the fueling, press "O" button, if the volume reached the next tens integer, it will stop automatically. Fueling with preset (SALE) 1. Press "SALE" key, then input the preset amount by press number keys of 0-9, (if input the wrong number, press the "CLEAR/CANCEL"...
-
Page 12: Usage Maintenance
save the new password. 2. Advanced password setting a) When standby, press "SET/ ". input 9,9, the screen will display 9-9. b) Input password 666666 c) The first row is current password, input the new password, and press "CONFIRM” to save the new password. - Page 13 The number for screw must be complete , so that it can ensure the Ex-proof capability for the Electric part. amspa engineering pvt. ltd. Row House No. 3, Building No. 1/2,Shri Vihar, Nigdi, Pune - 411044, Maharashtra, India Contact : +91-9833932265 Email id : anjaintewari@amspa.org...
