WIPS TWP-1000 Quick Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Installation Guide
(Model Name: TWP-1000)
Version: 1.0
Date: Feb 3, 2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWP-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for WIPS TWP-1000

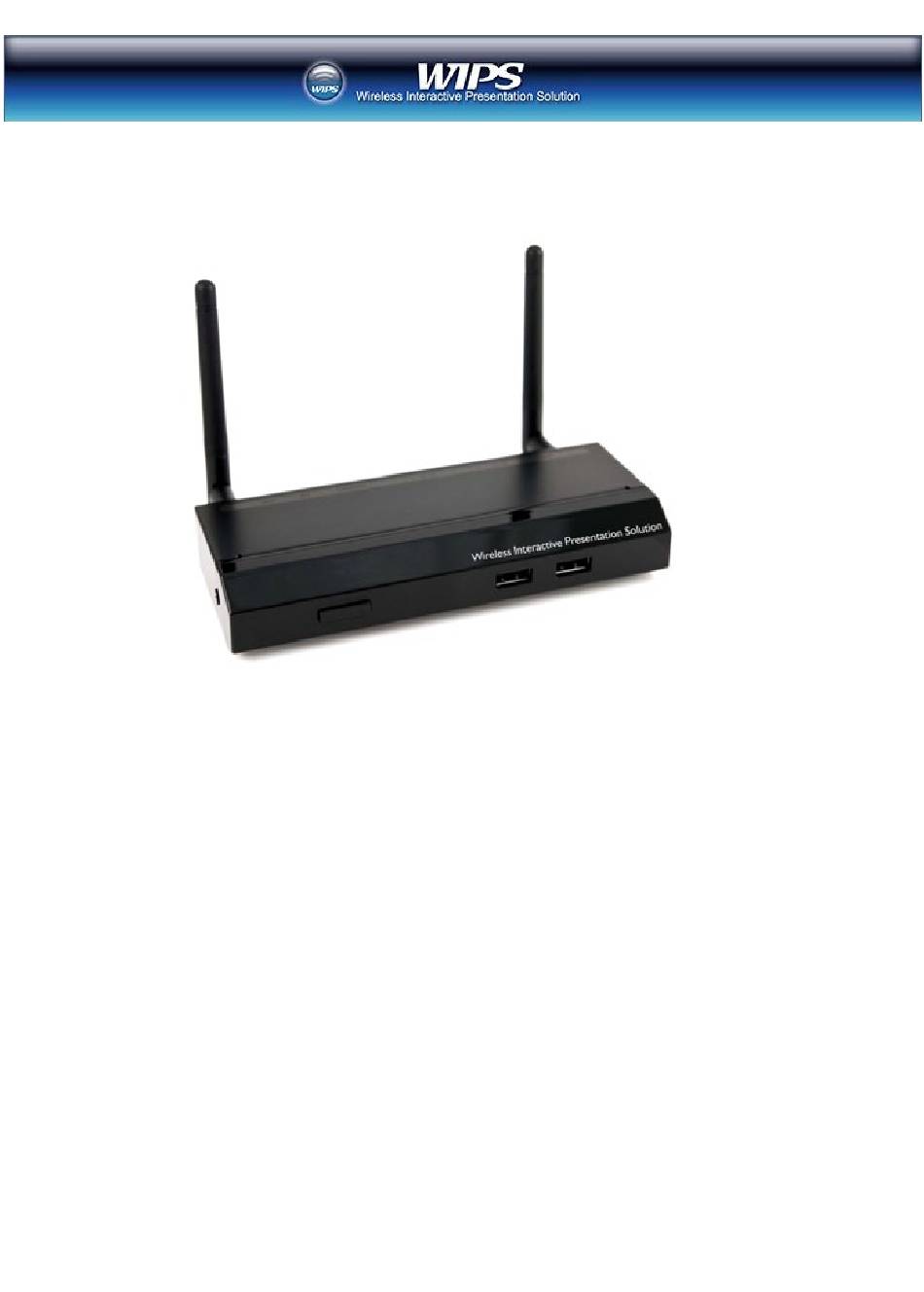

  • Page 1 Quick Installation Guide (Model Name: TWP-1000) Version: 1.0 Date: Feb 3, 2012...

  • Page 2: Package Contents

    TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide 1. Package Contents WIPS TWP-1000 Box  WIPS TWP-1000 USB Token  Power Adapter (DC +5V, 2.5A)  2 WiFi Antenna  2. USB Token Contents Windows Installer (TWP-1000 Windows Installer) ...
  • Page 3 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide Rear Panel  VGA Connector Audio Jack HDMI RJ-45 Antenna USB Port Power Jack Antenna Bottom Side  Screw hole Reset Button (Optional kit for Wall Mount)

  • Page 4: What You Might Need

    USB HID IWB Device (Optional, for IWB over IP feature)  5. TWP-1000 Quick Installation 1) Connect WIPS TWP-1000 device to Projector through VGA port and turn on projector power. 2) Connect the power adaptor to TWP-1000 device and press the power button to turn on TWP-1000 device.
  • Page 5 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide TWP-1000 Features Highlight: Icon Feature Description DoWiFi No more wires … Display-over-WiFi for Windows & Mac MobiShow Interactive PPT presentation via iPhone/iPad or Android devices WiFi-Doc High quality presentation via iPhone/iPad or...
  • Page 6 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide 6. WIPS for Windows 1) Make sure your PC WiFi is enabled already, and connect your PC to WIPS TWP-1000 box through WiFi. 2) Open your browser and enter the IP address shown on the left corner of projector screen to access the WIPS WP-1000 web home page.
  • Page 7 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide 4) Enter the CODE and You can see the Code on the projector standby screen ♦ 5) Click the button to start full screen projection, or choose one of the numbers (1 to 4) to project to the split screen.
  • Page 8 1) Enable your WiFi and connect to WP-1000 WiFi network. 2) Open your browser and enter the IP address shown on the left corner of projector screen to access the WIPS TWP-1000 web home page. (Default IP: 192.168.168.100) 3) Download the client software and execute the installation application.
  • Page 9 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide 4) Launch WIPS software, connect the TWP-1000 device and enter the Code. 5) Click the button to start projection. 6) Use the mouse/keyboard connects to the Box to select a PC and control the...
  • Page 10 Enable the WiFi and connect to the Access Point where the TWP-1000 device connected. Select “MobiShow” icon and launch the client software. Connect to TWP-1000 device, it will popup the login page. Enter the code and press login. Project Photo...
  • Page 11 Enable the WiFi and connect to the Access Point where the TWP-1000 device connected. Select “MobiShow” icon and launch the client software. Connect to TWP-1000 device, it will popup the login page. Enter the code and press login. Project Photo...
  • Page 12 Enable the WiFi and connect to the Access Point where the TWP-1000 device connected. Select “WiFi-Doc” icon and launch the client software. Connect to TWP-1000 device, it will popup the login page. Enter the code and press login. Project Documents to projector ...
  • Page 13 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide WiFi-Doc for Android Device WiFi-Doc for Android Device Download “WiFi-Doc” from Google Play  Download “WiFi-Doc” from Google Play  Connect to TWP-1000 device ...
  • Page 14  Download “‘MirrorOp Receiver” from App Store  Download “‘MirrorOp Receiver” from App Store  Connect to TWP-1000 device through WiFi and Launch “‘MirrorOp  Connect to TWP-1000 device through WiFi and Launch “‘MirrorOp  Receiver” Connect to TWP-1000 device through WiFi and Launch “‘MirrorOp ...
  • Page 15 TWP-1000 Wireless Interactive Presentation Solution Quick Installation Guide SidePad Control from Android Device. Download “‘MirrorOp Receiver” from Android Market  Connect to TWP-1000 device through WiFi and Launch “‘MirrorOp  Receiver” Open the main menu of the TWP-1000 application(Win/Mac), and ...
  • Page 16 Start to receive the speaker’s slides (Auto refresh every 30 sec)  Speaker: Open the main menu of the TWP-1000 PC application (Win/Mac), and choose the item, “Enable BrowserSlides”, then it will start to broadcast your slides to mobile device.
