Read and Save These Instructions






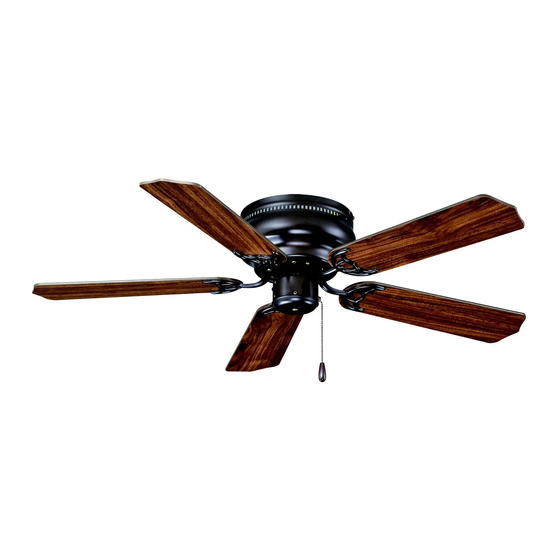

Ceiling Fan Owner's Manual
Model: 1062-1
1062
1063-1
1064-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1062-1 and is the answer not in the manual?

Questions and answers

Related Manuals for RP 1062-1

Summary of Contents for RP 1062-1

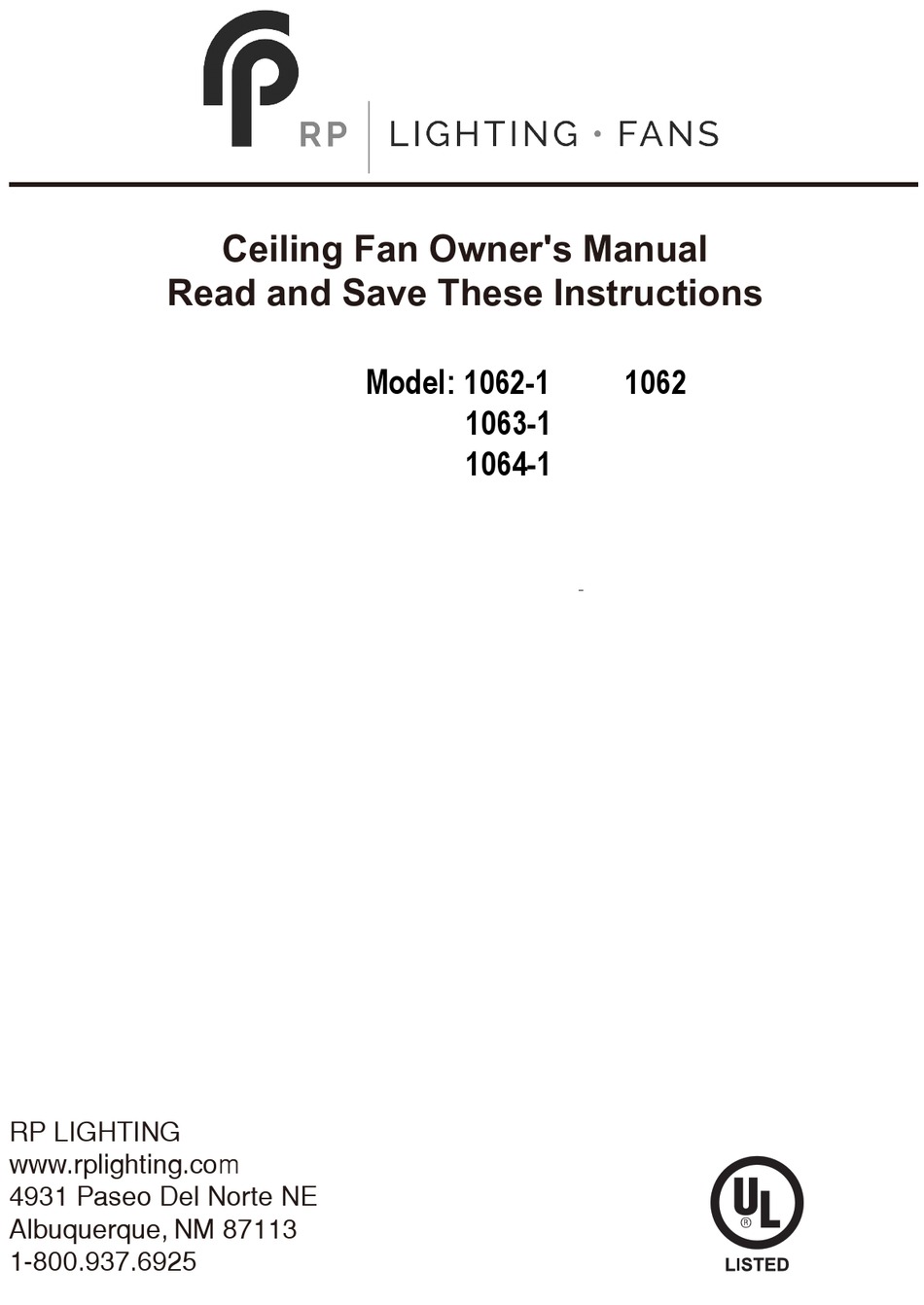

  • Page 1 Ceiling Fan Owner's Manual Read and Save These Instructions Model: 1062-1 1062 1063-1 1064-1     ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Tools and Materials Required..................Package Contents ......................Safety Rules........................Mounting Options......................Hanging the Fan ......................Making Electrical Connections..................Attaching the Fan Blades....................Operating Your Fan ...................... Care of Your Fan......................Troubleshooting......................

  • Page 3: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set Mounting bracket Fan motor assembly Motor housing Blade bracket set Screw package...

  • Page 4: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure 7. Do not operate reversing switch while fan electricity has been turned off at the circuit blades are in motion. Fan must be turned off breaker or fuse box before beginning. and blades stopped before reversing blade direction.

  • Page 5: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.

  • Page 6: Hanging The Fan

    5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps Rubber below to hang your fan properly. gasket Mounting bracket 1. ATTACH THE MOUNTING BRACKET to the outlet box with two screws and washers provided, making sure the bracket is tight and Washers secure.

  • Page 7: Making Electrical Connections

    6. MAKE ELECTRICAL POWER LINES 120V CONNECTIONS GREEN GROUND Remember to disconnect the power. Follow the steps below to connect the fan to your WIRING household wiring. Use the wire connecting nuts supplied with your fan. Secure the connectors with electrical tape.

  • Page 8: Attaching The Fan Blades

    7. ATTACHING THE FAN BLADES Step 1 Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 11. Start screw into bracket. Repeat for the two remaining screws. Step 2 Tighten each screw. Make sure the blade is straight.

  • Page 9: Operating Your Fan

    8. OPERATING YOUR Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off.

  • Page 10: Care Of Your Fan

    9. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.
