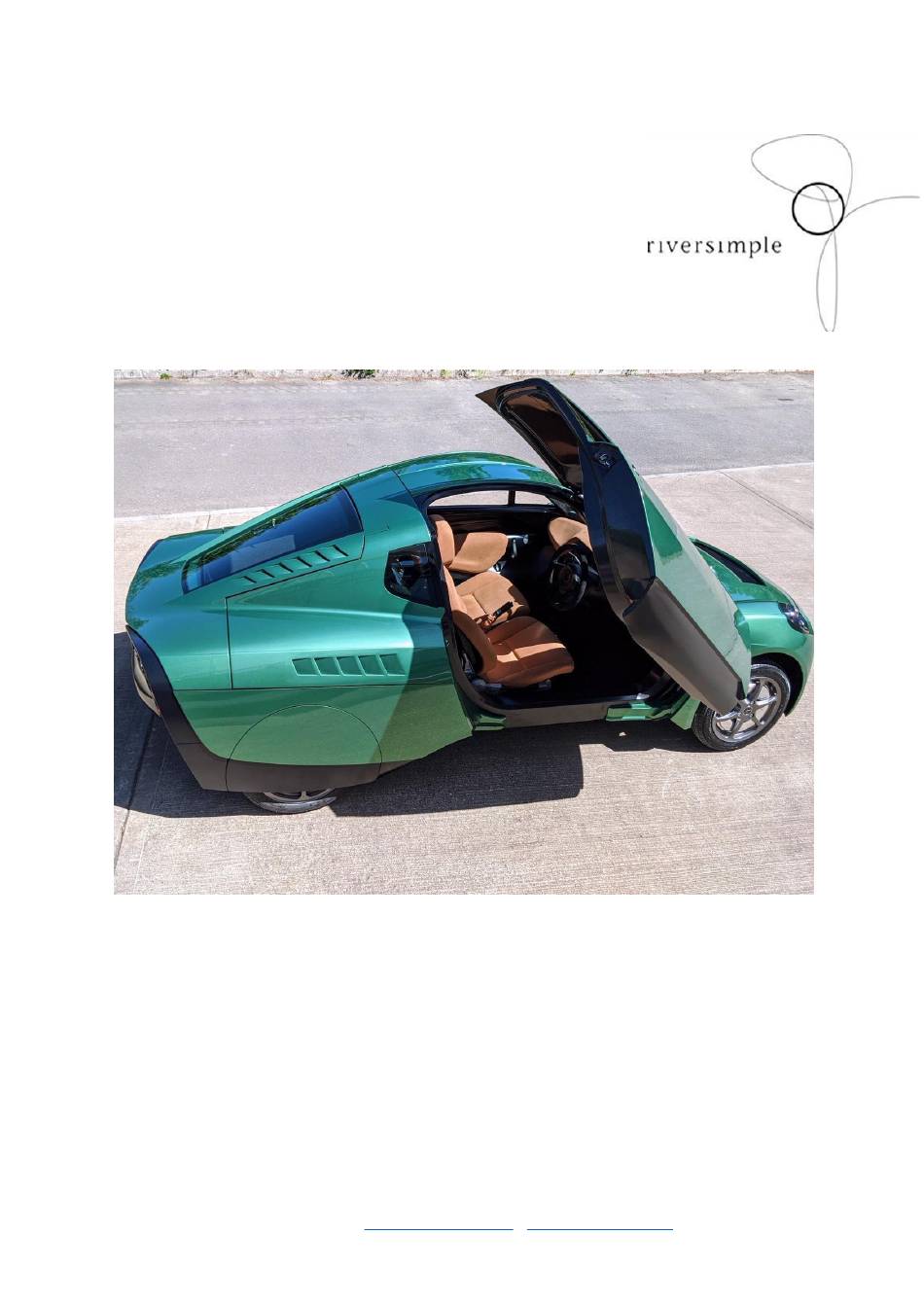

- Page 1 Rasa Beta Operating Manual Issue D February 2021 Riversimple Movement Limited, Unit 32 Ddole Enterprise Park, Llandrindod Wells, Powys, LD1 6DF 01597 821060 info@riversimple.com www.riversimple.com Company registration number: 09700923...
- Page 2 Operating Manual – Riversimple Rasa Beta ● Amendment record Issue Date Change Author November 2018 Initial issue N. O’Doherty February 2020 Update for 12kW FC N. O’Doherty August 2020 Update for Beta 2 onwards N. O’Doherty February 2021 Tyre Pressures and N.
-
Page 3: Table Of Contents
Riversimple Operating Manual Contents Amendment record Introduction and scope General safety precautions Operating the vehicle Refuelling procedure General description of the vehicle General arrangement Maintaining the Rasa Safety systems overview Crash detection Hydrogen leak detection Powertrain isolation Appendix: Hydrogen safety data sheet... -
Page 4: Introduction And Scope
000001 up to 000017. Users should be aware that these vehicles are of a trial nature and should be treated accordingly. This manual should be read by anyone intending to use or operate Rasa Beta trial vehicles produced by Riversimple. - Page 5 ● Hydrogen gas is extremely flammable and burns with an invisible flame. Keep any potential ignitions sources well away from the vehicle; ● The hydrogen system working pressure on Riversimple vehicles is 35 MPa (5075 psi). Do not attempt to refuel or connect the vehicle hydrogen storage and delivery system to sources of compressed hydrogen higher than the system working pressure;...
-
Page 6: Operating The Vehicle
The VDU will also display a yellow (Figure 7) or red (Figure 3) warning triangle in the event of a hydrogen system fault. In the event of a yellow warning please contact Riversimple so the fault can be investigated. In the... - Page 7 Riversimple Operating Manual case of a red warning triangle the vehicle must be stopped and switched off immediately. Please contact Riversimple without delay. Figure 6: Visual display Unit Figure 7: Rasa Visual Display Unit with warning yellow triangular H symbol.
- Page 8 Riversimple Operating Manual 5. The 'car not ready' icon may be displayed above the fuel gauge. As soon as the car is ready to drive, this is replaced by N (for neutral). Press 'F' (forwards) or 'R' (reverse) on the centre console to start driving.
- Page 9 Riversimple Operating Manual Headlamp switch Rotate once to the right for sidelights, and twice to operate headlamps Rotating to the left operate rear fog lights Pulling the switch out in any of the above positions operates the interior light. Figure 8: Headlamp switch...
- Page 10 Riversimple Operating Manual Figure 9: Indicator/ Main Beam Stalk Wiper/ Washer Stalk Situated to the right of the steering wheel. Push up one click for intermittent/ two for slow/ three for fast. Push down for a single wipe. Rotate thumbwheel to vary intermittent speed.
- Page 11 Riversimple Operating Manual Figure 10: Wiper/ Washer Stalk Heating and Ventilation Controls Figure 11: Heating and Ventilation Controls...
-
Page 12: Refuelling Procedure
Riversimple Operating Manual 4. Refuelling procedure Customers/ users are only permitted to undertake refuelling at the Riversimple authorised Hydrogen Refuelling Station located at the Abergavenny bus station (Figure 12). The refuelling receptacle is mounted on the rear left side of the vehicle, as indicated in Figure 12. -
Page 13: General Description Of The Vehicle
9. Do not begin refuelling if you if you see the light on the HRS start to flash red. Press the emergency stop button and call Riversimple. If the light starts flashing at any point during the refuelling process, press the emergency stop button and call Riversimple. -
Page 14: General Arrangement
● Electronic control for implementing safety systems related to high voltage electrical isolation and hydrogen safety. 5.1 General arrangement This section describes and illustrates the general arrangement of the Riversimple vehicle. Masses and dimensions are provided in Table 1. Table 1: Vehicle dimensions and weights... -
Page 15: Maintaining The Rasa
Riversimple Operating Manual 5.2 Maintaining the Rasa The Rasa is a Riversimple asset and is not to be maintained by the user due to the hazards and specialised skills involved. The only tasks which are permitted to be performed by users are topping up the washer fluid and inflation of the tyres and even these tasks need to be performed with special care. - Page 16 Riversimple Operating Manual Figure 15: Two-stage clip (driver’s side) Figure 16: Bonnet front lugs and location holes...
- Page 17 Take care not to overfill (see Figure 17). Figure 17 Washer fluid top-up Do not attempt to top up the brake fluid (Figure 18). Contact Riversimple if this needs topping up. Figure 18: Brake Fluid Reservoirs – do not attempt to top up.
-
Page 18: Safety Systems Overview
● Powertrain isolation; 6.1 Crash detection Inertia switches are fitted on Riversimple vehicles. If the vehicle is involved in a collision the switch will cut power to the powertrain contactors and hydrogen solenoid, isolating both the high voltage electronics and hydrogen supply. The fuel cell will continue to run until residual hydrogen in the supply lines is depleted. -
Page 19: Powertrain Isolation
Riversimple Operating Manual ● The vehicle should be inspected by trained technicians before being operated or refuelled. An algorithm is also implemented within the HVC that continually monitors the hydrogen mass flow rate to the fuel cell based on tank pressure and temperature readings. Limits to flow are set, which if exceeded also lead to a hydrogen system fault notification and isolation of the tank, as described above.
