Summary of Contents for Scooter Xtras SE-HC

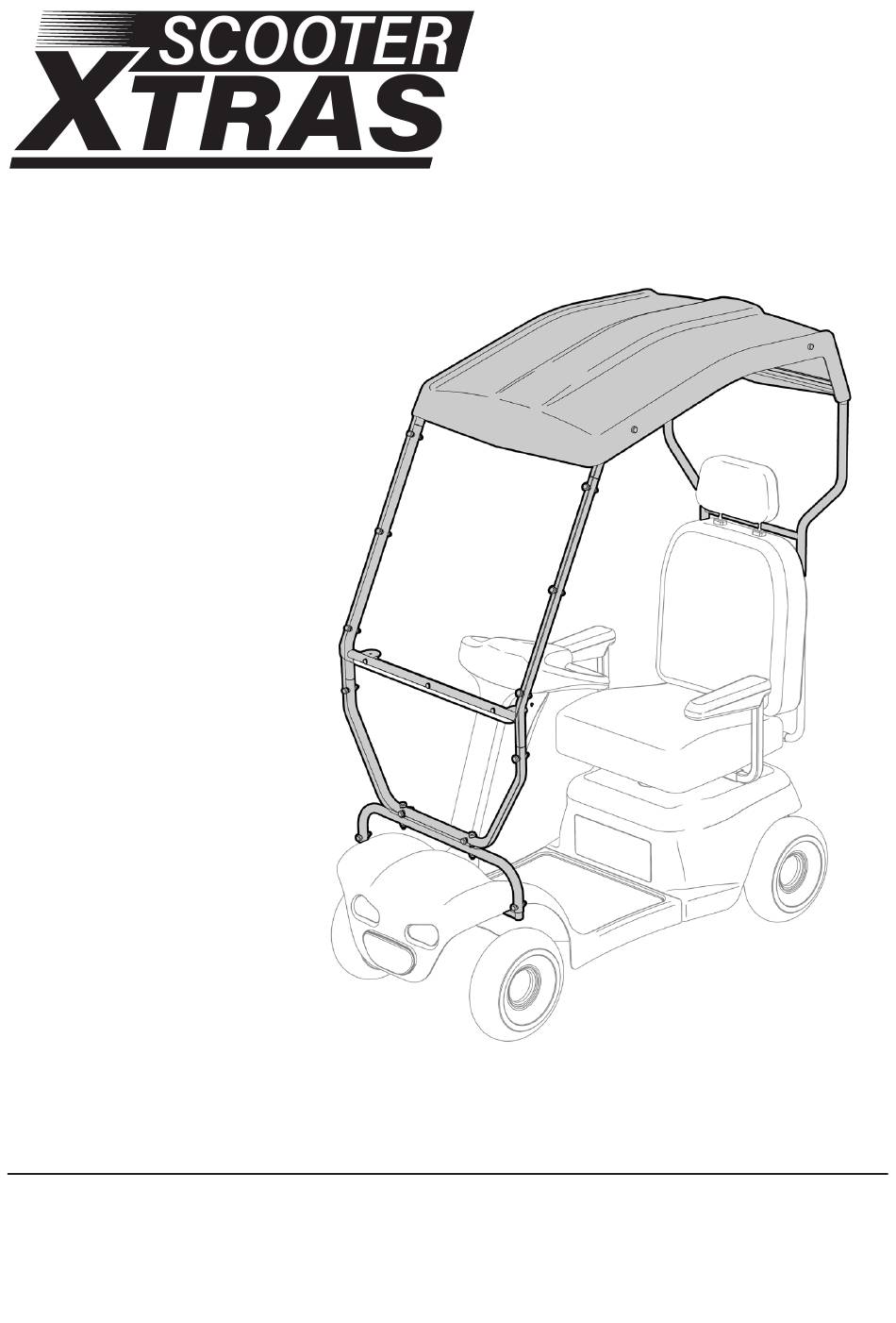

- Page 1 HARD CANOPY SE-HC AUGUST 2019 USER MANUAL Please read and keep these instructions scooterxtras.com.au...
- Page 2 SCOOTER XTRAS owns the copyright to the Hard Canopy user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of Scooter Xtras. SCOOTER XTRAS strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - LOWER WINDSCREEN LOCATION ASSEMBLY - CANOPY PRE-ASSEMBLY ASSEMBLY - CANOPY ON SCOOTER USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY SCOOTER XTRAS OPTIONAL EXTRAS SCOOTER XTRAS WEATHER CURTAINS SCOOTER XTRAS PRODUCT RANGE NOTES scooterxtras.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality SCOOTER XTRAS product. If you have any issues or questions about the Hard Canopy please contact your supplier or Scooter Xtras direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
- Page 5 SHOPRIDER 889SL (Mount Kit 2 required) SE-BC: Bag + Walking Sticker Carrier or SE-WWC: Wheelie Walker Carrier is required to fit Hard Canopy to any mobility scooter. Please contact SCOOTER XTRAS if you would like any further information on your Hard Canopy. scooterxtras.com.au...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x Upper Windscreen 1 x Canopy 1 x Lower Windscreen 1 x Rear Frame 2 x Long Bolt 2 x Short Bolt 4 x Bolt Cover 12 x Saddle Washer 4 x Nut...
-
Page 7: Assembly - Bag / Walker Carrier Location
ASSEMBLY - BAG / WALKER CARRIER LOCATION Before the Hard Canopy can be fitted to a mobility scooter... SE-BC: Bag + Walking Stick Carrier or SE-WWC: Wheelie Walker Carrier must first be fitted. Assemble the carrier as required and then fit to scooter. Ensure the carrier is fully located into the mount tube under the seat. -
Page 8: Assembly - Front Mount Kit Location
ASSEMBLY - FRONT MOUNT KIT LOCATION Before the Hard Canopy can be fitted to a mobility scooter, a front mount kit needs to be fitted. Please ensure you have been supplied with the correct mount kit for your mobility scooter model: SHOPRIDER ROCKY 4 (Mount Kit 1 required) SHOPRIDER ROCKY 6 (Mount Kit 1 required) SHOPRIDER ALLROUNDER (Mount Kit 2 required) -
Page 9: Assembly - Front Mount Kit Location (Continued)
ASSEMBLY - FRONT MOUNT KIT LOCATION (Continued) Once the outriggers have been fitted to the scooter, the front mount tube can be located: (refer to sequence stated and shown below): 1. Reposition the outriggers to line Front Mount Tube up with front mount tube. 2. - Page 10 ASSEMBLY - LOWER WINDSCREEN LOCATION The lower windscreen fastens onto the front mount tube Lower Windscreen (refer to sequence stated and shown below): 1. Feed the bolt cover and saddle washer onto the long bolt, 2. Pass the long bolt through the hole in the lower windscreen frame, 3.
-
Page 11: Assembly - Canopy Pre-Assembly
ASSEMBLY - CANOPY PRE ASSEMBLY The Canopy, Upper Windscreen and Rear frame require pre-assembly prior to fitting (refer to sequence stated and shown below): 1. Position Canopy upside down - lay in box to protect cover from scratching, 2. Locate Upper Windscreen into frame on inside of Canopy, 3. -
Page 12: Assembly - Canopy On Scooter
ASSEMBLY - CANOPY ON SCOOTER The pre-assembled canopy with upper windscreen and rear frame fitted can now be fitted onto the mobility scooter. (refer to sequence stated and shown below): IMPORTANT NOTE: 2 people are required to fit the pre-assembled canopy to the scooter. 1. -
Page 13: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Hard Canopy. Failure to follow these guidelines may result in damage to the Hard Canopy, mobility scooter and put the user at risk. Please ensure all the parts of the hard canopy have been fitted as instructed and all fasteners have been tightened sufficiently. - Page 14 PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you check your Hard Canopy visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the Hard Canopy immediately if you suspect damage or any other fault.
-
Page 15: Warranty
WARRANTY Your Scooter Xtras SE-HC: HARD CANOPY is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. - Page 16 SCOOTER XTRAS - HARD CANOPY OPTIONAL EXTRAS SCOOTER XTRAS offer various options that can be fitted to the accessory mount brackets located on the windscreen cross tube on the hard canopy: TE-MPUL: Left Rear Vision Mirror TE-MPUR: Right Rear Vision Mirror...
- Page 17 - HARD CANOPY WEATHER CURTAINS The Hard Canopy is designed to take side and rear clear plastic weather curtains. For more details please contact your supplier or SCOOTER XTRAS direct on: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
- Page 18 SE-WFC: Walking Frame Carrier SE-WSH: Walking Stick Holder TE-O: Flag Holder SCOOTER XTRAS stock a large range of Spare Parts for all SCOOTER XTRAS products. Please contact SCOOTER XTRAS for further information: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
-
Page 19: Notes
NOTES scooterxtras.com.au... - Page 20 DISTRIBUTOR: Proudly Australian Owned and Operated scooterxtras.com.au...
