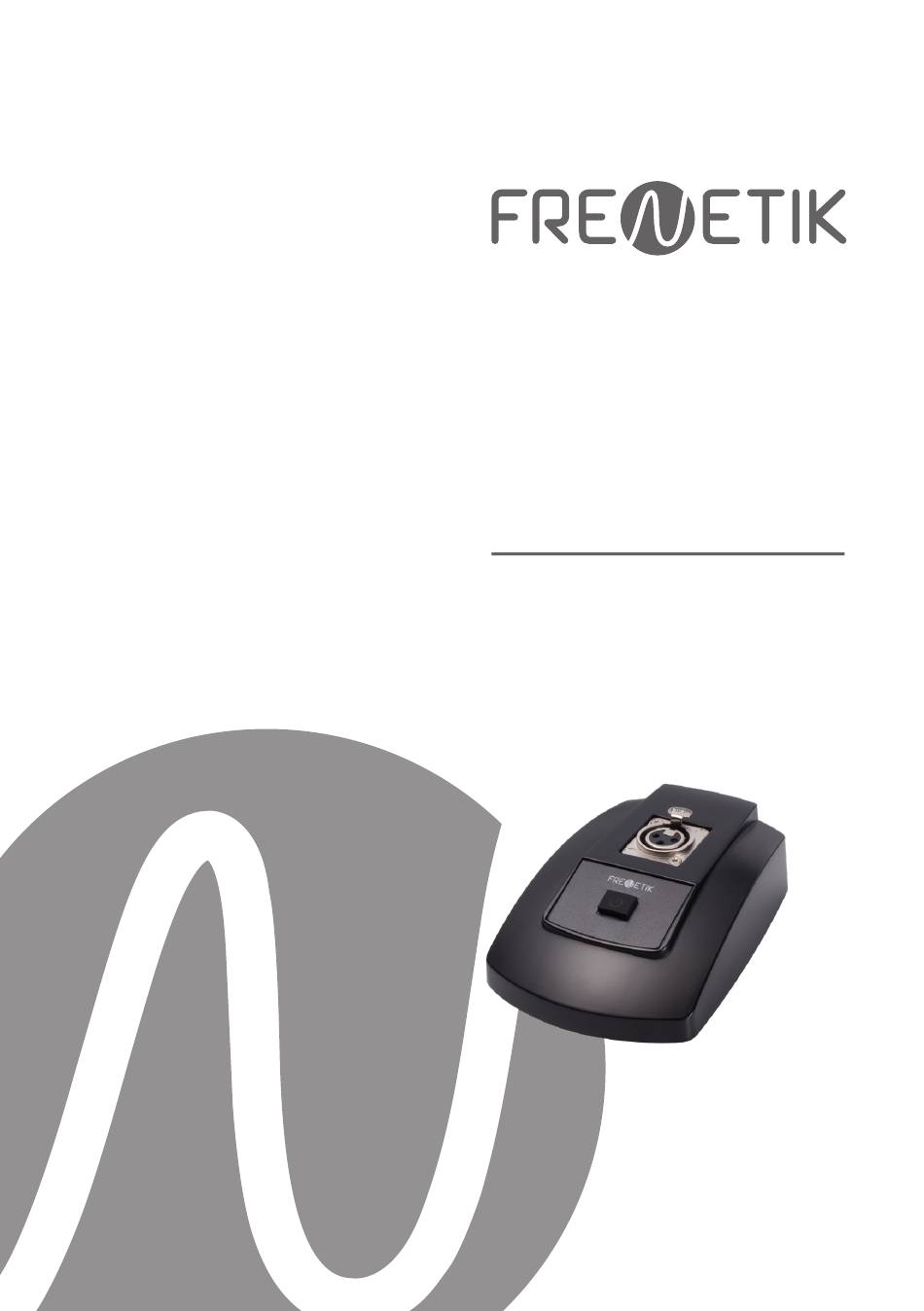

- Page 1 Shock-resistant Dante™ micro base User’s manual V1.1 - 03/2020...
- Page 2 User’s manual - Mik V1.1 03/2020...
- Page 3 MB10DP - USER MANUAL Page 1. Carton Contents 2. Connection 3. Setting up a Dante network 4. Routing with the Dante controller 5. Modes of operation 6. Technical Specifications 7. Dimensions User’s manual - Mik V1.1 03/2020...
- Page 4 1. Carton Contents - 1 Dante™ Mik microphone base - 1 user manual 2. Connections 1) Connection of the microphone. Insert the microphone’s 3-pin male XLR plug into the 3-pin female XLR socket on the microphone jack. Once the plug clicks into place, the lever on the XLR socket on the microphone jack must be pressed to remove the microphone.
- Page 5 4. Routing with the Dante™ Controller In order to configure the audio streams you need to: 1) In the main window, in the «Routing» tab, open the channels of the transmitting device on the right «Dante™ Transmitters» and the channels of the receiving device under «Dante™...
- Page 6 6. Technical Specifications MB10DP Ref. Dante™ Heavy base Type XLR3M Input connector Output connector RJ45 Phantom powering 24 V Filter Passe-haut 80 Hz, 18 dB/switchable octave Gains + 20dB / + 30 dB / + 40 dB / + 50 dB Speaking modes PTM - PTT - ON/OFF - OFF/ON Power...
- Page 7 7. Dimensions 131 mm 88 mm User’s manual - Mik V1.1 03/2020...
- Page 8 FRENETIK - 1 Allée d’Effiat - Le Parc de l’Événement - Bât. H 91160 Longjumeau - France +33 (0)1 69 10 50 81 frenetik.fr...
