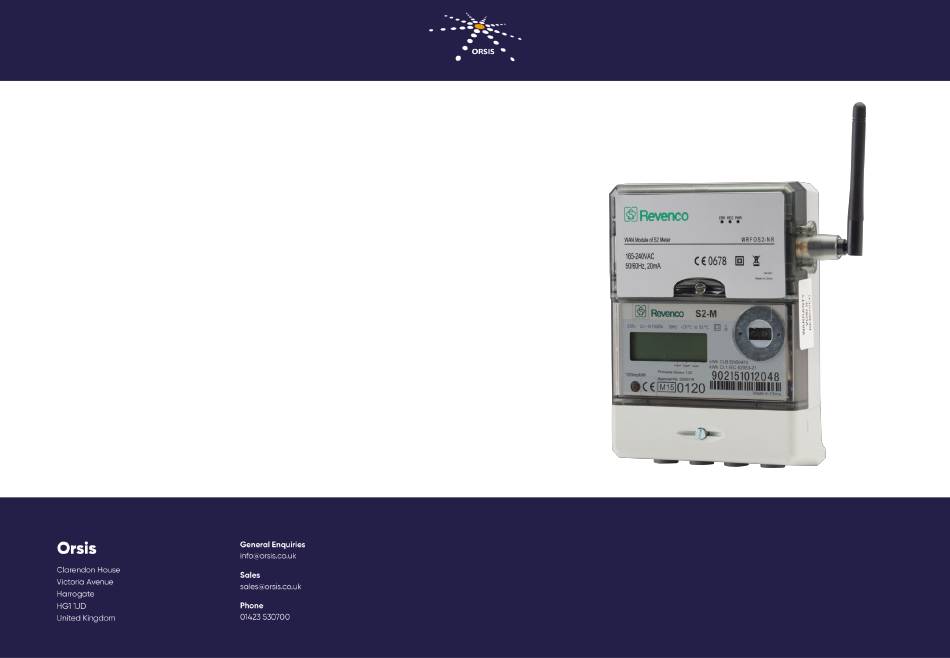

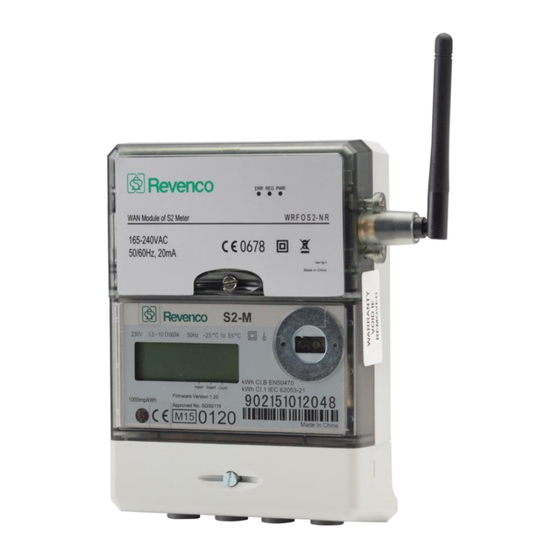

- Page 1 MAN35 Version 1 Issue Date: 01/02/2019 Installation manual Orsis S2-M single-phase meter & module...
- Page 2 MAN35 Version 1 Issue Date: 01/02/2019 S2-M Meter connection diagram Display in LCD Indicator Display indicators Number display Display page Reverse Run Indicator Error/Alarm Wireless Communications available On optical communications Energy flow – Import Energy flow – Export Counter On wireless communications...
- Page 3 MAN35 Version 1 Issue Date: 01/02/2019 Display index screens This identification is marked on the nameplate. Typical display sequences and a list of displayable data. There are 4 main display screens that the meter will automatically scroll through during the display cycle and are as follows: 1.
- Page 4 MAN35 Version 1 Issue Date: 01/02/2019 Display Index Screens - continued In the example of a generation meter, this would occur if the meter had been wired back to front or if the solar panels were not generating, the inverter(s) would still require power and would therefore draw energy from the national grid (essentially pulling power backwards through the meter).
- Page 5 MAN35 Version 1 Issue Date: 01/02/2019 Orsis communications module LED Description There are three LEDs defined as power (PWR), registration status (REG) and error indication (ERR) from left to right on the front of the module as shown below. Status Description LED Status Normal system power Always On...
- Page 6 MAN35 Version 1 Issue Date: 01/02/2019 Flashing Sequence Error LED Error Definition List Always Off Registered 1 Flash SIM card requires changing 2 Flashes Meter not connected to module 4 Flashes External Flash Read-Write Error 5 Flashes GSM Module not started 6 Flashes GSM Module serial communication error 7 Flashes...
- Page 7 MAN35 Version 1 Issue Date: 01/02/2019 Meter Commissioning Phase If the meter is being used for remote monitoring, it is essential that the commissioning engineer contacts the Orsis support team to confirm the communications paths are operational between meter and module via GPRS BEFORE leaving site. The metering system will not be deemed operational until Orsis support staff confirm all communications are connected.
- Page 8 Version 1 Issue Date: 01/02/2019 How to change the SIM card in an Orsis S2-M module Isolate Ensure that the power to the meter is switched OFF. PLEASE DO NOT REMOVE THE MODULE FROM THE METER – THIS WILL VOID ANY WARRANTY AND MAY CAUSE DAMAGE TO THE MODULE.
- Page 9 MAN35 Version 1 Issue Date: 01/02/2019 The new SIM card goes in this way Remove the SIM card Press the new SIM card inwards and it should click and Press the SIM card inwards and it should spring back out of ‘lock’...
- Page 10 MAN35 Version 1 Issue Date: 01/02/2019 Close the SIM card cover Slide the grey plastic cover back down to close the module. Refit the small screw and tighten to lock the cover in place. DO NOT OVER TIGHTEN. Stick the barcode sticker back down to cover the screw Power up the meter Power up the meter, once there are 2 green LEDs lit, this meter and module have successfully connected.
