- Page 1 FAP Series Operating Directions ® FAP Series HVAC Air Purification System Operations Manual Thank you for purchasing the FAP Series HVAC Air Purification Product. New Environmental International...
- Page 2 ( Packaged Air Unit ) etc. 2, FAP all is dual probes. 3, When selecting model over the FAP series, You can be select many FAP models to installing parallel and operation, It can be to promote the purification effects.
- Page 3 FAP Series Operating Directions ---Pure UV System: FAP-100-700DV. ---Auto: Programmable Timer or Auto/Man Control Box. ---Remote control interface. Figure-1 FAP Size Diagrams 212-540 mm 4.8cm 25 cm 31 cm L: red N: green（blue） Ground: = yellow New Environmental International...

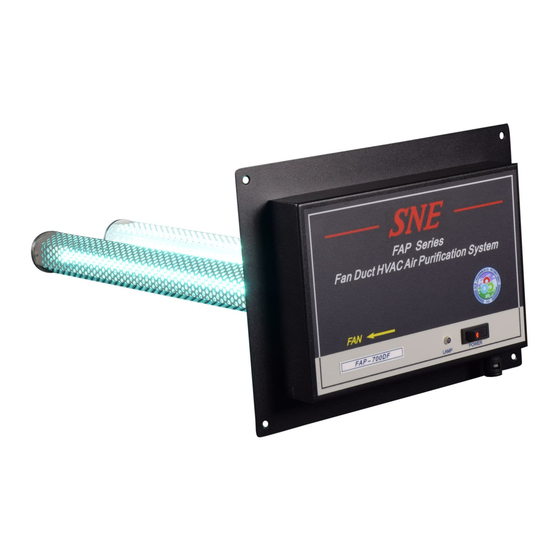

- Page 4 CAP Series Operating Directions Figure-2 FAP Panel Diagrams ® FAP Series Fan Duct HVAC Air Purification System FAP-300DF LAMP POWER Figure-3 FAP Install Diagrams New Environmental International...
- Page 5 CAP Series Operating Directions ® Technology has been Tested and Certified by the Figure-4 FAP Size Diagrams 1 cm Install Ø0=0.5cm Probe Ø=4.8cm Install can >5.5cm 31 cm 8 cm Install Ø1=0.4cm Install Ø2=0.4cm 14 cm 9 cm 23 cm Remarks: New Environmental International...
- Page 6 CAP Series Operating Directions A: Fixed and Connected UV probe with the electrical box fitting. B: UV Lamp. C: Fixed and Connected UV probe with the “ A “ fitting. D: Probe= B + C. Installation: 1, Power Supply: ---AC/100-250V/50-60Hz. ---FAP power must be connected to the AHU or PAU air blower power, The AC air blower operating, FAP open, AC air blower close, FAP close, too.
- Page 7 CAP Series Operating Directions 1, After 2-3 years of normal use, or 1.5 years of continuous use, the UV Probe will need replaced. 2, “Off” the power or unplug from the power supply. 3, Unscrew the 2 units X “A” 4 units Ø1 =0.4 cm ( Figure-4, A: Fixed and Connected probe with the electrical box fitting).
