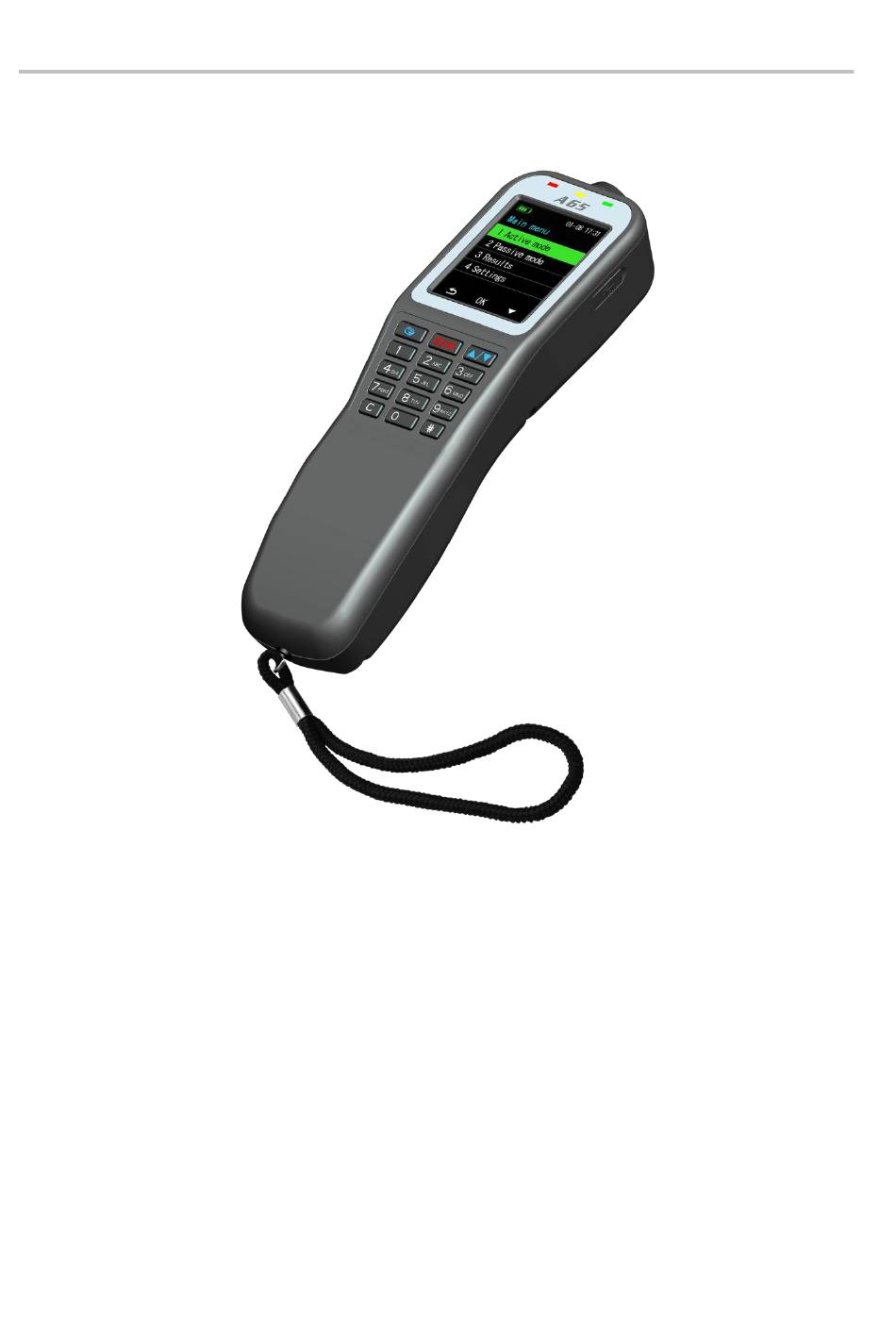

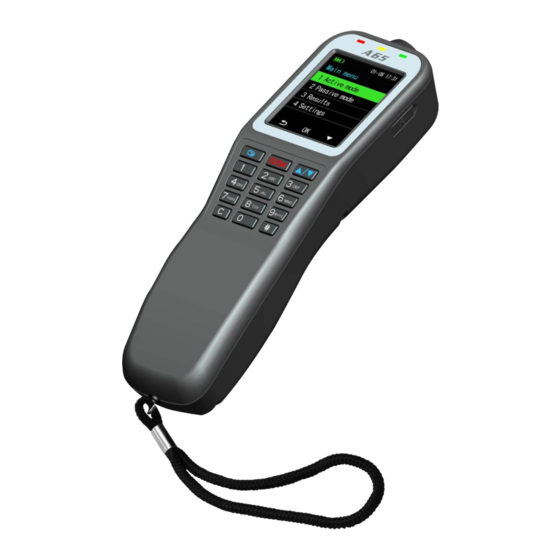

- Page 1 AlcoEasy A65 Alcohol Analyzer Operating Manual V1.0...
-
Page 2: Table Of Contents
CONTENT INTRODUCTION ..........................3 FUNCTION SAFETY AND PRECAUTIONS..................3 PRODUCT AND FUNCTION ......................3 CONFIGURATION、ICON AND SYMBOLS ................... 4 CONFIGURATION ........................4 Icon ..............................4 Symbols ............................5 PREPARING FOR OPERATION ..................... 5 Start with a new device ........................5 Start with a used device ........................ -
Page 3: Introduction
The AlcoEasy A65 is new generation alcohol analyzer. The newest technology has been used in this device. AlcoEasy A65 has used fuel cell sensor which doesn't react with other substances, so make surethe accuracy of the test. AlcoEasy A65 used the professional gas flow measurement technique, this ensures that the sensor receives only deep lung air which reflects the blood alcohol content correctly. -
Page 4: Configuration、Icon And Symbols
USB port Display Power button Button Handle（inbuilt printer） Lanyard hole Front view 4.2 Icon Symbols Description Symbols Description 29.5℃ Capacity indicate Environment temperature 17:31 Clock Back Up button Main menu Down button Power switch AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 5: Symbols
5 Preparing for operation 5.1 Start with a new device The AlcoEasy A65 is calibrated according to the requirements before they reach to the user. 5.2 Start with a used device It should be clear that the device was calibrated before use. If it was expired for calibration, the device can’t be used. -
Page 6: Take Measure With Active Mode
Or the person should wait at least 2 minutes after smoking. 5.5.2 Measuring Put in mouthpiece The mouthpiece has to be inserted into the mouthpiece port before blow. The mouthpiece can only be used one time. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 7: Printing
Active mode mg/100mL 00011 Printing Date: 2016.01.08 Time: 17:31 Input Pr int Attention： Only after one printing has been completed,the next printing can be started. The user can print any record in the “Results” menu. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 8: Switch Off
If there is no use for more than 2.5 minutes, the device will turn off automatically 5.7 Error message 5.7.1 Blow failure If the test person didn’t blow enough air into the device,it will show Blow Failure on the display. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 9: Low Battery
And only after this, the device will recover the old data by new data. 7 Main menu After it is switched on, the device automatically comes to the “Active mode”: 01- 08 17 31 Active mode READY AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 10: Active Mode
Results Settings If active mode didn’t detect alcohol(0<C<20mg/100ml), it will show as follow and indicator light will show green. 01- 08 17 31 Active mode mg/100mL 00011 Date: 2016.01.08 Time: 17:31 Input Pr int AlcoEasy A65– Alcohol analyzer –Operating manual... - Page 11 00011 Date: 2016.01.08 Time: 17:31 Input Pr int If the test person didn’t blow enough air into the device,it will show Blow Failure on the display. 01- 08 17 31 Active mode Blow Failure AlcoEasy A65– Alcohol analyzer –Operating manual...
-
Page 12: Passive Mode
The history Data is stored, including history testing results, date and time, record no.. The user can find every measurement in this menu. The last value measured can be seen on the display, when you press “Ok”button. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 13: Setting
4 4 . TP Cali. 4 5 . Services Press“OK”button, it will go to next menu. 7.4.1 Date and Time ： Select “date and time” menu, press “ok” button, it will display as below AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 14: Units
100mL BAC ug 100mL BrAC 4 2 . Units ‰ BAC mg L BrAC 4 3 . Function %( / g 100mL BAC mg L BrAC 4 4 . TP Cali. 4 5 . Services AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 15: Function
Result mode Air blank set 01- 08 17 31 01- 08 17 31 4 3 . Function Air blank set Cali Remind Air blank set .3 Print setting Print Number Result mode Print setting AlcoEasy A65– Alcohol analyzer –Operating manual... - Page 16 .3 Print setting Print Number Result mode 7.4.4 Touch panel calibration Touch screen will have deviation after long time use, which leads to click error or no action.Touch screen calibration is required, process as below: AlcoEasy A65– Alcohol analyzer –Operating manual...
-
Page 17: Services
Organic solvents such as pure alcohol, acetone, turpentine etc. are not allowed for cleaning. Be care for not let water come into the device inside. 8.2 USB Port Keep the USB port in a dry and clean condition. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 18: Calibration & Services
Calibration should operate by authorized person. 10 Battery Charge 10.1 Capacity Indicator AlcoEasy A65 battery rate can know clearly via the battery Indicator on the left top screen. If battery too low, the indicator mark of the screen will display as follows: Please charge 10.2 How to Charge... -
Page 19: Error And Remedy
Blow again and reach to 1.0L 01- 08 17 31 Active mode Blow Failure If this error happens again after Date and time error time adjustment, please contact with service department 。 Time Error AlcoEasy A65– Alcohol analyzer –Operating manual... - Page 20 。 Memory Error Please re-test. if this error appear again, get help from service people。 Calibration overdue Please re-calibrate Cali.Overdue AlcoEasy A65– Alcohol analyzer –Operating manual...
-
Page 21: Technical Specifications
The previous measure is 100 mg/100ml ： below about 7 second The previous measure is >100 mg/100ml Fast fuel cell Sensor type： Cross sensitivity： Disposable, single way Mouth pieces： ‰BAC, mg/L BrAC, mg/100ml BAC, Units： Add upon customer's requests. AlcoEasy A65– Alcohol analyzer –Operating manual... -
Page 22: Product Warranty
Pls note all the freight of the devices should load on the users. 14 Key Parts Name Model Specification 0.2ml Pump 2.4 inch TFT Screen A317 Alcohol Sensor Shenzhen InterMed Co., Ltd 5F, West,Building 64,Jinlong Industry Zone, Qiling Rd.,Nanshan District, Shenzhen,China,518054 电话：0755-86067522 传真：0755-86067533 AlcoEasy A65– Alcohol analyzer –Operating manual...
