Features
• QS-R-DOPTO is the most popular unit in the QwikSwitch Range, having the
ability to change to a dimmer or a relay receiver.
• Default Mode: ON/OFF - Mode needs to be set at installation.
• Please consult the QwikSwitch Website for a list of tested compatible LED's.
• This device is controllable from the WiFi Bridge (QS-WIFI-BRIDGE) remotely
- Set schedules - Turn on / off devices - Device Status
• Not to be used for CFL Dimming - Can switch CFL ON/OFF (Relay Mode)
Dimmer
Specifications
• Input - 230 Vac, 50Hz
• Max Output - 1A (Relay Mode) / 200W (Dimmer Mode)
• Form Factor - Moulded casing - 86mm (L) x 36mm (W) x 29mm (H)
• Radio Frequency - 868 Mhz
• Range - 30m through walls and floors, 100m line of sight.
• Repeaters (QS-T-REP) available if needed.
DIMMER
RECEIVER
SWITCH
1A
Note: Neutral to the load may be
supplied from the receiver or
from the neutral run in the ceiling

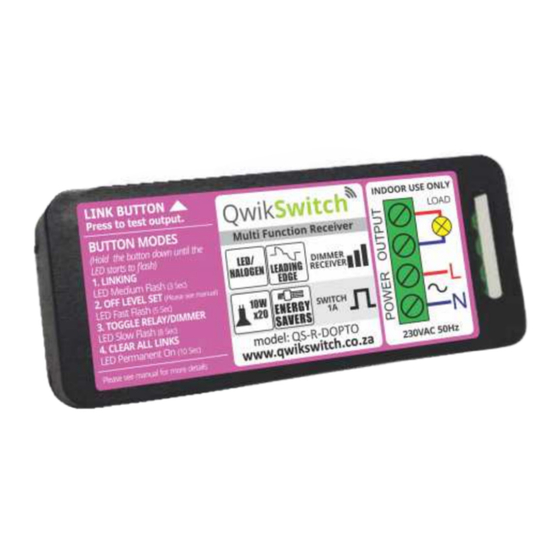

200W/1A Multi Function Receiver
Dimming or ON/OFF in
one unit!
Relay
1A
www.qwikswitch.co.za
QS-R-DOPTO
MAX 1A
(Switched Output)
230V AC 50Hz
(Mains supply)
