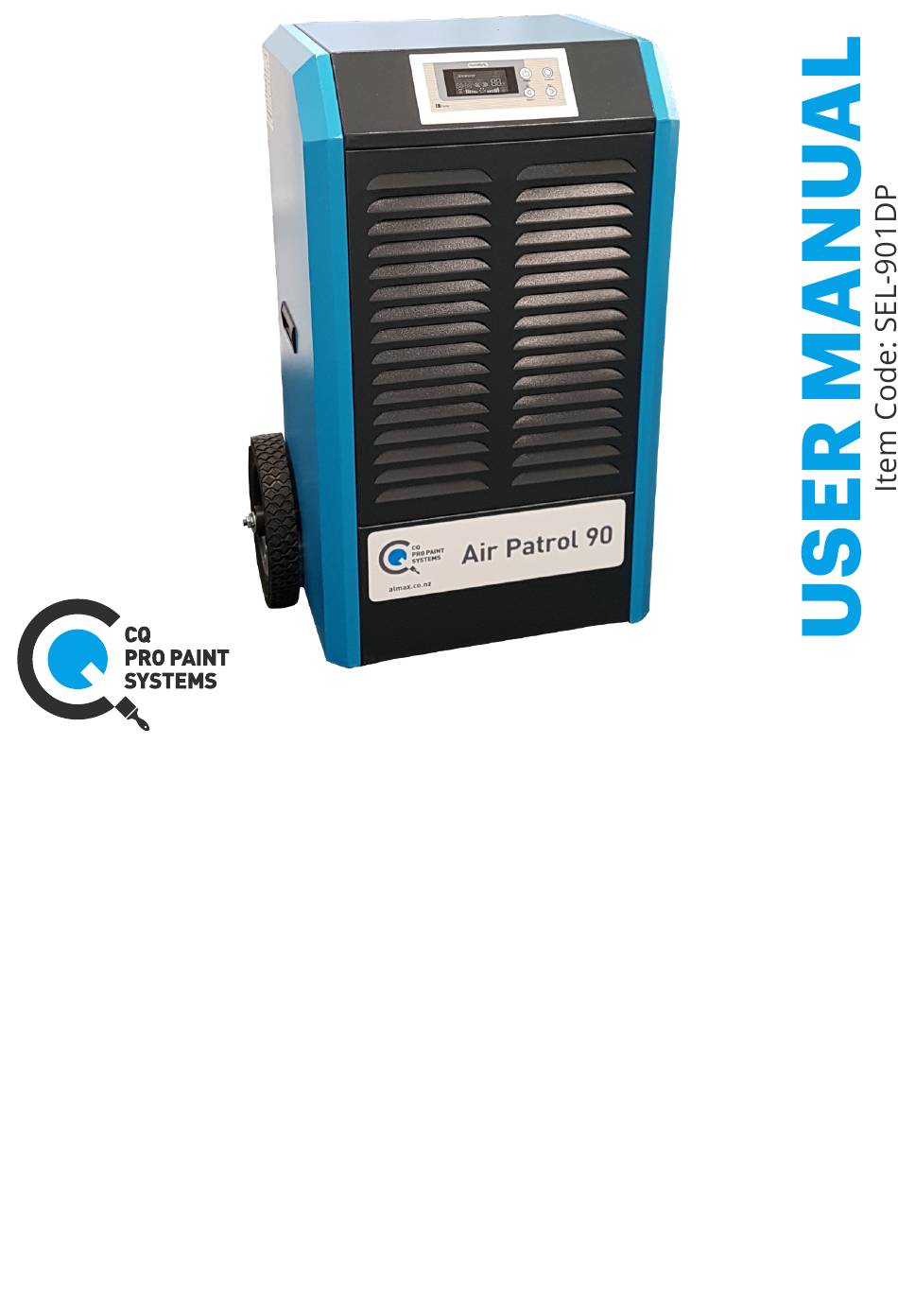

Air Patrol 90L Dehumidifier with Pump
For your safety and correct usage please read manual carefully and keep it so
you can refer to it at any time. We recommend that any repairs are carried out by
a suitably qualified person.

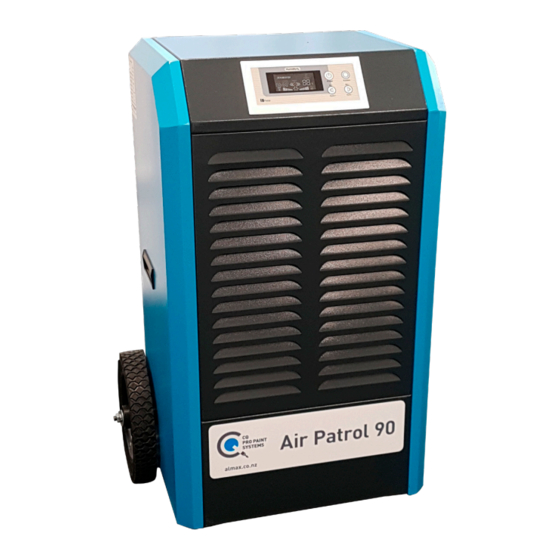

The CQ Air Patrol Dehumidifier is an industrial unit, designed for reducing air
humidity in an enclosed space.
-
Removes up to 90L of moisture per day.
-
Mobile on easy to roll castors.
-
Digital controls for easy operation.
-
Airflow 1000m3 per hour
-
Weight 48kg
INTRODUCTION
Advertisement
Table of Contents
Summary of Contents for Almax Air Patrol 90L
- Page 1 Air Patrol 90L Dehumidifier with Pump For your safety and correct usage please read manual carefully and keep it so you can refer to it at any time. We recommend that any repairs are carried out by a suitably qualified person.
- Page 2 IMPORTANT SAFETY INSTRUCTION 1. Make sure the power supply is 230V 50Hz AC. The appropriate power switch should be grounded. 2. Please ensure equipment is in good condition and no oil leakage during transportation. The machine must be transported upright and not tilted more than 45º...
- Page 3 KEY OPERATING INSTRUCTIONS OPERATING INSTRUCTION - Press once to turn dehumidifier on. - To turn dehumidifier off, press again - fan will run for 60 seconds as it cools down the compressor. POWER - Normal Running – Press to set timer for dehumidifier to shut down.
- Page 4 OPERATING INSTRUCTIONS 1. Attach the clear discharge tube (5 metres supplied) to the outlet by removing the nut and sliding it back over the tubing. Then push nut and tube over the fitting and tighten, 2. Tubing should then be piped to a drain or container. 3.
- Page 5 DISPLAY PANELS & SYMBOLS DISPLAY ILLUSTRATION Rapid blinking – Panel keyboard is locked. Light – Keyboard unlocked. Dehumidifier On – When compressor is working, it is pulsing light. When compressor stops, dehumidification is blinking and there is no pulsing light. Dehumidification Off State –...
- Page 6 EQUIPMENT ROUTINE MAINTENANCE Weekly 1. Clean filter. The filter must be cleaned regularly to remove accumulation of dust, otherwise it will affect the efficiency of the dehumidifier. To remove filter, open latch at top and pull away. Then lift filter door out of the locating pins.
- Page 7 COMMON TROUBLE SHOOTING Malfunction Check Solution Power off Connect power No Operation Plug not inserted Make sure plug inserted Dust accumulated Clean filter net Obstacle in front of grill Remove obstacles from around machine No Effect Humidity not set Set desired humidity below ambient humidity Area too big or not sealed Adjust space and seal...
- Page 8 Room Temp is too high Decrease room temperature to below 38°C which is maximum. Repower to restore to working state. Low Voltage Fault Ask professional personnel to check. High Voltage Fault Ask professional personnel to check. 0800 101 039 | sales@almax.co.nz | almax.co.nz...
