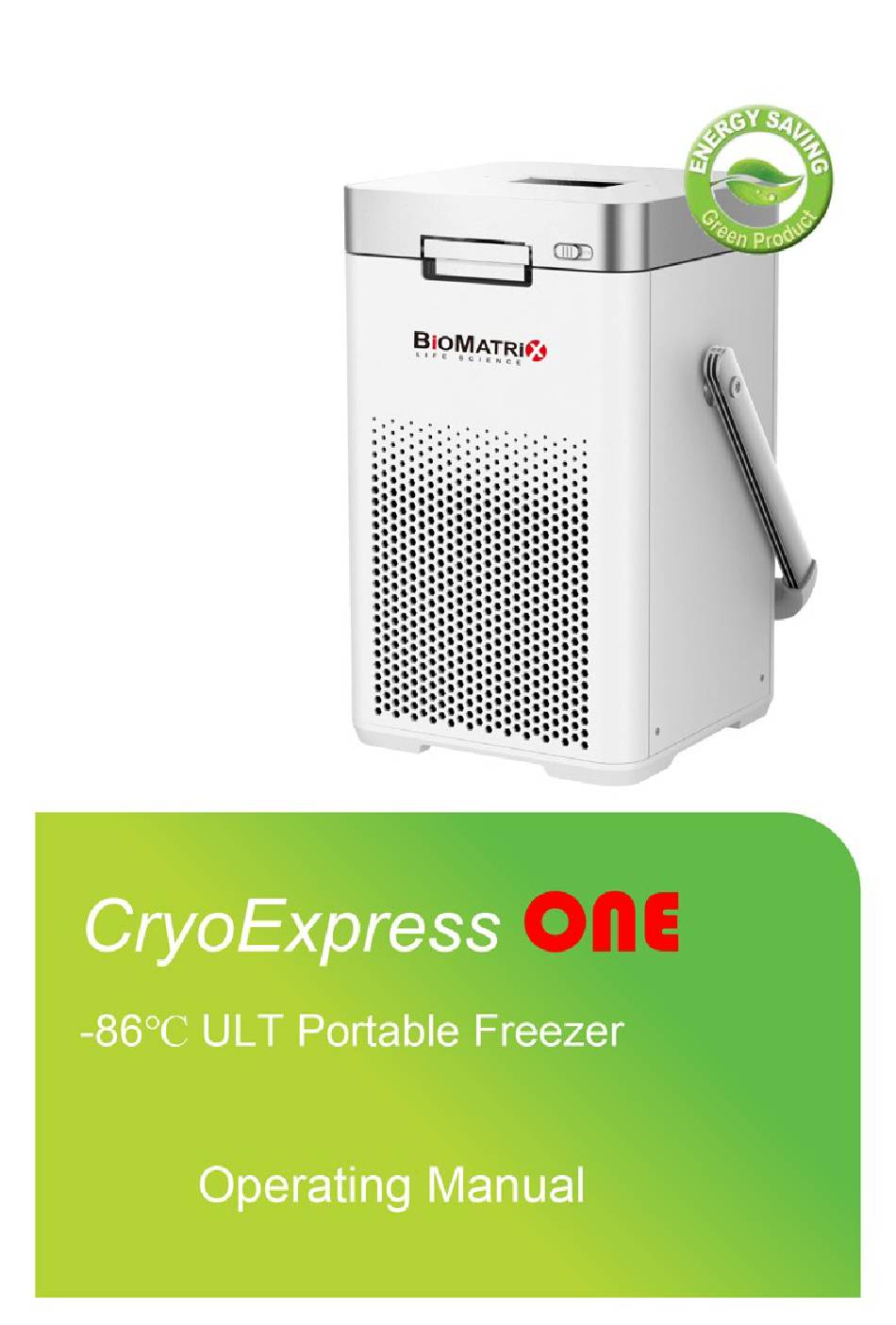

CryoExpress -86℃ ULT Portable Freezer Read this operating manual carefully before using the product. Improper handling may result in an accident. Be sure to save this manual. Table of Contents 1. Product Intro....................1 1.1. Description.....................1 1.2. Manual Contents ..................1 2. -
Page 3: Product Intro
1. Product Intro 1.1. Description The Freezer with free-piston Stirling engine technology differs from conventional compressor-based refrigeration. It provides high temperature efficiency, deep-temperature cooling in a lightweight package allowing true portable operation. The Freezer uses direct contact technique for refrigeration, highly advanced free piston Stirling technology, wide temperature range, precise temperature control of ±0.1 °C, light weight, easy to use, specially designed power control system and built-in backup battery. -
Page 4: Precautions For Safe Operation
2. Precautions for Safe Operation Before use, please read the following safety precautions carefully to prevent you and people around you from injury and your property from being damaged. Potential hazards associated with use of the -86℃ ULT Portable Freezer may impact the safety of persons in the workplace in which the freezer is placed. -
Page 5: Warnings
2.1. Warnings WARNING! Failure to observe WARNING signs could result in a hazard to personnel possibly resulting in serious injury or Death Do not put the freezer in water or pouring water on the unit operate where water may drip or fall on the unit electrical box. Operation under extreme environmental conditions, e.g., in very high humidity environments (RH 80% or more) also may lead to condensation or water intrusion. -
Page 6: Cautions
2.2. Cautions CAUTIONS! Failure to observe CAUTIONS signs could result in a hazard to personnel injury AND damage to the equipment Operating the unit in extreme environment conditions (35℃ 、 RH 80%) using Air conditioner is recommended to extend the life span of the unit. -
Page 7: Features Of The Freezer
3. Features of the freezer The -86℃ ULT Portable Freezer is designed to provide ultra-low temperature for storage and transportation for the product need ultra low temperature such as biological samples, cells, drugs, vaccine and clinical trail products intended for medical and research purposes. -
Page 8: Graphical User Interface
3.5. Graphical User Interface The User Interface (UI) is implemented on a touch screen control on the top of the unit. The UI allows the user to: Display all temperature and power status Display freezer identification information Set the temperature and Power ... - Page 10 7．Handle Aluminium handle with foam, strong easy to carry. 8．Power Switch and DC Socket Switch to turn ON/OFF the power to Freezer, DC socket is tagged with polarized signs to avoid errors. 9．Backup Battery Replaceable battery with locked cover. Providing backup power to freezer unit for more than 1 hour.
-
Page 11: Unpacking And Setup
4. Unpacking and Setup NOTE: Prior to setting up the freezer, inspect the unpacked unit and any included items for shipping damage. Compare all contents to the packing list for completeness. 4.1. Unpacking Remove the Freezer and all accessories from the box. Carefully inspect the freezer and all accessories for any shipping damage. - Page 12 A. Using AC Power source: After unpacking the Freezer, it can be connect to a power source. The Freezer can be used with either the AC Power source through AC-DC adaptor comes with the Freezer for lab, home or office use or the 12V-24V DC Power supply for mobile use in vehicles, it is recommended that the initial pull-down to Set-point be completed via AC power.
-
Page 13: Operation
5. Operation 5.1. Responsible Operation Responsibility for freezer operation should be part of the policy and procedure documentation or guidelines for the Freezer usage. Safety requirements are integral to these responsibilities, use this product only in the way described in the product literature and in this manual. - Page 14 parameters can be viewed and modified through the UI (User Interface) touch screen. Important changes to the Freezer settings require sustained button pushes, UI have screen lock that helps prevent accidental changes to the settings. Temperature can be set as needed on main screen with a touch. The UI is programmed with default values for most parameters.
- Page 15 2. The main interface displays the operation instructions: This interface is the default display interface and consists of 14 parts: Battery level display Display the current mode (off / cooling / heating) Display the set target temperature Change target temperature Temperature curve, showing the current temperature curve;...
-
Page 16: Error / Alarms And Troubleshooting
5.3. Error / Alarms and Troubleshooting Errors are displayed on the UI screen as E#, as show below; Screen Phenomenon Possible Trouble Code Possible cause alarm investigation reasons shooting Fuse blown Fuse blown Replace fuse Voltage DC voltage is Power abnormality abnormal Check or replace... - Page 17 Fan 2 frosting frosting Defrost Fan 2 not Check the fan 2 Whether fan 2 is wired wiring abnormal normal Fan 2 does not turn Contact Fan 2 after-sales damaged DC voltage is Fuse open Fuse blown Fuse blown Replace fuse Battery Battery Replace power...
-
Page 18: Maintenance & Service
6. Maintenance & Service The -86℃ ULT Portable Freezer is designed for years of trouble-free operation without a major maintenance. To prevent costly and inconvenient repairs and maintain your freezer to an optimum level of performance, follow the recommended preventative cleaning maintenance and contact an authorized service provider if needed. -
Page 19: Troubleshooting
7. Troubleshooting Trouble Possible cause Troubleshooting Insert Power plug inside the adapter tightly Power is not getting to the Freezer Assure that the wall plug is firmly seated Freezer does not Turn ON DC plug is not Check the DC plug and insert in properly inserted the socket firmly Car cigarette lighter... -
Page 20: Specifications
8. Specifications 8.1. Freezer Specifications The technical specification for the -86℃ ULT Portable Freezer is given below in detail: 110V - 240V (±10%) at either 50 or 60 Hz or 12-24V Electric Power DC from mobile source 100 watts (1 amps @120VAC, 0.5 amps @220VAC, 8 Maximum Power amps@ 12VDC, 4 amps@ 24VDC Operating... -
Page 21: Freezer Dimensions And Description
8.2. Freezer Dimensions and Description... -
Page 22: Freezer Performance Characteristics
9. Warranty: The following Warranty applies to the freezer manufactured by factory. International Distributor Limited Warranty; Warranty will start ONE MONTH after the ship date from factory. Facoty further warrants all products to be free from defects in materials under ...
