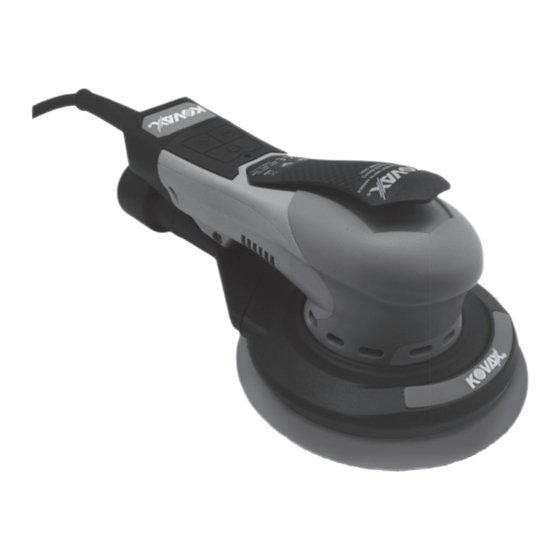

Summary of Contents for KOVAX PROMA-X ELECTRIC 150

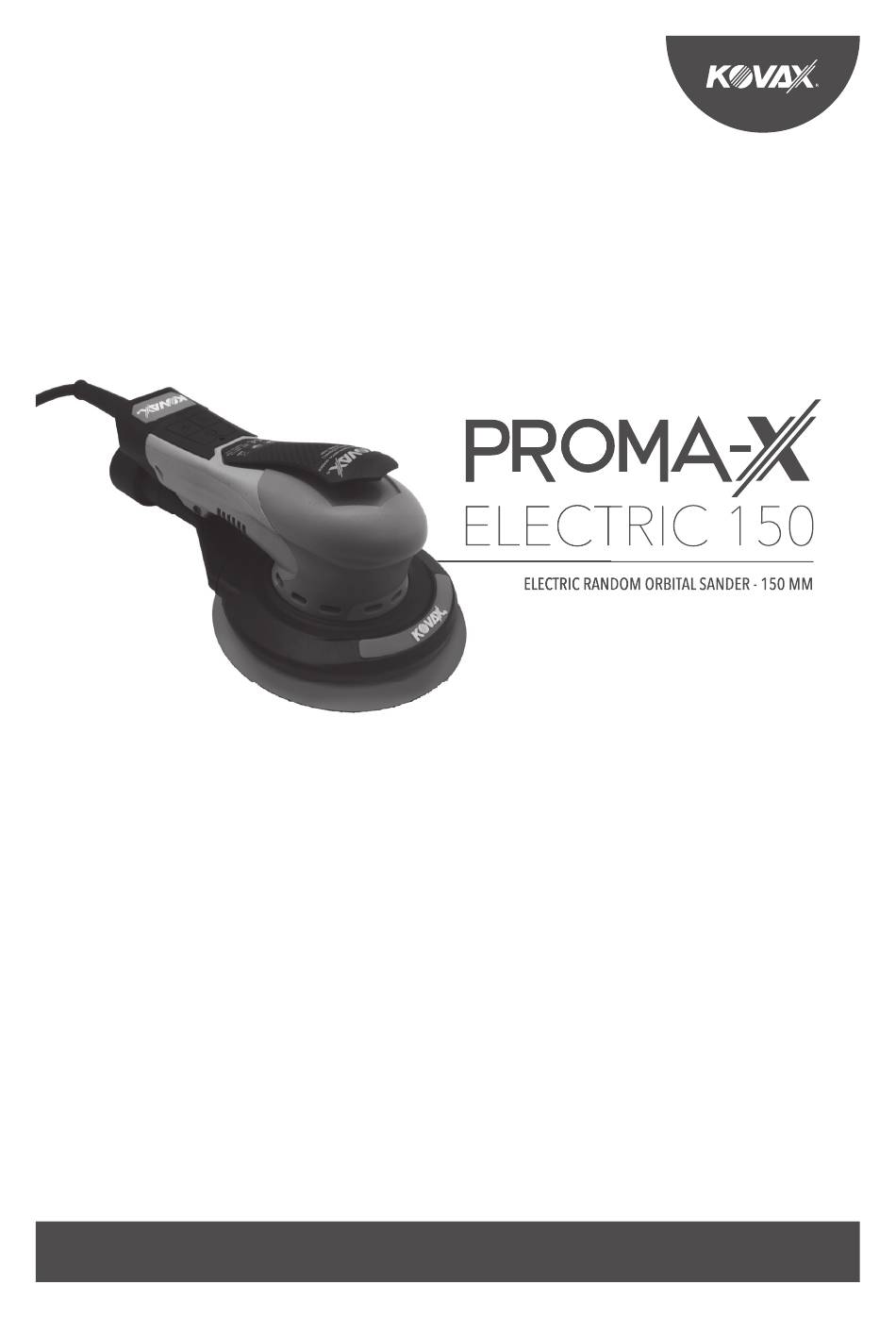

- Page 1 INSTRUCTION MANUAL Art.No.: 910-0500...
-
Page 2: Table Of Contents
Proper use of tool OPERATION & MAINTENANCE How to get started Operating instructions Overload Protection Systems Attaching the back-up pad Further service Cleaning Health & safety information Disposal information version: 1.0 date of issue: 14/6/2017 revision date: PAGE 2 | PROMA-X ELECTRIC 150... -
Page 3: Exploded View
EXPLODED VIEW TO VACUUM SYSTEM FOR CENTRAL VAC PAGE 3 | PROMA-X ELECTRIC 150... -
Page 4: Parts List
PAD WRENCH 24 MM 889 - 5467 KOVAX BACK-UP PAD 150 MM - CREATED FOR THE PROMA-X ELECTRIC 150 910-0500-20 VALVE STEM ASSEMBLY 910-0500-21 DUST COVER 910-0500-22 SPRING 910-0500-23 PRINTED CIRCUIT BOARD CONTROLLER (220 - 240 V) 910-0500-24 HEAT SINK 910-0500-25 DUST SEAL 910-0500-26 LINE DEDUCTION 910-0500-27 SOCKET BUTTON HEAD CAP SCREW (M4X25) 910-0500-28 HEX. NUT (M4) 910-0500-29 PLUG 910-0500-30 PLUG 910-0500-31 HEX SOCKET HEADLESS SET SCREW (M2X5) PAGE 4 | PROMA-X ELECTRIC 150... -
Page 5: Torque Setting
HEX SOCKET HEADLESS SET SCREW (M3X10) 910-0500-41 6 FT. VACUUM HOSE - Ø 28 MM (1") 910-0500-42 HOSE END ADAPTER Ø 28MM (1") - HOSE THREAD x 1-1/2" (38.1 MM) O.D. 910-0500-43 BUTTON FASTENER Torque Setting ITEM in/lbs. (Nm) 55 - 65 (6.2 - 7.3) 8.67 (0.98) 8.67 (0.98) 13.1 (1.47) 8.67 (0.98) 8.67 (0.98) 10.4 (1.17) 17.34 (1.96) PAGE 5 | PROMA-X ELECTRIC 150... -
Page 6: Warranty Seal
IF SEAL IS BROKEN The seal is placed over the screw hole. VALID WARRANTY VOID WARRANTY If the seal is completely intact If the seal is damaged the warranty is valid. the warranty is void. PAGE 6 | PROMA-X ELECTRIC 150... -
Page 7: Declaration Of Conformity
DECLARATION OF CONFORMITY Kovax Europe B.V. | 7602 KC Almelo | The Netherlands We declare under our sole responsibility that the product ProMa-X Electric 150 mm (6") 10,000 rpm Electrical Random Orbital Sander to which this declaration relates is in conformity with the following standards or other normative documents: EN 60745-1, EN 60745-2-4, EN 61000, EN ISO 3744, UNI EN ISO 11203, UNI EN 28862, UNI EN ISO 5349 in accordance with regulations 2006/42/EC, 2004/108/EC. Almelo, 05.06.2017 Place and date of issue Company Willem Mulderij... -
Page 8: Warning & Caution
- A lways wear required personal safety protection in accordance with manufacturer’s instructions and local/national standards while using this tool. - The electrical safety of the tool is granted only by using original Kovax back-up pads. - D o not use a power tool if you are tired or under the influence of drugs, alcohol or medication. - Read the Safety Data Sheet (SDS) for the work piece or abrasive materials. Contact the suppliers for a copy of the SDS. -
Page 9: Technical Data
Kovax cannot be held responsible for the consequences of using declared values instead of actual exposure values for any individual risk assessment. -
Page 10: Operation & Maintenance
Overload Protection Systems The ProMa-X Electric 150 has two systems to protect the motor and circuit board from overloading and overheating. Downforce Overload System During periods of overly high user downforce, the tool will flash the LED from green to red and cause the motor to slow slightly as a warning to the user. Continuous downforce should be no greater than approximately 5 Kg (11 lb.). If the user continues with overly high downforce, the tool will change the LED to solid red and stop. To restart the sander,... -
Page 11: Attaching The Back-Up Pad
Periodically blow out all the air passages and areas under the shroud with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. Never use solvents to clean plastic parts. Wear safety glasses. Health & safety information This product and the associated component parts are “RoHs Compliant” and do not contain any of the substances in excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC and other amendments issued as of the date code marked on the product. Disposal information Do not dispose of electric tools along with household waste. According to European Directives 2002/95/EC, 2012/19/EU + 2003/108/EC on waste electrical and electronic equipment and its implementation under national law, electric tools that have reached the end of their life must be collected separately and taken to an environmentally compatible recycling facility. PAGE 11 | PROMA-X ELECTRIC 150... - Page 12 Kovax Europe B.V. Bedrijvenpark Twente 49 7602 KC Almelo The Netherlands www.kovax.eu...
