ELMACRON VA/V3 Manual

Water sampler

Advertisement

Quick Links

Water Sampler
VA/V3
v. 2.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA/V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELMACRON VA/V3

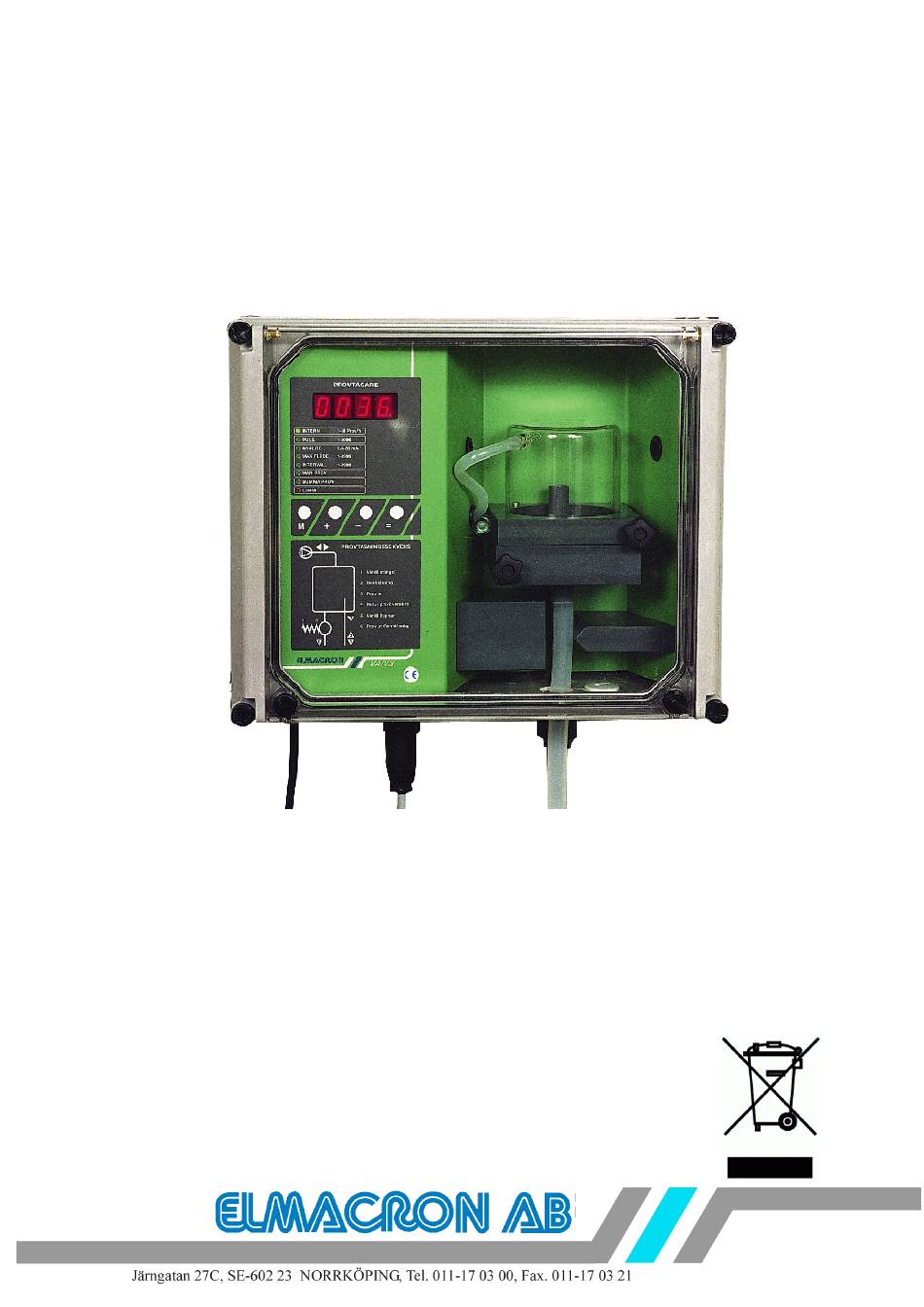

  • Page 1 Water Sampler VA/V3 v. 2.6...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION................................2 1.1 CONSTRUCTION..............................2 1.1.1 Control unit................................. 2 1.1.2 Sampling unit ..............................2 1.2 PARTS..................................2 2. INSTALLATION................................3 2.1 CASING..................................3 2.2 MOUNTING................................3 2.3 ELECTRICAL INSTALLATION ..........................3 2.3.2 Alarm output ............................... 4 2.3.3 Connection of a potential free contact (level sensor etc)..................4 2.4 CHECKING THE CONNECTIONS ..........................4 3.
  • Page 3: Introduction

    1. INTRODUCTION VA/V3 water sampler is designed as an all-purpose unit capable of sampling both contamined and clean water in all kind of industries. 1.1 CONSTRUCTION VA/V3 water sampler has a robust, splashproof plastic casing with a transparent front cover.
  • Page 4: Installation

    2. INSTALLATION 2.1 CASING VA/V3 is mounted in a robust splashproof casing made of glassfiber reinforced polyester with transparent polycarbonate front cover. The protection class is IP 65. 2.1.1 ( mm ) 2.2 MOUNTING The water sampler shall be mounted vertically using four screws (∅ 7 - 9 mm). The mounting is done through the four mounting brackets at the rear side of the sampler.
  • Page 5: Alarm Output

    2.3.2 Alarm output Alarm output for connection to an external alarm unit. Max load: 24 VDC 2.3.3 Connection of a potential free contact (level sensor etc) Connection is made through the black and black wire on the external control cable. 2.4 CHECKING THE CONNECTIONS Before the main supply is turned on, please check that the connections are correct made (both mechanical and electrical).
  • Page 6: Functions

    When water is present in the vacuum tube the sampler immediately turns off all active functions and empties the sample bottle. Error code E-08 is shown on the display. In this case, contact Elmacron AB. INTERNAL 1 - 36 samples/h...
  • Page 7: Analog

    3.3.3 ANALOG Flow related sampling 0/4 - 20 mA. The sampler is controlled by a mA - signal, where mA is proportional to the flow. Accumulating of the flow is performed and when accumulated flow = pre-set interval, the sampler takes a sample.
  • Page 8: Keys

    3.4 KEYS The front panel is provided with function keys, are accelerating when they are kept pressed. FUNCTION 1 FUNCTION 2 Steps down the menu Increase numeric Interrupt sampling when pressed together with setting Decrease numeric Interrupt sampling when pressed together with setting Confirm settings Start sampling...
  • Page 9: External Control

    1. Press at the same time to enter the menu. 2. Step to INTERNAL with 3. Set the number of samples (1 - 36) per hour with 4. Confirm with 5. Choose between FLon and FLoF. Use 6. Confirm and start sampling with 7.
  • Page 10: Alarm: Empty Sample Bottle

    The interval is set to 3,6/3 = 1,2 m between samples. Ex.3 Max. flow 3,6 m Number of samples 6 samples/h The interval is set to 3,6/6 = 0,6 m between samples. Because the interval range is 1.000 - 9999 m between samples, you have to multiply both the flow and the interval with the same factor.
  • Page 11: Sampling Sequence

    Sampling is carried out after settings of the actual parameters. VA/V3 restarts automatically according to the latest settings when turning the main supply on. 5.1 SAMPLING SEQUENCE During sampling sequence, you can follow the steps in the sampling sequence at the display.
  • Page 12: Maintenance

    6. MAINTENANCE 6.1 CLEANING Cleaning of the sample bottle and tubes is recommended when there is visible dirt or at the error message . Check that the main supply is disconnected to avoid unintended sampling. E - 0 1 1. Open the front cover. 2.
  • Page 13: Hardware Check

    6.3.1 Pre calibration 1. Disconnect the power supply. 2. Connect the reference instrument to VA/V3 through the Amphenol contact at the lower side of VA/V3. NOTE! Check the polarity; brown connector to and blue connector to 3.
  • Page 14: Troubleshooting

    Check pulse transmitter E-05 Interval > max flow Decrease the interval E-06 Max flow / interval > 36 samples Increase the interval E-07 Water in the vacuum tube Contact Elmacron AB E-08 Overflow protection is activated Memory error Contact Elmacron AB E-99...
  • Page 15: Specifications

    8. SPECIFICATIONS Dimensions; casing 372 • 302 • 175 ( mm ) Sample volume Adjustable 20 - 50 - 100 - 150 - 200 - 250 ml / sample Number of samples 1 - 36 samples / h Main supply 220 V Protection IP65...
