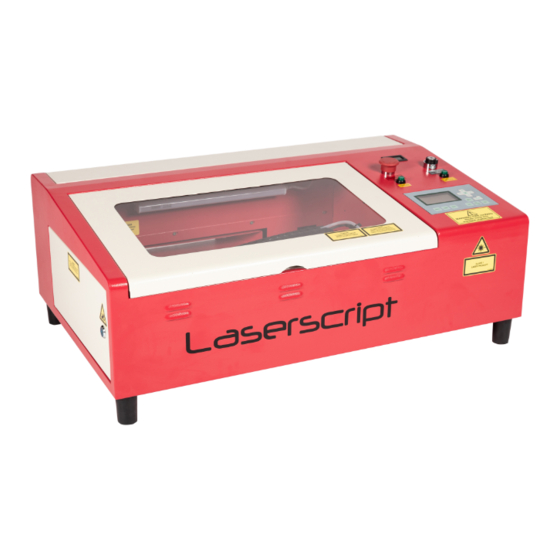

Summary of Contents for HPC Laser LS 3020
- Page 1 HPC LASER LS 3020 MANUAL HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
-
Page 2: Table Of Contents
FIRE SAFETY Section 1: Unpacking your engraver Section 2: Laser tube / pump Section 3: Fan Unit Section 4: Installation of Software Section 5: Operating Engraver TROUBLESHOOTING ENGRAVER MAINTENANCE HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... -
Page 3: Laser Safety
It is recommended that the user wears eye protection, especially when aligning the beam. HPC laser can supply suitable glasses. Alternatively 10.6 micron protective eye wear can be purchased elsewhere. This protection will not impair viewing and can easily be combined with safety glasses. - Page 4 NEVER operate with any of the covers or enclosures removed, and never modify the enclosure. The laser is invisible! HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
-
Page 5: Unpacking Your Engraver
Push on the power connectors to the laser tube, black at the mirror end, red at the control panel end, secure these in place with a blob of silicone (dow corning 732 multipurpose sealant). HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... -
Page 6: Laser Tube / Pump
–re-tighten clamps on completion double check the engraver is level. Close the rear flap over the laser tube, lock and remove keys (put away for safe keeping) HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... - Page 7 Do not hold the “laser” switch down, just enough to make a black point appear. The position of black point should be in the middle of reflection lens (as picture 2). Follow the above instructions for lens 1 and 2 HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
- Page 8 YOUR MACHINE IS NOW READY TO USE Note: if machine is re-sited, the above procedure needs to be repeated If your machine was installed by an HPC LASER ENGINEER please refer from this section:- HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
- Page 9 FUNKY FOAM Not Suitable Tips for getting better results from engraving: A. Slow the speed down B. Un-tick the bi-directional box C. (Reduce any lines) by reducing scan gap HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
-
Page 10: Troubleshooting
Problem: No laser beam but the engraver appears to be running normally. Solution: Make sure focus is set properly Make sure the power and speed settings are appropriate Please refer to setting sheet provided with your machine HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... - Page 11 When you are done, be careful to remove any cotton threads that may have snagged on the mountings, and allow the optics to dry before you operate your engraver. HPC LASER LTD – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
