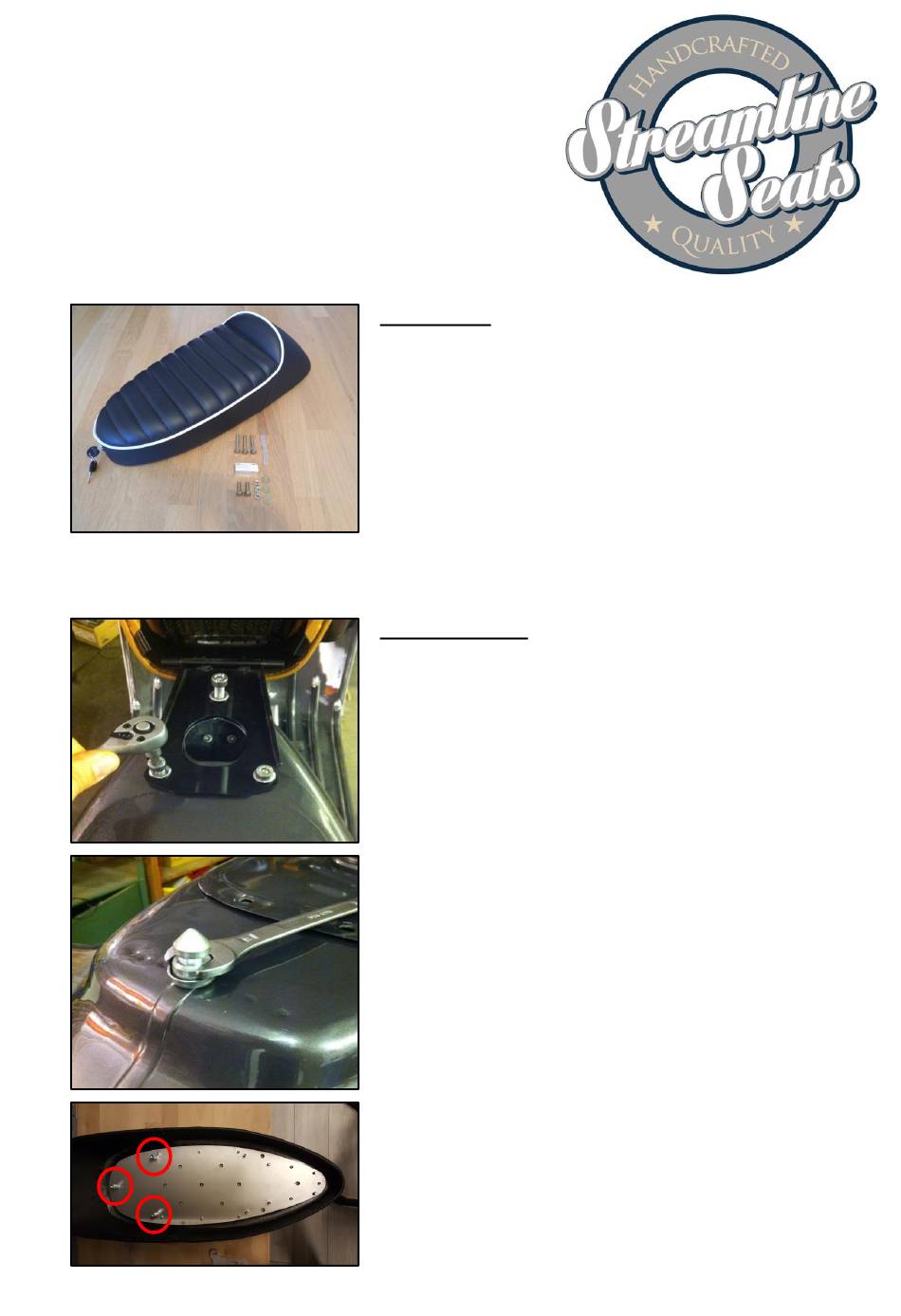

Assembly Instructions

Streamline Seats

Model: Pace

(Vespa Largeframe Oldie) with

front hinge

1 x upholstered seat

1 x cover plate

1 x front hinge

2 x headless screw M7

5 x washer M7

3 x hexagon bolt M7x20

3 x lens head bolt M6x10

2 x self-locking nut M6

2 x nut M6

5 x spacer nut M6x20

5 x spring ring M6

7 x washer M6

2 x nut M7

4 x rubber buffer D=25 / H=15

Step 1: Unscrew the front bolts for the mounting of the old seat as

well as for the tank and remove the seat.

Step 2: Unscrew the two rear bolts for the mounting of the tank.

Step 3: Remove the cone bolt for the locking mechanism of the

old seat.

Step 4: Screw in the three M6x20 spacer nuts together with the M6

washers and M6 spring rings on the three rear riveted threads.

Table of Contents

Need help?

Do you have a question about the Pace and is the answer not in the manual?

Page 1 Assembly Instructions Streamline Seats Model: Pace (Vespa Largeframe Oldie) with front hinge CONTENTS 1 x upholstered seat 1 x cover plate 1 x front hinge 2 x headless screw M7 5 x washer M7 3 x hexagon bolt M7x20 3 x lens head bolt M6x10...
Page 2 Step 5: Screw in the two M6 nuts on the M6x10 lens head bolts and insert both completely at the front of the hinge (stopper for the front hinge arms). Step 6: Adjust hinge in the back with the elongated holes and fasten it on the frame with the three M7x20 hexagon bolts and washer Step 7: Screw in the headless screws together with the washers...
