L500pro – 500 mW / 808 nm
L800pro – 4 x 200 mW / 660 nm
L2000pro – 4 x 500 mW / 808 nm
LLLT - Low Level Laser Therapy / PBM - PhotoBioModulation
NOTE: Please read this User Manual thoroughly
assistance & advice please contact Energy Laser A/S, or your local dealer direct
Energy-Laser A/S
Sønderskovvej 12 A
DK-8520 Lystrup
Quick Guide
ENERGY-LASER
info@energy-laser.com
www.energy-laser.com
© Copyright Energy
™
before use.
For further
Tlf.: (+45) 3110 5610
Ver. PM-27.12.2018
Advertisement
Table of Contents
Related Manuals for Energy-Laser L500pro
Summary of Contents for Energy-Laser L500pro

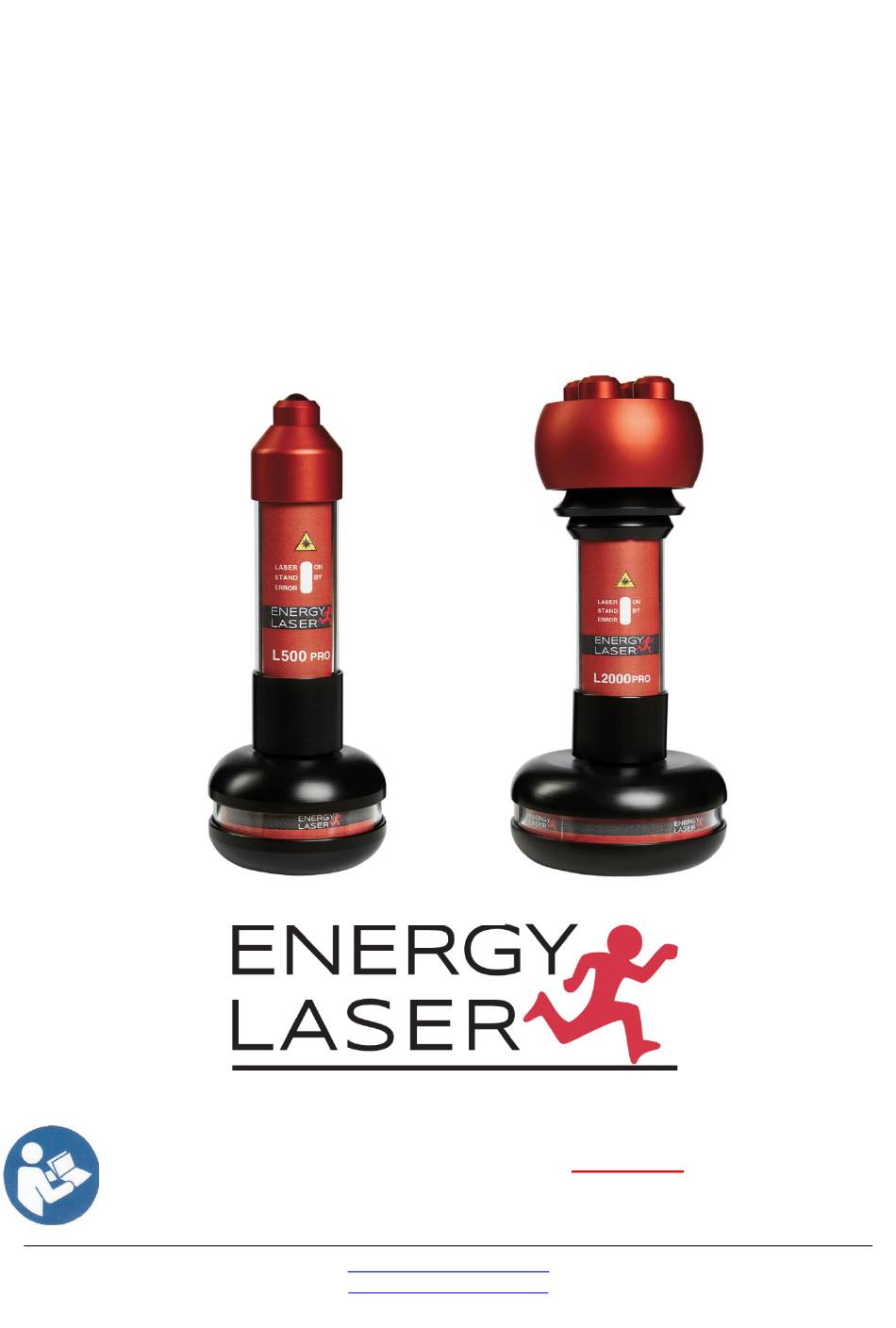

- Page 1 Quick Guide ENERGY-LASER ™ L500pro – 500 mW / 808 nm L800pro – 4 x 200 mW / 660 nm L2000pro – 4 x 500 mW / 808 nm LLLT - Low Level Laser Therapy / PBM - PhotoBioModulation NOTE: Please read this User Manual thoroughly before use.
- Page 2 Device Description ENERGY-LASER™ 1. Laser Optics 2. Laser cooling piece 3. Laser probe 4. Indicator LED light (green / yellow / red) 5. Bottom laser section 6. Li-Ion battery Laser Startup Guide 1. Use a fully charged battery (6.) and twist it clockwise onto the laser probe. Keep twisting until the laser switches on.
- Page 3 Programming and operation of the laser Start laser: 1. Install from the Google Play Store the app called ENERGY-LASER on an android smartphone or a tablet 2. Attach the battery onto the laser probe so that it switches on. Immediately, unscrew and re-attach the battery.
- Page 4 IMPORTANT NOTICE! • Never switch off the laser during programming! • Always remove the battery (6.) from laser device (3.) after use! Error Messages Low battery Yellow LED light (4.) flashing quickly → MODE: Low battery. Battery must be charged again soon.
- Page 5 Battery and charger The Li-Ion batteries are supplied un-charged and should be charged before use! 1. Connect the AC Adapter to the charger with the supplied USB cable. The Li-Ion battery is placed with the threaded part down with a little pressure into the charger's battery holder.
- Page 6 A fully charged battery will last approx.: L500pro L800pro L2000pro MAXI Li-Ion battery 3,6V / 700 mA 1½ h 45 min POWER Li-Ion battery 3,6V / 1400 mA 1½ h MEGA Li-Ion battery 3,6V / 2100 mA 2 h 25 min 1 h WARNING NOTICE! •...
- Page 7 4 x 30 = 120 4 x 150 = 600 1 Joule = 1 W per sec. / 1000 mW per sec. ENERGY-LASER™ emits a beep every 10 seconds. Each point is considered 1 cm ² Treatment Dose Wounds and skin 2 - 5 Joules per cm²...
