METLAM ML 1800 WHT Information Sheet

Information Sheet

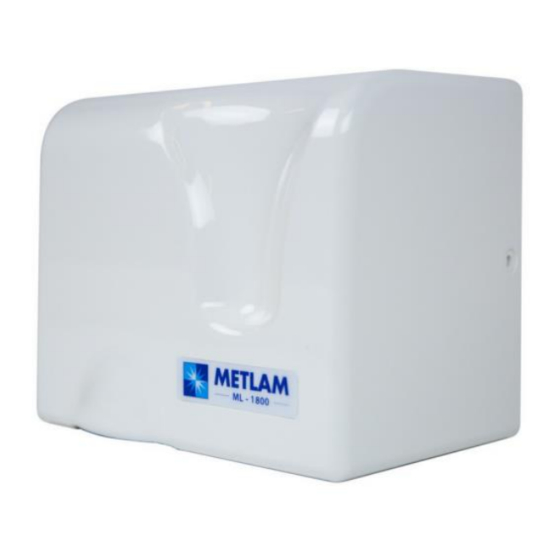

ML_1800_WHT AUTO OPERATION HAND DRYER
Description:
Casing:
Brushless Motor:
Heater Assembly:
Dryer shall deliver:
Air Speed
Air Output Temperature
Sound Level
Drying Time
Adjustable Distance Sensor
Power Cut Off
Drip Proof
Isolation
Weight
Note:
The photographs and line drawings of the products presented above are representational only.
Metlam Australia Pty Ltd reserves the right to, and from time to time, make changes and improvements in design and dimensions.
Metlam Australia Pty Ltd
OPERATING MANUAL

TECHNICAL SPECIFICATIONS

T: +61 3 5420 8800 F: +61 3 5420 8899
Automatic Operation Hand Dryer
3.0mm White High Grade Fire Retardant ABS
1/8HP, 80W, 2850 R.P.M (50Hz), 3150 R.P.M (60Hz)
Designed with 105°C thermostat
Designed with 87°C thermostat 1400-1700W
Designed with 141°C thermal cut off
3
150 CFM (255m /h)
36.9mi/hr (16.5m/s). –60Hz
32.4mi/hr (14.5m/s)—50Hz
58°C. Ambient Temp 20°C
55±3 Db
30 – 35 seconds
51mm to 330mm
60 seconds
IPX1
Class 1
3.5kg Net Weight / 3.8kg Shipping Weight
This unit is accessible compliant when installed in
accordance with AS1428.1. guidelines.
E: sales@metlam.com.au
1
www.metlam.com.au
