ADIP TEC 20070803 EN

Au départ usine l'USER est: adip et the PASSWORD installateur est: insta

Installation Guide

In accordance with the Webserver y Firmware versions: ADIP 10Y_

http://www.acie-adip.com/

Table of Contents

Need help?

Do you have a question about the ADIP and is the answer not in the manual?

Questions and answers

Summary of Contents for ACIE ADIP

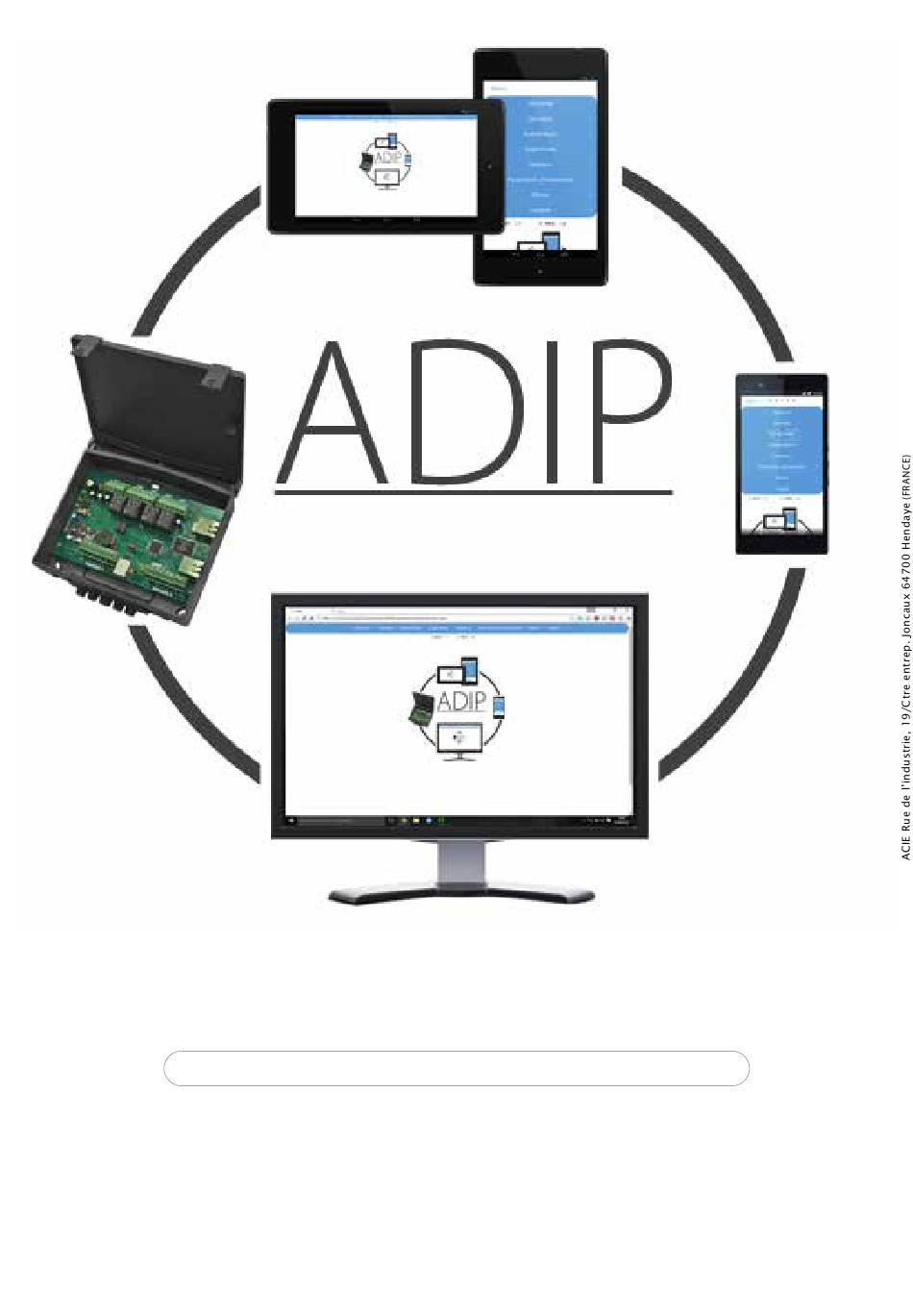

Page 1 ADIP TEC 20070803 EN Au départ usine l’USER est: adip et the PASSWORD installateur est: insta Installation Guide In accordance with the Webserver y Firmware versions: ADIP 10Y_ http://www.acie-adip.com/...
Page 2 Antipassback Anti-Timeback Degraded mode PUSH Notifications 18-20 Installation parameters IP Adressing procedure for the ADIP controller 21-22 IP Device Configuration Identification of Access point Access point Configuration Configuration of the 2 readers of the access point (pag.1/4) Inputs configuration (pag.2/4) Outputs configuration (pag.2/4)
Page 3: Table Of Contents
Delete time areas Delete access groups Firmware update (BOOTLOADER) Supervision Events General list of events 57-61 List of users present List of users missing Accessories Protection circuit WIEGAND and DATA&CLOCK: SEPRO Adaptater WIEGAND and DATA&CLOCK for USB reader ADIP Installation Guide...
Page 4 System description ADIP System Description The access system with an innovatrice architecture which avoids to use expensives centrals. A simple connection of point access controllers to the Ethernet network and/or Internet suffice to established a performance access system, reaching up to 64 readers/door.
Page 5 TCP/IP NETWORK The network is local Ethernet type, but Internet also. The IP connection must have a speed of at least 3 Mbps The devices that can be part are those below: ADIP CONTROLLERS COMPUTER (PC or MAC) TABLET (Android, iOS,...
Page 6 0012345678 T rm 2/3 T clock Data hold time µs DATA&CLOCK 13 0000012345678 T width Clock pulse width 1/3 T clock µs T clock Clock pulse rate 1000 1500 µs T total T clock Timeout read operation ADIP Installation Guide...
Page 7 • Dimensions (HxWxD): 150 x 160 x 40 mm • 2 IP connections of RJ45 type, one to connect to the network and the other to inter- connect a second ADIP controller, a video camera, etc. • 32 controllers maximum on the network (64 doors maximum) •...
Page 8 Configuration and cabling ADIP Unity - Connection bounds description Connectivity overview Vout Vout READER 2 READER 1 BATTERY RJ45 PROGRAMMING BRIDGE RJ45 NO C NC NO C NC NO C NC NO C NC Connection bounds description The access point controller must be powered...
Page 9 - off or tracking of an input. RJ45 female connector dedicated to local or Connector remote communication with a computer or RJ45 with the ADIP network. RJ45 female connector dedicated to local or Connector remote communication with a computer or RJ45 with the ADIP network.
Page 10 Configuration and cabling N-P Programmation bridge Recovering factory passwords How to recover passwords: This procedure allows you to retrieve factory passwords for the webserver for 1 minute: User: Adip Password installer: insta Password administrator: admin Password consultant: consul Description of the procedure:...
Page 11 The network connector LEDs (RJ45) indicate the connection states: Yellow : indicates network connection Green : indicates communication Electro-lock connection DIRECT CURRENT ALTERNING CURRENT NO C NC NO C NC BY 251 Diode Appropriate varistor Electric-lock Electric-lock ADIP Installation Guide...
Page 12 For the connection of the I, G and PB inputs, the 8-conductor cable of the reader or a shielded unshielded 2-conductor cable can be used 6 / 10th to 9 / 10th + 1 shielding for a maximum distance of 50m. ADIP Installation Guide...
Page 13 Forming a local area network through an Ethernet switch. In this way, it is possible to connect the maximum number of controllers (32). This network can be made wirelessly with WI-FI access points, connecting up to 2 ADIP controllers to each WI-FI access point. ADIP...
Page 14 Wire a door sensor between G-2 and C. 2 associated to input Indicate the time of the function in seconds, from 0001 to 2400 for this max opening time ADIP Next page... Installation Guide...
Page 15 1, has reached the limit of its counter. saturated Otherwise, it turns off Group counter 02 oc- Activates when one or more users, belonging to group 2, are cupied within the security zone 1. Otherwise, it turns off ADIP Next page... Installation Guide...
Page 16: Area Counters
Activates when the number of users within the security area 1 has reached the capacity limit of its counter. Otherwise, it turns off Visits [ MENU DATA vISITS Visits are temporary profile users. The access of these users is conditioned by a start date / ADIP Next page... Installation Guide...
Page 17 During this period, access permissions and denials on this controller will be decided with the local data, irrespective of area counters or antipassback. The other controllers will continue to decide on access permissions and denials, taking into account the area counters and the antipassback. ADIP Installation Guide...
Page 18 Functions description PUSH notifications App for PUSH notifications of ADIP controllers. Download the “PUSH ADIP” app from the PlayStore or AppStore first. Once downloaded, open the app. Select “Register”. This will register our device on Google and get a unique identifier, linked with our mobile device.
Page 19 Now we need to transfer the ID of our mobile device to the ADIP controller. If all goes well, the following message will appear to confirm that the ID of our mobile device has been suc- cessfully transferred to the ADIP controller. ADIP Next page... Installation Guide...
Page 20 SAVE the configuration. NOTE 1: In order to avoid the need to open the “ADIP PUSH” application every time we turn on our mobile device, it is possible to use the AUTOSTART app (available in PlayStore). AUTOSTART automatically opens applications.
Page 21 Introduce this address on the browser and VALIDATE: It is also possible to address the device name or HOSTNAME, but this method only works if the terminal and the ADIP controller are on the same network. This factory HOSTNAME is ADIP01.
Page 22 Once the language is chosen: You must choose “installer”, then a USER and PASSWORD will be requested. When it left the factory USER is: adip and the installer PASSWORD is: insta Then the main menu appears as shown in the following image:...
Page 23 PREVIOUS Click on the button to return to the previous page. ******************************** HostName DYNDNS: ******************************** UserName DYNDNS: ******************************** Client Key: Do not forget to save the changes made with If you want to Delete , press ADIP Installation Guide...
Page 24 NO MASTER to indicate that this controller is not the MASTER. Status: indicates whether the devices are located on the network. Indicates device not installed Indicates the device is localized and in communication Indicates device not located or without communication ADIP Installation Guide...
Page 25 Configuration relay : Timed --> Temporisation relay: Activation time from 1 to 240 seconds Start/Stop Follower Function: select output function Timing function: tempo of the selected output function Function input: Function Access point: Function designation: ADIP Next page... Installation Guide...
Page 26 E-mail: Select from 1 to 8 Email address: Function: select out- put function Write message Message: Do not forget to save with or delete with Press to return to the previous page ADIP Installation Guide...
Page 27 32 access points, there will be a maximum of 16 SAS. Access point 3 Outside Access point Access point 5 Inside Access point SAS time: SAS time in seconds Do not forget to save the changes made with OK to indicate correct and NOK to indicate error ADIP Installation Guide...
Page 28 MANUAL Day: Month: Year: Hours: Minutes: Seconds: Time area: Select the time zone of the region where the device is located Change summer / winter time: Do not forget to save the changes made with ADIP Installation Guide...
Page 29 This option is not useful in the case of time setting with NTP server. ADMINISTRATOR A button on the screen allows you to propagate master date / time to all slaves. PROPAGATE DATE/TIME THE MASTER TO ALL SLAVES NO MASTER to indicate that this controller is not the MASTER. ADIP Installation Guide...
Page 30 Installation parameters Register unknown users Click to activate the option: Register unknown users ADMINISTRATOR Do not forget to save the changes made with ADIP Installation Guide...
Page 31 Passwords are no longer visible. Only if one enters with the procedure of the bridge P-N (on the circuit), these passwords will be visible during 3 minutes. Other measures to strengthen against computer vulnerability. ADIP Installation Guide...
Page 32 Communication code (4 digits): 0000 INSTALLER CODE USINE Encryption code (32 digits): The Encryption Code is intended to be used with SDKs. All connected ADIPs must have the same encryption code Do not forget to save the changes made with ADIP Installation Guide...
Page 33: Data Introduction
(to 8) Security areas controlled Time tables (to 8) (to 32) Access points Readers Time areas Holidays Vacation (to 30) (to 24) (to 4) (to 32) (1,2) Time frame 1 Time frame 2 Days of the week ADIP Installation Guide...
Page 34 Button that allows you to bridge between the Users and Visits pages. This makes it easier to profile the user as a visitor. SEND TO EMAIL Button that allows the sending of an e-mail there the user and a confirmation e-mail (see next page). ADIP Next page... Installation Guide...
Page 35 Number of consumable days User Email: e-mail del usuario Confirmation email: 1 ejemplo@adip.es ssend confirmation email selec- tor. These confirmation e-mails correspond to those declared in the menu: Parámetros de instalación then submenus: Configuration of the access point page 4/4.
Page 36 Each time table can have 24 holiday days: Holiday Day 01: Month: select Day / Month Holiday Day 02: Month: select Day / Month ………….. ………….. Do not forget to save the changes made with Press to return to the previous page ADIP Installation Guide...
Page 37: Time Areas
Min: 00’ to H: 23h Min: 59’ Click to indicate days of the week. Mo √ Tu √ We √ Th √ Fr √ Sa √ Su √ Do not forget to save the changes made with ADIP Installation Guide...
Page 38: Security Areas Controlled
04: L1 √ L2 √ ………….. ………….. Each reader will be in the selected area. If a reader is not in any area, it will be out of areas. Do not forget to save the changes made with ADIP Installation Guide...
Page 39: Access Groups
(one time table per security area controlled). Also, possibility to select out of the areas. Security area controlled: Time tables: ………….. ………….. Antipassback: Oui Indicate if the group is submitted or not to the antipassback Do not forget to save the changes made with ADIP Installation Guide...
Page 40 ………….. ………….. Maximum meter capacity to 65,000 users Do not forget to save the changes made with OK to indicate correct, NOK to indicate error and NO MASTER to indicate that this controller is not the MASTER. ADIP Installation Guide...
Page 41 OK to indicate correct, USER NOK to indicate user number error, NOK to indicate access number error and NO MASTER to indicate that this controller is not the MASTER. USERS Button that allows you to bridge between the Users and Visits pages. ADIP Installation Guide...
Page 42: Free Access
In groups dedicated to free access, do not select the “Non-controlled” safety zone in any of the 8 possible ways. It is necessary to indicate a zone in which the ADIP in ques- tion is included, with the corresponding schedule.
Page 43: Possibility Of Unlocking The Antipassback Of A User
All Aceess group Select the access group: Select one of the three options for placing users of the group in the security area, out- side the security area or waiting for synchronization at the next identification. ADIP Next page... Installation Guide...
Page 44 The antipassback will be reset to the selected time of the specified day and month H: 00h Mn: 00’ Day: Month: Do not forget to save the changes made with NOK to indicate error and NO MASTER to indicate that this controller is not the MASTER. ADIP Installation Guide...
Page 45: Synchronize Data
Access point 01/04 Access point 1 in progress out of a total of 4 OK to indicate that the synchronization has successfully completed NOK to indicate synchronization error ADIP Installation Guide...
Page 46 OK to indicate correct and NO USER to indicate that the user can not find it. User id: Identifier code: Access group: Possibility of going to the previous or next user To select the e-mail: SEND Send all users to the e-mail: indicate the email ADIP Installation Guide...
Page 47: Users By Name
ADMINISTRATOR enter the text and click OK to indicate correct and NO USER to indicate that the user can not find it. User id: Nº User: Identifier code: Access group: Possibility of going to the next user ADIP Installation Guide...
Page 48 17 √ 18 √ 19 √ 20 √ 21 √ 22 √ 23 √ 24 √ 25 √ 26 √ 27 √ 28 √ 29 √ 30 √ Possibility of going to the previous or next table ADIP Installation Guide...
Page 49: Time Areas
Mn: 59’ Period 2 From H: 00h Mn: 00’ To H: 23h Mn: 59’ Mo √ Tu √ We √ Th √ Fr √ Sa √ Su √ Possibility of going to the previous or next area ADIP Installation Guide...
Page 50: Security Areas Controlled
27: L1 √ L2 √ 28: L1 √ L2 √ 29: L1 √ L2 √ 30: L1 √ L2 √ 31: L1 √ L2 √ 32: L1 √ L2 √ Possibility of going to the previous or next area ADIP Installation Guide...
Page 51: Access Group
Security area controlled Time tables Security area controlled Time tables Security area controlled Time tables Security area controlled Time tables Outside Security area controlled Time tables Antipassback: Yes Possibility of going to the previous or next group ADIP Installation Guide...
Page 52: Access Points
28 IP or DynDns: Port: ***.***.***.*** ***** *************************** 29 IP or DynDns: Port: ***.***.***.*** ***** *************************** 30 IP or DynDns: Port: ***.***.***.*** ***** *************************** 31 IP or DynDns: Port: ***.***.***.*** ***** *************************** 32 IP or DynDns: Port: ADIP Installation Guide...
Page 53: Delete Delete Events
Year: indicate the date Press to delete and to delete permanently Automatic deletion of old events Maximum number of days saved: (max. 99 days and 00 to cancel) Do not forget to save the changes made with ADIP Installation Guide...
Page 54: Delete Data
Delete Time tables Select time tables Press to delete and to delete permanently Delete Time areas Select time areas Press to delete and to delete permanently Delete Access groups Select access group Press to delete and to delete permanently ADIP Installation Guide...
Page 55: Firmware Update (Bootloader)
Indicate on Local File, the location of XXXXX.ipl file (for example; ADIP_1_1_E.ipl). Indicate on Block Size, the fixed value 512. Enter in the ADIP menu Delete / Firmware Update (BOOTLOADER) and execute the firmware update process. We only have 12 seconds to press Put and start the bootloader.
Page 56 Acces type for this point: select, then NO MASTER to indicate that this controller is not the MASTER. Access type for all points; Normal Universal (without restriction, for all the users) Forbidden Normal access Acces type for all points: select, then ADIP Installation Guide...
Page 57 To select the users: 00000 From user: indicate the first user number 65000 To user: indicate the last user number To select the user group: Access Group: indicate the group To select the reader: Reader: indicate the reader ADIP Next page... Installation Guide...
Page 58 SEND E-mail: indicate the email √ Send ALL movements automatically every week to the e-mail: 1 example@adip.fr (every Monday at 00:00) √ Send ALL movements automatically every month to the e-mail: 1 example@adip.fr (all the 1st of the month at 02:00)
Page 59 Activation output nb3 from an input of another device, using the output func- 65227 tion; Output of a configurable input Activation output nb4 from an input of another device, using the output func- 65228 tion; Output of a configurable input ADIP Next page... Installation Guide...
Page 60 65316 Activation output group counter 02 saturated 653… …………………………………. 653… …………………………………. 65375 Activation output group counter 32 occupied 65376 Activation output group counter 32 saturated 65380 Authorized access group 25 653... …………………………………. 65387 Authorized access group 32 ADIP Next page... Installation Guide...
Page 61 65408 Sending users e-mail correctly 65409 E-mail sending of presents in progress 65410 Error of sending e-mail of presents 65411 Sending the e-mail of presents correctly 65412 Missing e-mail in progress 65413 Missing e-mail sending error 65414 Correctly sending e-mails ADIP Installation Guide...
Page 62: List Of Users Present
Visualisation of the users present in the site Access Group: indicate the groupe SEND To send to the e-mail 1 example@adip.fr To show the last 10 users, the previous 10 or the following 10: NO MASTER to indicate that this controller is not the MASTER. 65000...
Page 63: Protection Circuit Wiegand And Data&Clock: Sepro
C0 : CLOCK / WIEGAND0 Internal Power supply 12V CC/100 Tu In the event of use external power supply for Power supply the reader, connect the ground or negative Enroller Reader voltage to (-) terminal 12V CC ADIP Installation Guide...
