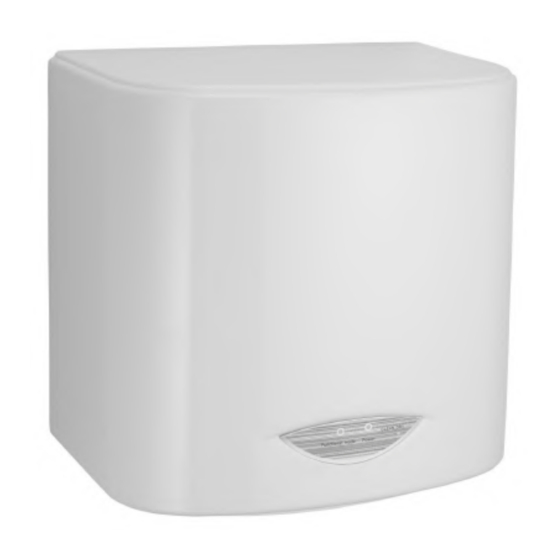

Summary of Contents for Ecodri Uni-blade
-
Page 2: Table Of Contents
User Manual Ecodri Uni-blade Hand Dryer HDUK-3009 Warni ng........1 Characteristics......2 Parts...........2 I nstallation Methods....3-4 How to Use........5 Maintenance......6 Technical Parameters....7 Troubleshooting......7 • Thank you for purchasing our automatic high-speed hand dryer • Please read this manual carefully before installation and use... -
Page 3: Warning
Warning Please read the following warning notice before installation to ensure correct use For safety reasons please use this product correctly to avoid physical injury or loss. Ignoring th ese warning notes may lead to faulty installation and increase risk of physical injury , loss or failure of the hand dryer. -
Page 4: Characteristics
Characteristics Automatically turns on when hands are placed in the sensor area. No touch operation is both convenient and hygienic. After 60 seconds of continuous activation the hand dryer will automatically shut off to prevent misuse The heater can be turned off to maximise energy efficiency Bladed air outlet rapidly scrapes moisture off the hands leaving them fully dry in seconds Parts... -
Page 5: Installation Methods
Installation Methods Notice before installation All electrical matters should be performed by a professional electrician or electrically competent person according to local regulations. Please install a leakage circuit breaker to protect against electric shock. Please use a leakage circuit breaker whose rated power is 10A,AC230V Guide for installing hand dryer... - Page 6 Installation of the main body • Remove the 2 screws from the cover, then detach the cover from the main body • Pass the power cable through the power cable entry hole of the main body, then hang the main body of the hand dryer on the mounting plate Cover •...
-
Page 7: How To Use
How to Use Press the power switch to "ON" Place the hands under the body of the hand d ryer in the area of the sensor window to activate the air from t he air outlet. Once the hands are dry, remove the hands from the sensor window area to stop the unit from blowing air. -
Page 8: Maintenance
Maintenance Do not splash water inside the hand dryer during servicing and maintenance as this may cause electric shock and/or faults Please turn off the power source to the hand dryer before performing any servicing or maintenance Cover cleaning For cleaning the cover of dirt and marks, turn off the power source, then use a soft cloth to wipe the cover clean. -
Page 9: Technical Parameters
Technical Parameters Specification Item HDUK-3009 Model Voltage AC220V, 50/60Hz Rated Power 1200W Heater Power Resistance wire heating (650W) Motor AC Brush Motor Turbo fan Temperature fuse, thermostat, over current fuse Protective Device Working Temp. 0-40C Size (mm) 250mm x 235mm x 165mm Weight (kg) 4.5kg roubleshooting...
