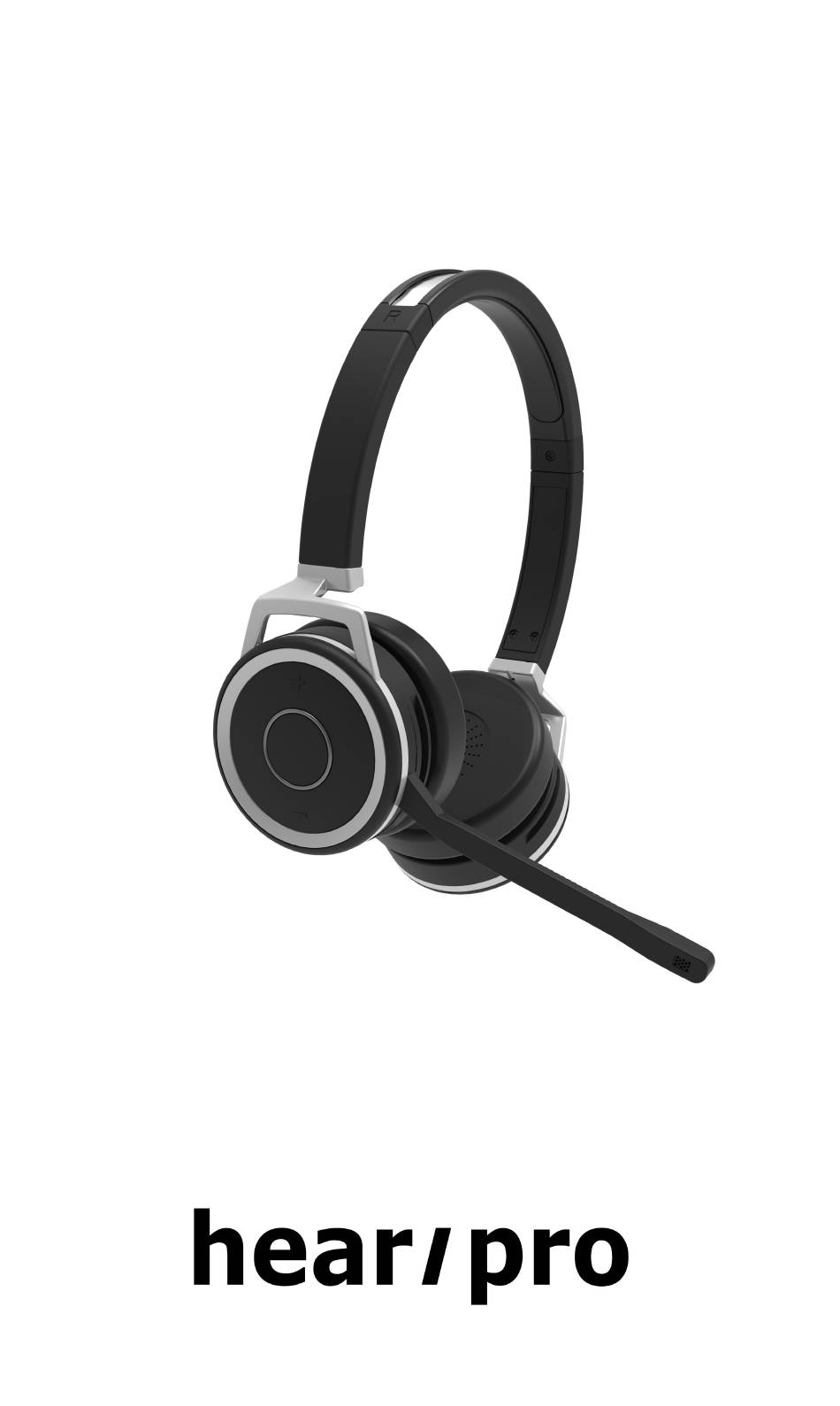

- Page 1 Hear/Pro 665x Mono/Stereo User Manual www.hearpro.se sales@hearpro.se...
- Page 2 Made in China MODEL: 665x Mono/Stereo FCC ID: 2AC67-9605 BT Declaration of Conformity can be found on www.hearpro.se...
- Page 3 1. WELCOME......4 2. HearPro 665x BT OVERVIEW....5 ENGL 2.1 HEADSET OVERVIEW 2.2 OPTIONAL ACCESSORIES 3. HOW TO WEAR.......7 3.1 STEREO 3.2 ADJUST THE HEADBAND 3.3 POSITION THE MICROPHONE 3.4 STORING THE MICROPHONE 4. HOW TO CHARGE THE BATTERY..10 5. HOW TO CONNECT....11 5.1 CONNECT TO PC (USING BT 100U) 5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) 6.
- Page 4 1. WELCOME ENGL Thank you for using the 665x Mono/Stereo Headset. We hope you will enjoy it! 665x MONO/STEREO HEADSET FEATURES Connects to PC via BT 100U Bluetooth adapter Connects to mobile devices via Bluetooth Integrated Busylight Rotate the microphone boom-arm back to...
- Page 5 2. 665x MONO/STEREO OVERVIEW ENGL 2.1 HEADSET Adjustable headband Volume up Power on/Power off/Busylight indicator Multi-function button Volume down Microphone Bluetooth boom-arm indicator On/off/connect USB charging port switch Base Charge Point...
-
Page 6: Included Accessories
2.2 INCLUDED ACCESSORIES ENGL Charging Base (Optional) USB cable Carry pouch... -
Page 7: How To Wear
3. HOW TO WEAR 3.1 RIGHT WEARING STYLE The 665x Mono/Stereo can be worn only on the right. -
Page 8: Adjust The Headband
3.2 ADJUST THE HEADBAND ENGL Adjust the headband to find the most comfortable fit. 3.3 POSITION THE MICROPHONE It is recommended to position the microphone close to your mouth (0.5 inches). - Page 9 The microphone is bendable for personal preference. ENGL 3.4 STORING THE MICROPHONE When listening to music or outdoors, the microphone boom-arm can be rotated back to the vertical position near the headband.
- Page 10 4. HOW TO CHARGE THE BATTERY ENGL The headset battery will charge when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device. It takes approx.3 hours to charge the battery.
-
Page 11: How To Connect
5. HOW TO CONNECT ENGL 5.1 CONNECT TO PC (USING BT 100U) 1. Ensure the headset is switched on. 2. Plug the BT 100U dongle into a USB port on your PC. The headset and BT 100U are already pre-connected. -
Page 12: Connect To Mobile Device
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH) ENGL 1. Wear the headset. 2. Hold (2 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will flash blue. 3. Follow the voice guided instructions to connect. -
Page 13: How To Use
6. HOW TO USE 6.1 EVERYDAY USE ENGLISH ENGL Volume up Power on/Power off/Busylight indicator Multi-function button Volume down Bluetooth indicator On/off/Connect USB charging port switch Base Charging Point... - Page 14 ACTION LED STATUS FUNCTION Green Light flash twice in Headset on Slide the On switch succession Red Light flash twice in Headset off Slide the off switch succession Pairing Pair Button Slide the Blue Light flash Blue Light flash twice in Pairing Successfully succession Blue Light flash 1 time per...
-
Page 15: Multiple Call Handling
6.2 MULTIPLE CALL HANDLING The headset can accept and handle multiple calls at the same time. ACTION FUNCTION End current call and Tap the Multi- answer incoming call function button Press and hold (2 secs) the Put current call on hold Multi-function and answer incoming call button... -
Page 16: How To Care For Your Headset
7. SUPPORT 7.1 FAQ View the FAQs on www.hearpro.se 7.2 HOW TO CARE FOR YOUR HEADSET Always store the headset with the power off and safely protected. Avoid storage at extreme temperatures (above 55°C or below -10°). This can shorten battery life and may adversely affect the headset. - Page 17 8. TECHNICAL SPECIFICATIONS 665x MONO/STEREO HEADSET V4.2 Bluetooth Version: 158 g Headset weight: Stereo headset: L 155 mm x Headset dimensions: W 36 mm x H 180 mm Wear Style: Headband 10 hours Talk Time: Charging Time: 3 hours Charging Base:...
- Page 18 BLUETOOTH ADAPTER SPECIFICATION (BT 100U) PC connection: USB 2.0 Bluetooth version: Bluetooth range: Up to 30m (100 feet), Class 1 Bluetooth profiles: A2DP (V1.2), Hands free profile (V1.6) Simultaneous Bluetooth connection: Skype for Business/3CX Phone Support Soft Phone: HD voice (wideband), A2DP Bluetooth audio bandwidth Bluetooth audio bandwidth: Visual indicators:...
