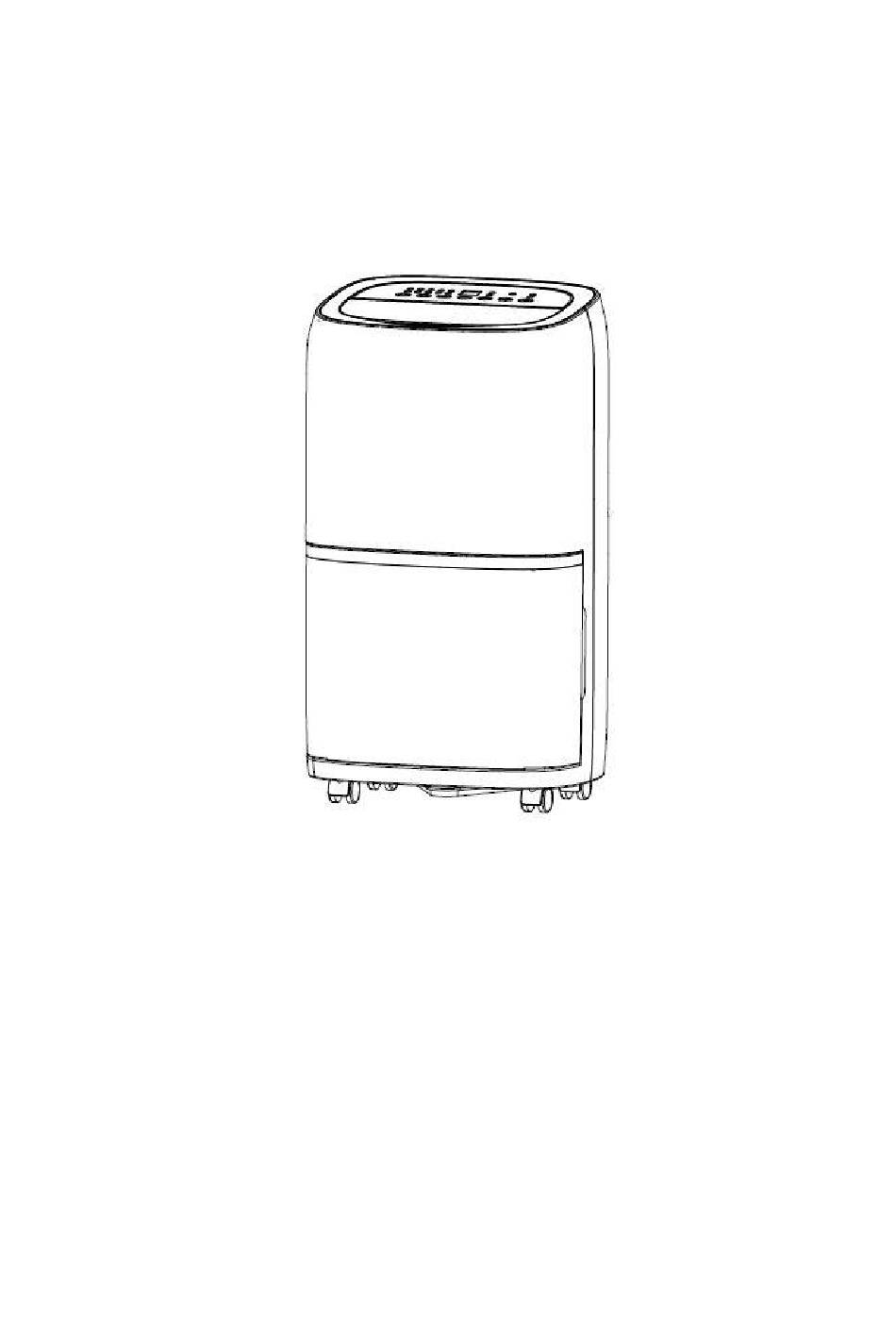

- Page 1 Instruction Manual OL-270R Please read this manual carefully before use and keep it for further reference. The dehumidifier removes excess moisture from the air, creating a comfortable environment for your home and office. Its compact design allows you to move it easily...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions.................2 Specification......................3 Appliance Overview....................4 Installation and Storage..................5 Operating Instructions....................6 Water Drainage.......................8 Cleaning and Maintenance..................9 Trouble Shooting Guide..................11 Disposal Information....................12... -
Page 3: Important Safetyinstructions
IMPORTANT SAFETYINSTRUCTIONS Please read the operating instructions carefully before using your dehumidifier for the first time. Hazardous electric current! Work on the electrical components must only be carried out by an authorized specialist company! Hazardous electric current! Before any work on the device, remove the mains plug from the mains socket! Danger! The device is not a toy and does not belong in the hands of children. -
Page 4: Specification
Don’t try to repair, dismantle or remold such appliance, or it may make some damage. Even the change of power cord should be done by special qualified person. SPECIFICATIONS Model OL-270R 28 Pints/day (80 ,60%RH) ℉ Dehumidify Capacity 45 Pints/day (86 ,80%RH) ℉... -
Page 5: Appliance Overview
Auto defrosting, Low temperature operation: When the room temperature is between 5 ℃ and 12 ℃ , machine will defrost automatically for every 30 minutes; when the room temperature is between 13℃ and 20℃, machine will defrost automatically for every 45 minutes. APPLIANCE OVERVIEW Control panel Air outlet... -
Page 6: Installation And Storage
Handle Filter gridding (Air inlet) Back panel INSTALLATIONAND STRORAGE Install the unit on hard flat floor, keep the room ventilated. Leave at least 20cm space around the unit before the connection of the drainage hose. 1. Pull the rubber adaptor of the water pipe out from the drainage port of rear panel. 2. -
Page 7: Operating Instructions
NOTE: 1. Do not block the drainage port or water pipe. 2. Do not fold the water pipe or make it 1.5m higher than the bottom of unit. 3. Do not replace the rubber adaptor of the water pipe, it’s the special accessory for the unit only, other adaptor may not fit the unit. - Page 8 Water-full indicator: When water tank is full, it shows red and the unit will bizz for 20 times. At that time, the machine stops and all the buttons are locked unless users empty and recover the water tank. Timer indicator: When timer function is working, the indicator light shows green.
- Page 9 Instructions of Button Operation: Power button: Press this button, the indicator light shows blue and the machine starts to work in normal mode with default humidity setting of 60%RH and low fan speed. The fan starts working and the compressor will begin to work 3 seconds later..
-
Page 10: Water Drainage
WATER DRAINAGE I. Water Tank: When the water tank is full, the water full indicator shows red to warn that the tank has reached the maximal capacity. II. How to empty the water tank: 1. Pull the water tank at the back of the machine slightly, the water tank is forced to move out. -
Page 11: Cleaning And Maintenance
IV. Continuous drainage: 1. Open the cover on the back of the dehumidifier. 2. Take out the water tank 3. Insert a PVC pipe with 9.5mm (inner diameter 9.5mm), and the recommended length is 300mm; put the other side into a container, such as a bucket. NOTE: PVC pipe is not included in the package, users need to buy separately. - Page 12 Air filter: The unit is equipped with washable air filter. Clean the washable filter every 2 weeks. If the filter is blocked with dust, the efficiency will reduce. How to clean the filter 1. Take out the filter 2. Clean the filter Immerse it gently into warm water (about 40℃) with a neutral detergent and rinse it, then dry it thoroughly in a ventilated...
-
Page 13: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE BEFORE CALLING FOR SERVICE This list includes common occurrences that are not the result of a defect in workmanship or materials. Problem Possible Cause Solution Connect to a power outlet and No power supply switch on Drain water tank and reset your Water full indicator... -
Page 14: Disposal Information
DISPOSAL INFORMATION Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available.
