Summary of Contents for GH Trading Mill

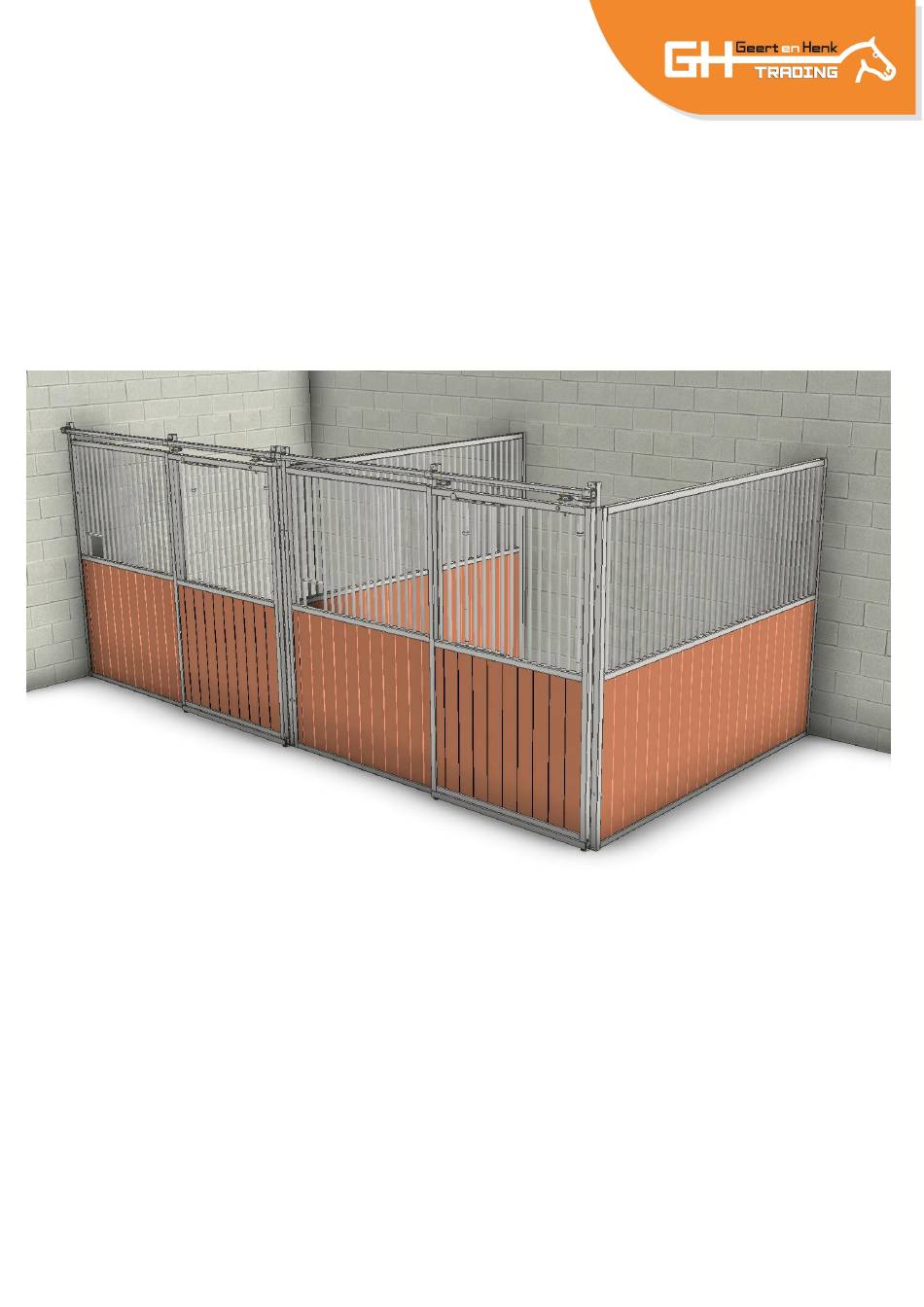

- Page 1 Installation manual profi stables Model Mill (sliding door) Model Schengen (hinged door)
-
Page 2: Read First
Lees eerst: 1. Hoewel we de frames na het verzinken controleren, kan het voorkomen dat er nog scherpe druppels zink aan de frames zitten. Gebruik rubberen handschoenen om je handen te beschermen. Voor je de paarden in de stal doet, controleer altijd op eventuele scherpe druppen. - Page 3 Install the door guide under the front.
- Page 4 Connection to the wall: - 2x Mounting angle 40x40 - 2x Hex wood screw M10x80 - 2x Plug M12 - 2x Carriage bolt M10x60 - 2x Hex nut M10 - 4x Washer (ring) M10 Connection to the wall: - 2x Mounting angle 40x40 Connection separation middle: - 2x Hex wood screw M10x80 - 2x Carriage bolt M10x180...
- Page 5 Connect the fronts with the separations. Tips: - Install first the top carriage bolt. The frames don't fall anymore. - Sometimes there is some sink in the hole. Use a drill 10-12 mm to remove the sink. - Door opening is 1300 mm Tools: wrench 17 mm, hammer Bolts: 1300...
- Page 6 Connect the rail to the front Tip: use the self locking hex nut for the rail holders. Tools: wrench 13 mm, 2x wrench 17 mm, wrench 19 Bolts: - Hex bolt M10x80 - Self locking hex nuts - Washers - Rail locker with M12 bolts and hex nut - wrench 19 Connect the frames to the floor.
- Page 7 Connection separation corner: - 2x Carriage bolt M10x120 - 2x Hex nut M10 - 2x Washer (ring) M10...
- Page 8 Bolts for the rail Tip: look at the detail drawing Tools: wrench 24 mm, inbus - Hex screw M16 - Hex nut M 16 - Washer M16 - Hinge M16 Bar to lock door - Bar - Ring + inbus - Steel spring Option: minidoor in the sliding door.
- Page 9 Install the sliding door. Tip: First put in the rollers in the rail. Tools: wrench 13, wrench 24 mm, inbus, level Bolts: - Rollers - Rail stopper Adjust the door height, locker, bar locker height, stopper until door opens and closes smootly.
- Page 10 Installation of the planks (wood or plastic) Tips: - Carrefull with the cutting of the boards. Use a secure and sharp saw! - Drill a hole in the plank were the bolts are. Tools: tape measure, cross cut table, cordless drill with cross bit.
- Page 11 Attachment 1: Profi front model Schengen Install horizontal plank. Tools: wrench 13, drill 12 mm Bolts: - M8x50 - Head nut Install horizontal plank. Tools: wrench 13, drill 12 mm Bolts: - M8x50 - Head nut...
- Page 12 Attachment 1: Profi front model Schengen Finger locker Tools: Cordless drill with cross bits Bolts: Self drilling cross screw 3.5x28 mm Hinges Tools: wrench 24 mm, inbus Bolts: - Hinge 16 mm - Nuts 16 mm - Washers 16 mm Connect the frames to the floor.
