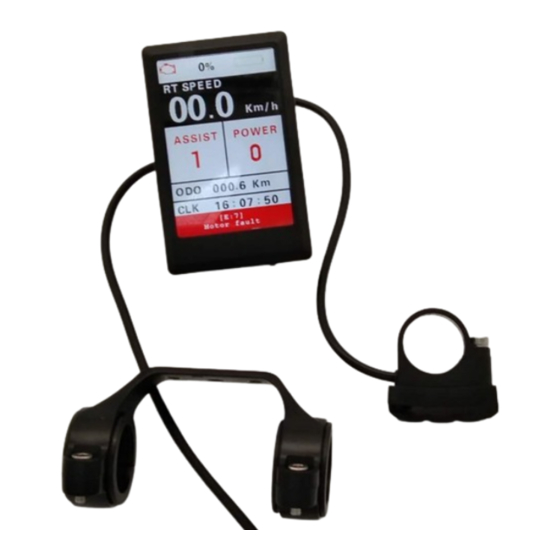

Summary of Contents for MQCON Science and Technology H6

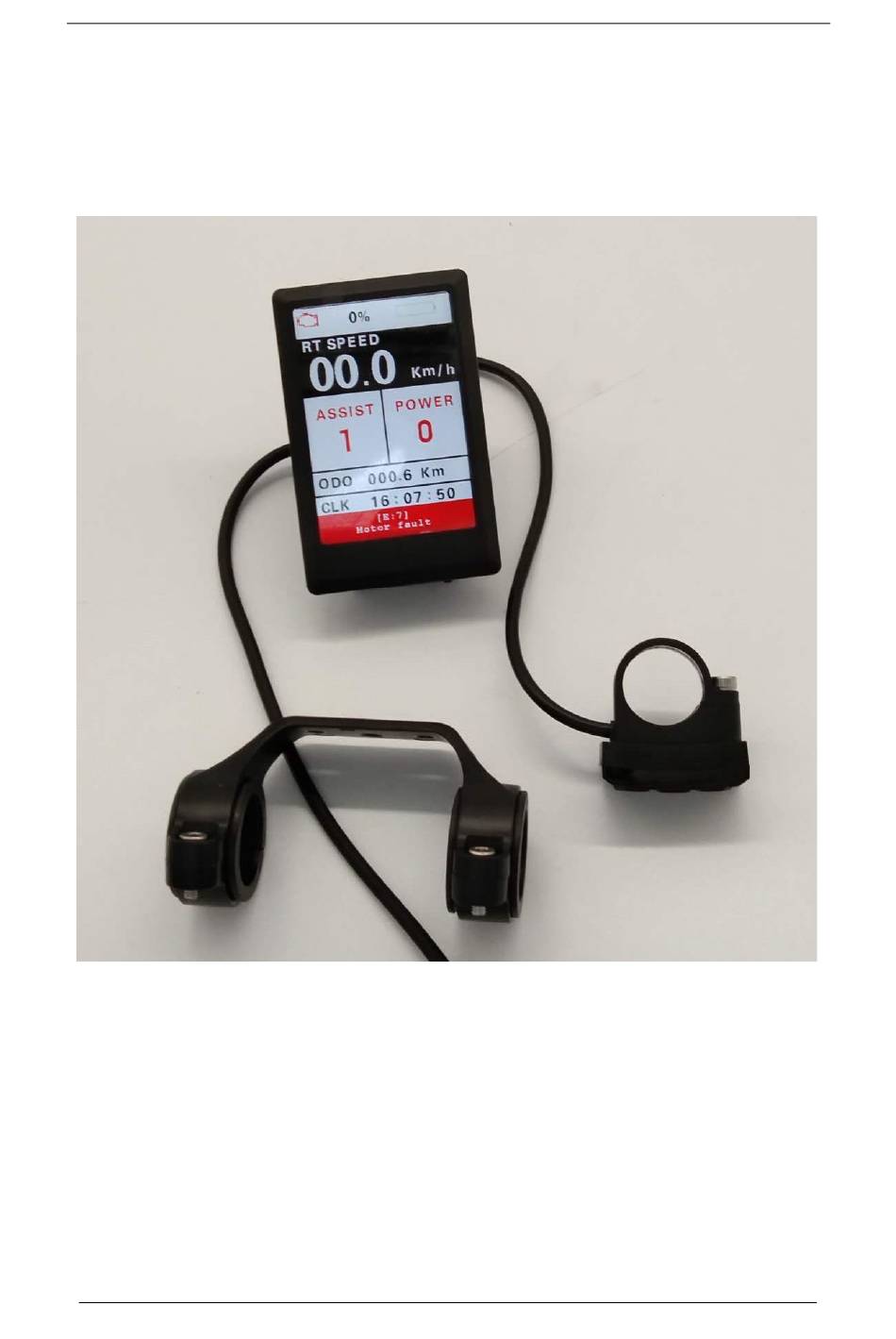

- Page 1 www.mqcon.com LCD Display Manual - 1 -...
-
Page 2: Basic Information
www.mqcon.com 1．Basic information Ø 3.2 inch color TFT screen Ø 48V/60V/72V power supply Ø Normal operating temperature of the instrument -20～65°C Ø The instrument case is ABS, black, transparent lens is ordinary acrylic, high hardness, with protective film Ø Size： - 2 -... - Page 3 www.mqcon.com 2．LCD display instructions Power display speed mode Assist gear Power TRIP, ODO, WH/KM RCG / motor temperature/CLK brand Ø Battery display: 5 segments of power indication, the customer can select the percentage display and the display of the actual voltage value Ø...
-
Page 4: Key Function
www.mqcon.com Ø Power display: power real-time display Ø Speed display：unit Km / h km per hour, MPH miles per hour; Ø Assist gear position: according to the pas mode, 0~9 files can be displayed. Ø Motor temperature: monitor motor temperature in real time; Ø... - Page 5 www.mqcon.com In the main interface, long press “Up” to enter the switch day/night mode, the LCD tone will be adjusted to night mode, and the headlights will be turned on automatically. Ø gear position set： In the main interface, short press “Up” and “Down” to switch gears. Ø...
- Page 6 www.mqcon.com 2). In the setting interface, the leftmost red cursor arrow is used to indicate the position of the currently set parameter. 3). Short press the M key, the setting parameter value on the right side of the current line turns red, enter the parameter modification mode, short press the up and down keys to change the setting parameters, press the M key again, exit the current parameter modification mode, enter the parameter switching/selection mode, short Press the up/down keys to...
- Page 7 www.mqcon.com Basic setting interface Item Description Motor tire diameter, fixed in inches, independent of other "system" wheel settings battery Select according to the battery voltage currently used start password This menu can't be entered or the button is invalid. advance Advanced settings, submenu entry factory Restore factory settings parameters...
- Page 8 www.mqcon.com remark：Due to the upgrade of the company's products, the display content of the product you get may be different from the manual, but it will not affect your normal use. - 8 -...
